N/C Spotting Drills - HSS / Cobalt
82°, 90° & 120° Point Angles
- High speed steel or cobalt
- Designed with a narrow chisel edge for quick starting
- Constant web allows for resharpening without the need for web thinning
- Right hand
| 82° Point Angle | 90° Point Angle | 120° Point Angle | |||||
| Body Dia |
Flute Length |
OAL | COBALT Part Number |
HSS Part Number |
COBALT Part Number |
HSS Part Number |
COBALT Part Number |
| 1/4 | 3/4 | 2-1/2 | KEO-38143 | KEO-32140 | KEO-32143 | KEO-33140 | KEO-33143 |
| 1/4 | 3/4 | 4 | KEO-38145 | KEO-32142 | KEO-32145 | KEO-33142 | KEO-33145 |
| 1/4 | 3/4 | 6 | KEO-38147 | KEO-32144 | KEO-32147 | KEO-33144 | KEO-33147 |
| 3/8 | 1-1/8 | 3-1/8 | KEO-38383 | KEO-32380 | KEO-32383 | KEO-33380 | KEO-33383 |
| 3/8 | 1-1/8 | 5 | KEO-38385 | KEO-32382 | KEO-32385 | KEO-33382 | KEO-33385 |
| 3/8 | 1-1/8 | 7 | KEO-38387 | KEO-32384 | KEO-32387 | KEO-33384 | KEO-33387 |
| 1/2 | 1-3/8 | 3-3/4 | KEO-38123 | KEO-32120 | KEO-32123 | KEO-33120 | KEO-33123 |
| 1/2 | 1-3/8 | 6 | KEO-38125 | KEO-32122 | KEO-32125 | KEO-33122 | KEO-33125 |
| 1/2 | 1-3/8 | 8 | KEO-38127 | KEO-32124 | KEO-32127 | KEO-33124 | KEO-33127 |
| 5/8 | 1-5/8 | 4-3/8 | KEO-38583 | KEO-32580 | KEO-32583 | KEO-33580 | KEO-33583 |
| 5/8 | 1-5/8 | 7 | KEO-38585 | KEO-32582 | KEO-32585 | KEO-33582 | KEO-33585 |
| 5/8 | 1-5/8 | 9 | KEO-38587 | KEO-32584 | KEO-32587 | KEO-33584 | KEO-33587 |
| 3/4 | 1-7/8 | 5 | KEO-38343 | KEO-32340 | KEO-32343 | KEO-33340 | KEO-33343 |
| 3/4 | 1-7/8 | 8 | KEO-38345 | KEO-32342 | KEO-32345 | KEO-33342 | KEO-33345 |
| 3/4 | 1-7/8 | 10 | KEO-38347 | KEO-32344 | KEO-32347 | KEO-33344 | KEO-33347 |
| 1 | 2-1/4 | 6 | KEO-38103 | KEO-32100 | KEO-32103 | KEO-33100 | KEO-33103 |
| 1 | 2-1/4 | 8 | KEO-38105 | KEO-32102 | KEO-32105 | KEO-33102 | KEO-33105 |
| 1 | 2-1/4 | 10 | KEO-38107 | KEO-32104 | KEO-32107 | KEO-33104 | KEO-33107 |

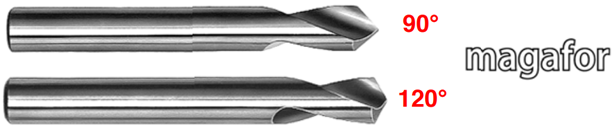

HSS M35 5% Cobalt-Standard Length
- Very narrow chisel edge. Short flute and stubby length provide precise spotting prior to drilling.
- “H6” tolerance ensures perfect centering of the web and cutting edge.
- Point Angle 90° can combine centering and chamfering into one operation.
- Point Angle 120° best when follow-on drill has a 118° drill point, precise hole location.
| Size | Dec. | OAL | Cutting Length |
90° Angle Part Number |
120° Angle Part Number |
| 2 mm | .0787 | 1-5/8 | 5/16 | MAG-1950200 | MAG-1960200 |
| 3 mm | .1181 | 2 | 7/16 | MAG-1950300 | MAG-1960300 |
| 4 mm | .1575 | 2-1/16 | 1/2 | MAG-1950400 | MAG-1960400 |
| 5 mm | .1969 | 2-3/8 | 5/8 | MAG-1950500 | MAG-1960500 |
| 6 mm | .2362 | 2-5/8 | 3/4 | MAG-1950600 | MAG-1960600 |
| 1/4” | .2500 | 2-5/8 | 7/8 | MAG-1950635 | MAG-1960635 |
| 8 mm | .3150 | 3-1/8 | 1 | MAG-1950800 | MAG-1960800 |
| 3/8” | .3750 | 3-1/2 | 1 | MAG-1950952 | MAG-1960952 |
| 1/2” | .5000 | 4 | 1-3/8 | MAG-1951270 | MAG-1961270 |
| 5/8” | .6250 | 4-1/2 | 1-3/8 | MAG-1951587 | MAG-1961587 |
| 3/4” | .7500 | 5-1/8 | 1-5/8 | MAG-1951905 | MAG-1961905 |
| 1” | 1.000 | 5-1/2 | 1-3/4 | MAG-1952540 | MAG-1962540 |
