External Grooving Toolholders

EXTERNAL GROOVING TOOLHOLDERS
Mono Block Type
  • Mono block style toolholder offers high rigidity
  • Multi-functional! Groove and turn with the same holder
  • Available in right and left hand (right hand shown)
  • When depth is deeper than insert length, 1 corner type is recommended
Prices are pulled from our database in real time. Press Add button to see product price.
Max
Groove

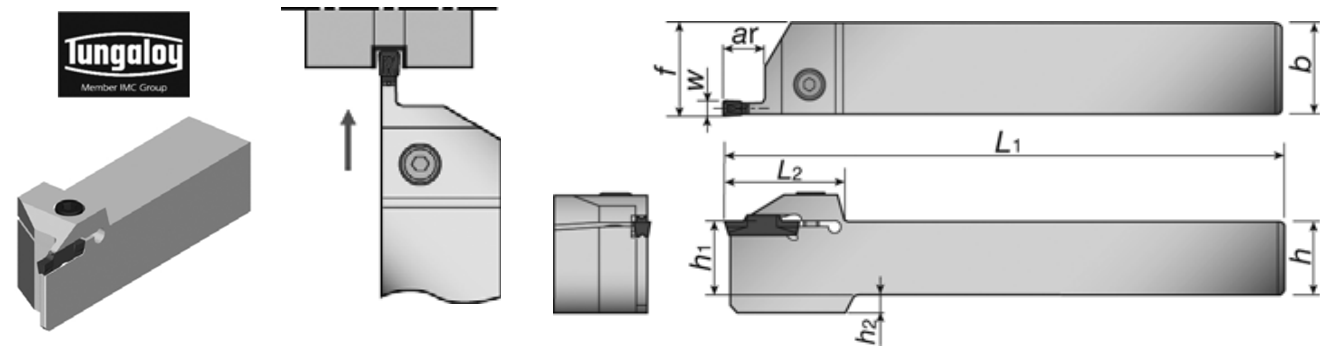

Depth (ar)		 Dimensions (Inch)
Tungaloy Ref # h1 b h L1 f(2) W h2 L2 Insert
Seat Size		 RIGHT HAND
Part Number		 LEFT HAND
Part Number		 Clamping
Screw
CTER/L10-2T08 0.315 0.625 0.625 0.625 4.50 0.629 0.079 0.157 1.299 2 TO-6880617
TO-6880618
CTER/L12-2T08 0.315 0.750 0.750 0.750 5.00 0.754 0.079 - 1.299 2 TO-6880619
TO-6880620
CM5x0.8x20-A
CTER/L16-2T08 0.315 1.000 1.000 1.000 6.00 1.004 0.079 - 1.299 2 TO-6880621
TO-6880622
CM5x0.8x25-A
CTER/L10-2T12 0.472 0.625 0.625 0.625 4.50 0.629 0.079 0.157 1.260 2 TO-6880623
TO-6880624
CM5x0.8x16-A
CTER/L12-2T12 0.472 0.750 0.750 0.750 5.00 0.754 0.079 - 1.260 2 TO-6880625
TO-6880626
CM5x0.8x20-A
CTER/L16-2T12 0.472 1.000 1.000 1.000 6.00 1.004 0.079 - 1.260 2 TO-6880627
TO-6880628
CM5x0.8x25-A
CTER/L10-2T17 0.669 0.625 0.625 0.625 4.50 0.629 0.079 0.157 1.457 2 TO-6880629
TO-6880630
CM5x0.8x16-A
CTER/L12-2T17 0.669 0.750 0.750 0.750 5.00 0.774 0.079 - 1.457 2 TO-6880631
TO-6880632
CM5x0.8x20-A
CTER/L16-2T17 0.669 1.000 1.000 1.000 6.00 1.024 0.079 - 1.457 2 TO-6880633
TO-6880634
CM5x0.8x25-A
CTER/L10-3T09 0.354 0.625 0.625 0.625 4.50 0.637 0.118 0.157 1.260 3 TO-6880635
TO-6880636
CM5x0.8x16-A
CTER/L12-3T09 0.354 0.750 0.750 0.750 5.00 0.762 0.118 - 1.260 3 TO-6880637
TO-6880638
CM5x0.8x20-A
CTER/L16-3T09 0.354 1.000 1.000 1.000 6.00 1.012 0.118 - 1.260 3 TO-6880639
TO-6880640
CM5x0.8x25-A
CTER/L10-3T20 0.787 0.625 0.625 0.625 4.50 0.637 0.118 0.157 1.516 3 TO-6880641
TO-6880642
CM5x0.8x16-A
CTER/L12-3T20 0.787 0.750 0.750 0.750 5.00 0.762 0.118 - 1.516 3 TO-6880643
TO-6880644
CM5x0.8x20-A
CTER/L16-3T20 0.787 1.000 1.000 1.000 6.00 1.012 0.118 - 1.516 3 TO-6880645
TO-6880646
CM5x0.8x25-A
CTER/L16-3T25 0.984 1.000 1.000 1.000 6.00 1.012 0.118 - 1.752 3 TO-6880647
TO-6880648
CM5x0.8x25-A
CTER/L10-4T10 0.394 0.625 0.625 0.625 4.50 0.645 0.157 0.157 1.260 4 TO-6880649
TO-6880650
CM6x1x16-A
CTER/L12-4T10 0.394 0.750 0.750 0.750 5.00 0.770 0.157 - 1.260 4 TO-6880651
TO-6880652
CM6x1x20-A
CTER/L16-4T10 0.394 1.000 1.000 1.000 6.00 1.020 0.157 - 1.260 4 TO-6880653
TO-6880654
CM6x1x25-A
CTER/L10-4T25 0.984 0.625 0.625 0.625 4.50 0.645 0.157 0.157 1.772 4 TO-6880655
TO-6880656
CM6x1x16-A
CTER/L12-4T25 0.984 0.750 0.750 0.750 5.00 0.770 0.157 - 1.772 4 TO-6880657
TO-6880658
CM6x1x20-A
CTER/L16-4T25 0.984 1.000 1.000 1.000 6.00 1.020 0.157 - 1.772 4 TO-6880659
TO-6880660
CM6x1x25-A
CTER/L20-4T25 0.984 1.250 1.250 1.250 7.00 1.270 0.157 - 1.772 4 TO-6880661
TO-6880662
CM6x1x25-A
