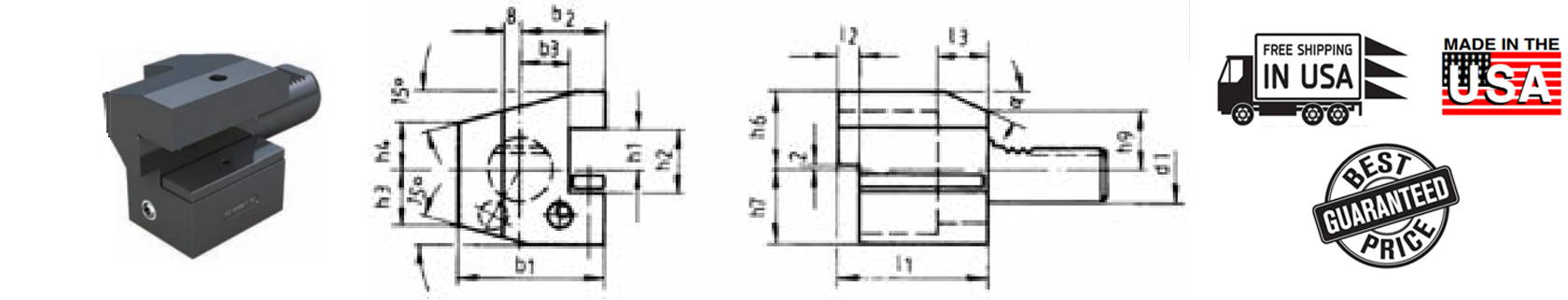

Form C3 Square Tool Right-Hand Inverted

Turning Toolholder – Form C3
Square Tool Right-Hand Inverted

Inch sizes can be ordered online. For mm size please call to order.
Prices are pulled from our database in real time. Press Add button to see product price.

d1	b1	b2	b3	h1 in	h1 mm	h2	h3	h4	h6	h7	h9	L1	L2	L3	α	Part Number
16	43	24	13	1/2	12	17	15	15	22	20	18	44	5	20	30	CNC86 33.1612
20	52	27	13	5/8	16	22	19	19	30	25	23	55	7	30	30	CNC86 33.2016
20	65	40	26	5/8	16	22	19	19	30	25	23	55	7	30	30	CNC86 33.2016.1
25	58	33	19	5/8	16	22	22.5	22.5	30	25	25	55	7	30	30	CNC86 33.2516
30	70	35	17	3/4	20	29	26	22	38	35	28	70	10	30	25	CNC86 33.3020
40	85	42.5	20.5	1	25	34	35	30	48	42.5	42	85	12.5	30	30	CNC86 33.4025
50	100	50	25.5	1.25	32	41	42	35	60	50		100	16	40		CNC86 33.5032
60	125	62.5	32.5	1.25	32	41	46	42.5	62.5	62.5		125	16	40		CNC86 33.6032
80	160	80	41	1.5	40	53	60	55	80	80		160	20	40		CNC86 33.8040
