External Threading Inserts
T SERIES LAYDOWN - EXTERNAL THREADING INSERTS Prices are pulled from our database in real time. Press Add button to see product price.

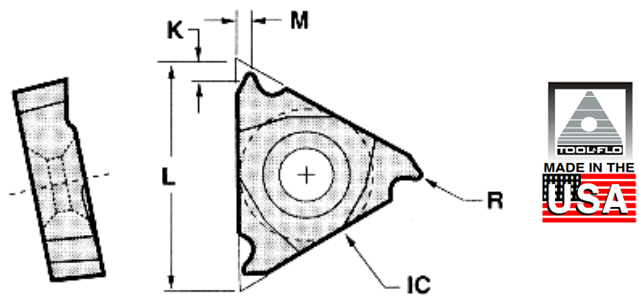

| IF THREADING | ||||||||||
| TPI If Threading |
IC Both Threading & Grooving |
L Both Threading & Grooving |
M | K | R | For Use With Holder |
Left or Right |
Grade AT22 Part Number |
Grade GP22 Part Number |
Grade GP50 Part Number |
| 16-48 | 3/8 | 0.65 | 0.031 | 0.024 | 0.003 | 16ER | RIGHT | T-16ERA60A2 | T-16ERA60G22 | T-16ERA60G50 |
| 16EL | LEFT | T-16ELA60A2 | - | - | ||||||
| 8-48 | 3/8 | 0.65 | 0.059 | 0.043 | 0.003 | 16ER | RIGHT | T-16ERAG60A2 | T-16ERAG60G22 | T-16ERAG60G50 |
| 16EL | LEFT | T-16ELAG60A2 | - | - | ||||||
| 8-14 | 3/8 | 0.65 | 0.059 | 0.043 | 0.007 | 16EL | LEFT | T-16ELG60A2 | - | - |
| 5-7 | 1/2 | 0.87 | 0.098 | 0.067 | 0.016 | 22ER | RIGHT | - | - | T-22ERN60G50 |
