Internal Threading Inserts

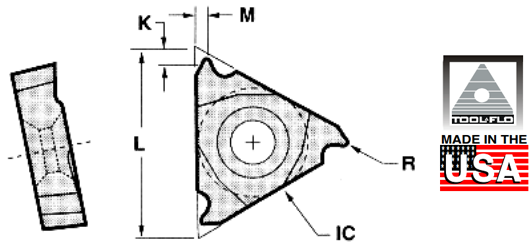

T SERIES LAYDOWN - INTERNAL THREADING INSERTS

Prices are pulled from our database in real time. Press Add button to see product price.

			IF THREADING
TPI If Threading	IC Both Threading & Grooving	L Both Threading & Grooving	M	K	R	For Use With Holder	Left or Right	Grade AT22 Part Number	Grade GP22 Part Number	Grade GP50 Part Number
16-48	3/8	0.65	0.031	0.024	0.003	16NR	RIGHT	-	-	T-16NRA60G50
16-48	3/8	0.65	0.031	0.024	0.003	16NL	LEFT	-	-	T-16NLA60G50
8-48	3/8	0.65	0.059	0.043	0.003	16NR	RIGHT	T-16NRAG60A2	T-16NRAG60G22	T-16NRAG60G50
8-48	3/8	0.65	0.059	0.043	0.003	16NL	LEFT	-	-	T-16NLAG60G50
8-14	3/8	0.65	0.059	0.043	0.007	16NR	RIGHT	-	T-16NRG60G22	T-16NRG60G50
8-14	3/8	0.65	0.059	0.043	0.007	16NL	LEFT	-	-	T-16NLG60G50
5-7	1/2	0.87	0.098	0.067	0.01	16NR	RIGHT	-	T-22NRN60G22	T-22NRN60G50
5-7	1/2	0.87	0.098	0.067	0.01	16NL	LEFT	-	-	T-22NLN60G50
