"Hornet" Small Hole Indexable Drills & Inserts - OTM Stinger Style

HORNET DRILLS
HORNET™ SMALL DIAMETER INDEXABLE DRILLS
OTM® “Stinger™” Style
Flood Coolant
FEATURES:
  • For smaller diameter holes
  • Drill diameter range: 0.484 to 0.844
  • Up to 2” drill depth
  • Flood coolant
  • Made in USA
Prices are pulled from our database in real time. Press Add button to see product price.

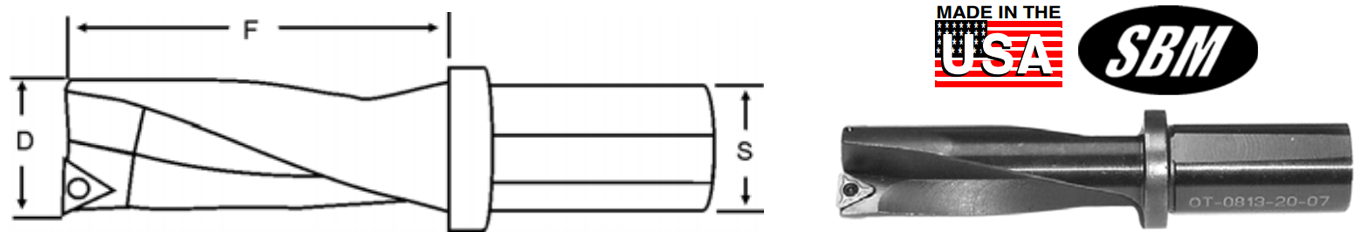

D F S Indexable Small Hole Drill Accessories
Drill Dia Drill Depth Shank Dia Part Number Screw Wrench
0.484 1.500 0.500 OT-0484-15-05
SC-12
TX-206
0.500 1.500 0.500 OT-0500-15-05
0.516 1.500 0.500 OT-0516-15-05
0.531 1.500 0.500 OT-0531-15-05
0.547 1.500 0.500 OT-0547-15-05
0.563 1.500 0.500 OT-0563-15-05
0.578 1.500 0.500 OT-0578-15-05
0.594 1.500 0.500 OT-0594-15-05
0.609 1.500 0.500 OT-0609-15-05
0.625 1.500 0.500 OT-0625-15-05
0.641 1.500 0.500 OT-0641-15-05
0.656 1.500 0.500 OT-0656-15-05
0.672 1.500 0.500 OT-0672-15-05
0.688 1.500 0.500 OT-0688-15-05
0.703 1.500 0.500 OT-0703-15-05
0.719 2.000 0.625 OT-0719-20-06
SC-11
TX-207
0.734 2.000 0.625 OT-0734-20-06
0.75 2.000 0.625 OT-0750-20-06
0.766 2.000 0.625 OT-0766-20-06
0.781 2.000 0.625 OT-0781-20-06
0.797 2.000 0.750 OT-0797-20-07
0.813 2.000 0.750 OT-0813-20-07
0.828 2.000 0.750 OT-0828-20-07
0.844 2.000 0.750 OT-0844-20-07
*OTM & “Stinger” are trademarks of Manchester OTM
INSERTS
Prices are pulled from our database in real time. Press Add button to see product price.
INSERTS
Drill Dia IC T R H Cermet 5NU
CT525 P01-P15		 Coated
23CU 2025		 Coated
40CU 4025		 Uncoated
13U 13A
0.484 to 0.703 0.156 0.078 0.031 0.087 US-151
US-152
US-153
US-154
0.719 to 0.844 0.218 0.093 0.031 0.098 US-161
US-162
US-163
US-164

INSERTS GRADES
5NU Super Cermet for semi-roughing to finishing in a wide variety of materials.
Works at higher cutting speeds, providing excellent surface finishes.
13U Sub micron grade for use in High Temp/High Nickel alloys as well as cast iron and aluminum.
23CU Coated Carbide grade for low speed applications and operations requiring toughness. First choice in stainless steels
40CU Excellent overall Steel and Stainless Steel grade over a wide range, exhibiting good heat and wear resistance.
3015 For cast iron.

CUTTING & GRADE INFORMATION
Material Condition Insert Grade SFM FPT
Aluminum - 5N 1000+ .002-.006
13 900-1800 .002-.006
Cast Iron, gray - 5N 500-900 .001-.003
13 300-500 .001-.003
23C 300-500 .001-.003
Cast Iron, nodular (ductile) - 5N 500-700 .001-.003
13 350-450 .001-.0022
23C 350-450 .001-.0022
Cast Iron, malleable - 5N 400-800 .001-.003
13 300-500 .001-.003
23C 300-500 .001-.003
Steel, low carbon annealed 5N 600-900 .0012-.0018
40C 500-800 .0012-.0018
Steel, low carbon carburized, 35-50 Rc 5N 300-400 .0012-.0018
40C 250-350 .0012-.0018
Steel, medium carbon 17-32 Rc 5N 500-700 .0012-.003
40C 400-600 .0012-.003
Tool Steel annealed 5N 350-450 .001-.0015
35-50 Rc 5N 150-250 .0007-.0012
4130, 4140, 4150 Annealed 5N 500-700 .0012-.003
40C 400-600 .0012-.003
6150 Annealed 5N 500-600 .0012-.0015
40C 400-600 .0012-.0015
Stainless Steel 300 Series 23C 300-500 .0012-.0015
40C 400-600 .0012-.0015
Stainless Steel 400 Series 23C 400-600 .0012-.0015
40C 500-700 .0012-.0015
High Temp Alloys - 13 100-175 .0005-.0008
Inconel 718 - 13 150-250 .0015-.0025
Titanium Alloys - 13 150-250 .0005-.001
