COOLANT INDUCED TOOLHOLDERS
For mounting drills on machine tools & machining centers where there is no provision for feeding coolant through the machine spindle. Features:
For mounting drills on machine tools & machining centers where there is no provision for feeding coolant through the machine spindle. Features:
- Add performance and life to cutting tools
- Reduced wear means higher consistency and tighter tolerances
- All holders come complete with coolant connection
- 750 SFM/200 PSI on “O” rings
- Coolant induced collars and replacement parts available

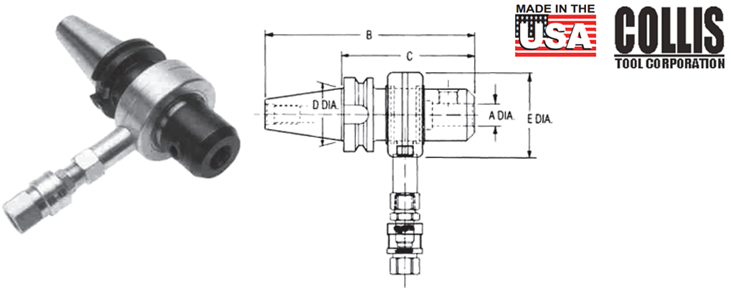

CAT V-Flange Shank | ||||||
Shank | A Hole Size | B Dim | C Proj. | D | E Dia. | Part Number |
CAT 40 | 3/4 | 7.13 | 4.44 | 1.75 | 2.83 | C40-75CIH444-C |
CAT 40 | 1 | 8.68 | 6.00 | 1.75 | 3.59 | C40-10CIH600-C |
CAT 40 | 1-1/4 | 8.38 | 5.69 | 1.75 | 3.59 | C40-12CIH569-C |
CAT 50 | 3/4 | 8.56 | 4.56 | 2.75 | 2.83 | C50-75CIH456-C |
CAT 50 | 1 | 10.00 | 6.00 | 2.75 | 3.59 | C50-10CIH600-C |
CAT 50 | 1-1/4 | 9.69 | 5.69 | 2.75 | 3.59 | C50-12CIH569-C |
CAT 50 | 1-1/2 | 9.75 | 5.75 | 2.75 | 3.96 | C50-15CIH575-C |
BT Shank | ||||||
BT 30 | 3/4 | 6.74 | 4.56 | 1.25 | 2.83 | B30-75CIH456-C |
BT 40 | 3/4 | 7.01 | 4.44 | 1.75 | 2.83 | B40-75CIH444-C |
BT 40 | 1-1/4 | 8.26 | 5.69 | 1.75 | 3.59 | B40-12CIH569-C |
