Tungaloy Indexable Drills
Coolant Through
Features:
- Exceptional reliability
- Uses high positive XPMT inserts- Produces a great finish!
- Manufactured from H-13 steel for greater tool strength
- Economical-4 cutting edges per insert!
- 3 different coolant ports
- Reduce inventory- two insert grades cut everything!
- Made in the USA!
Drill Dia: 0.500” to 2.000”
Drill Depths: 1” to 6” Prices are pulled from our database in real time. Press Add button to see product price.

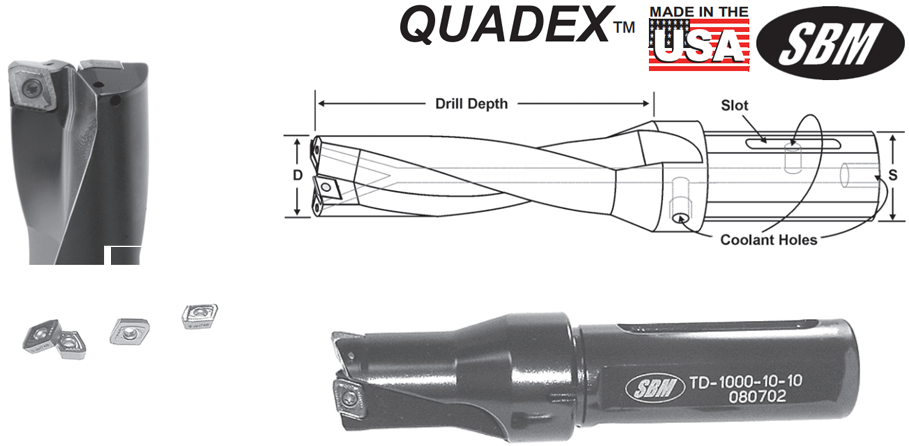

| D | S | Drill Depth 1.00” | Drill Depth 2.00” | Drill Depth 3.00” | Drill Depth 4.00” and Over | |
| Drill Dia. | Shank Size | Part Number | Part Number | Part Number | Flute Len. | Part Number |
| 0.500 - 0.562 Drill Diameter- 0.169 Insert I.C. | ||||||
| 0.500 | 0.750 | - | TD0500-2075-169 | - | - | - |
| 0.531 | 0.750 | TD0531-1075-169 | TD0531-2075-169 | - | - | - |
| 0.562 | 0.750 | TD0562-1075-169 | TD0562-2075-169 | - | - | - |
| 0.625 Drill Diameter- 0.203 Insert I.C. | ||||||
| 0.625 | 0.75 | TD0625-1075-203 | TD0625-2075-203 | - | - | - |
| 0.687 - 0.812 Drill Diameter- 0.236 Insert I.C. | ||||||
| 0.687 | 1.00 | TD0687-1010-236 | TD0687-2010-236 | TD0687-3010-236 | - | - |
| 0.750 | 1.00 | TD0750-1010-236 | TD0750-2010-236 | TD0750-3010-236 | - | - |
| 0.812 | 1.00 | TD0812-1010-236 | TD0812-2010-236 | TD0812-3010-236 | - | - |
| 0.875 - 1.000 Drill Diameter- 0.276 Insert I.C. | ||||||
| 0.875 | 1.00 | TD0875-1010-276 | TD0875-2010-276 | TD0875-3010-276 | - | - |
| 0.937 | 1.00 | TD0937-1010-276 | TD0937-2010-276 | TD0937-3010-276 | - | - |
| 1.000 | 1.00 | TD1000-1010-276 | TD1000-2010-276 | TD1000-3010-276 | 4” | TD1000-4010-276 |
| 1.031 - 1.250 Drill Diameter- 0.335 Insert I.C. | ||||||
| 1.031 | 1.25 | - | TD1031-2012-335 | TD1031-3012-335 | 4” | TD1031-4012-335 |
| 1.062 | 1.25 | - | - | TD1062-3012-335 | 4” | TD1062-4012-335 |
| 1.125 | 1.25 | - | TD1125-2012-335 | TD1125-3012-335 | 4” | TD1125-4012-335 |
| 1.187 | 1.25 | TD1187-1012-335 | - | TD1187-3012-335 | 4” | TD1187-4012-335 |
| 1.250 | 1.25 | TD1250-1012-335 | TD1250-2012-335 | TD1250-3012-335 | 4” | TD1250-4012-335 |
| 1.312 - 1.625 Drill Diameter- 0.441 Insert I.C. | ||||||
| 1.312 | 1.25 | TD1312-1012-441 | TD1312-2012-441 | TD1312-3012-441 | 4” | TD1312-4012-441 |
| 1.375 | 1.25 | - | TD1375-2012-441 | TD1375-3012-441 | 4” | TD1375-4012-441 |
| 1.437 | 1.25 | - | TD1437-2012-441 | TD1437-3012-441 | 4” | TD1437-4012-441 |
| 1.500 | 1.25 | - | TD1500-2012-441 | TD1500-3012-441 | 4” | TD1500-4012-441 |
| 1.562 | 1.25 | - | - | - | 4” | TD1562-4012-441 |
| 1.625 | 1.25 | TD1625-1012-441 | - | TD1625-3012-441 | 4” | TD1625-4012-441 |
| 1.687 - 2.000 Drill Diameter- 0.591 Insert I.C. | ||||||
| 1.687 | 1.25 | - | TD1687-2012-591 | TD1687-3012-591 | - | - |
| 1.750 | 1.25 | - | TD1750-2012-591 | TD1750-3012-591 | - | - |
| 1.750 | 1.50 | - | - | - | 4” | TD1750-4015-591 |
| 1.750 | 1.25 | - | - | - | 5” | TD1750-5012-591 |
| 1.750 | 1.50 | - | - | - | 5” | TD1750-5015-591 |
| 1.812 | 1.25 | - | TD1812-2012-591 | TD1812-3012-591 | 4” | - |
| 1.875 | 1.25 | TD1875-1012-591 | - | TD1875-3012-591 | 4” | TD1875-4012-591 |
| 1.937 | 1.25 | - | - | TD1937-3012-591 | 4” | TD1937-4012-591 |
| 2.000 | 1.25 | TD2000-1012-591 | TD2000-2012-591 | TD2000-3012-591 | 4” | - |
| 2.000 | 1.50 | - | - | - | 4” | TD2000-4015-591 |
| 2.000 | 1.25 | - | - | - | 5” | TD2000-5012-591 |
