TUNGALOY® INDEXABLE INSERTS
INSERT FEATURES:
  • High positive XPMT inserts
  • Increased insert thickness and new edge honing increases tool life.
  • Economical! Four cutting edges per insert!
  • 3 grades cut everything!
Note: When using inserts with DW chip breaker for high feed drilling set feed rate to 1.5x standard feed rate
Prices are pulled from our database in real time. Press Add button to see product price.

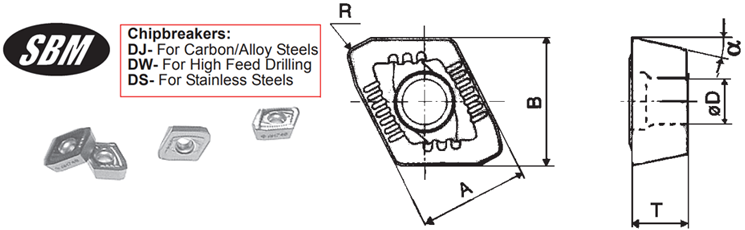

DJ Chipbreaker AH740 DS Chipbreaker AH120 DS Chipbreaker AH725
Drill Dia I. C. T Length Tungaloy Reference No. For Steel, Stainless, HiTemp Alloys For non-ferrous, Stainless, Hi Temp Alloys For Steel, Alloy steel (High Feed, Alum) Screws Wrench
0.500 to 0.562 0.169 0.063 0.177 XPMT040104R TO-169-AH740
TO-169-AH120
TO-169-AH725
SC-03
TX-06F
0.625 0.203 0.094 0.213 XPMT050204R TO-203-AH740
TO-203-AH120
TO-203-AH725
SC-04
TX-06F
0.687 to 0.812 0.236 0.118 0.276 XPMT06X308R TO-236-AH740
TO-236-AH120
TO-236-AH725
SC-05
TX-07F
0.875 to 1.000 0.276 0.142 0.323 XPMT07H308R TO-276-AH740
TO-276-AH120
TO-276-AH725
SC-06
TX-08F
1.031 to 1.2500 0.335 0.156 0.390 XPMT08T308R TO-335-AH740
TO-335-AH120
TO-335-AH725
SC-07
TX-09F
1.312 to 1.625 0.441 0.187 0.492 XPMT110412R TO-441-AH740
TO-441-AH120
TO-441-AH725
SC-08
TX-15F
1.687 to 2.000 0.591 0.219 0.634 XPMT150512R TO-591-AH740
TO-591-AH120
TO-591-AH725
SC-09
TX-20F
RECOMMENDED CUTTING CONDITIONS
Troubleshooting Cutting Speed Vc (SFM) Series L/D Feed (ipr)
Work Materials First Choice High Feed HighSpeed Breakage Wear Surface Finish 0.500 - 0.687 0.750 -1.000 1.062 -1.250 1.312 -2.000
Low Carbon Steels (C<3) JIS SS400,SM490,S25C,etc. DS AH725 - - DW AH725 - DW AH120 525-1050 2D,3D .0015 - .005 .002 - .004 .002 - .004 .002 - .004
4D,5D .001 - .002 .002 - .004 .002 - .004 .002 - .004
Carbon Steels (C<3) JIS S45C,S55C,etc. DJ AH725 DW AH725 DS AH120 DW AH725 DJ T1015 DW AH740 250-800 2D,3D .002 - .005 .002 - .006 .002 - .006 .003 - .007
4D,5D .002 - .003 .002 - .004 .002 - .005 .003 - .006
Low alloy steels JIS SCM415,etc. DS AH725 - - DW AH725 - DW AH725 525-800 2D,3D .002 - .003 .002 - .005 .002 - .005 .002 - .006
4D,5D .002 - .003 .002 - .005 .002 - .005 .002 - .006
Alloy Steels JIS SCM440,SCr420,etc. DJ AH725 DW AH725 DS AH120 DW AH725 DJ T1015 DW AH725 250-650 2D,3D .002 - .005 .002 - .006 .002 - .006 .003 - .007
4D,5D .002 - .003 .002 - .004 .002 - .005 .003 - .006
Stainless Steels Austenitic JIS SUS304,SUS316,etc. DS AH725 - - DS AH725 - DW AH120 325-650 2D,3D .001 - .003 .002 - .004 .002 - .005 .002 - .005
4D,5D .001 - .003 .002 - .004 .002 - .005 .002 - .005
Stainless steels Martensitic and Ferritic JIS SUS430,SUS416,etc. DS AH725 - - DS AH725 - DW AH120 325-725 2D,3D .0015 - .003 .002 - .004 .002 - .005 .002 - .005
4D,5D .001 - .003 .002 - .004 .002 - .005 .002 - .005
Stainless Steels Precipitation Hardening JIS SUS630,etc. DS AH725 - - DS AH725 - DW A H120 250-400 2D,3D .002 - .003 .002 - .003 .002 - .004 .002 - .004
4D,5D .002 - .003 .002 - .003 .002 - .004 .002 - .004
Gray Cast Irons JIS FC250,etc. DJ T1015 DJ AH725 - DJ AH725 - DW AH740 250-800 2D,3D .002 - .005 .002 - .006 .002 - .007 .003 - .008
4D,5D .002 - .004 .002 - .005 .002 - .006 .003 - .006
Ductile Cast Irons JIS FCD700,etc. DJ T1015 DJ AH725 - DJ AH725 - DW AH740 250-650 2D,3D .002 - .005 .002 - .006 .002 - .007 .003 - .008
4D,5D .002 - .004 .002 - .005 .002 - .006 .003 - .006
Aluminum Alloys JIS A2017,ADC12,etc. DW AH725 - - - - - 650-1300 2D,3D .004 - .006 .006 -.008 .006 -.008 .006 -.010
4D,5D .003 - .005 .005 - .006 .005 - .006 .005 - .008
Super Alloys DS AH120 - - - - - 100-200 2D,3D .002- .004 .002- .004 .002- .005 .002- .006
4D,5D .002- .004 .002- .004 .002- .004 .002- .005
Titanium DS AH120 - - - - - 100-200 2D,3D .002- .004 .002- .004 .002- .004 .002- .004
4D,5D .002- .004 .005 - .004 .002- .003 .002- .003
INDEXABLE DRILL TROUBLESHOOTING TIPS:
Inserts Chipping or Breaking-
  • Inadequate coolant supply- Check coolant volume and pressure
  • Speeds and feeds being used are incorrect- Adjust speed and feeds according to tables provided
  • Insert screws may be damaged- Check screw head and thread for nicks and burrs. Do not overtighten screws
  • Inserts not seating properly- Make sure the inserts are seated properly in the pocket bottoms. Clean insert pockets whenever inserts are replaced or indexed making sure no nicks or burrs are present.
  • Misaligned drill/offcenter drill- Check toolholder TIR. Replace or adjust TIR as necessary.
  • Drill not seating properly in tool holder, spindle or turret- Make sure there are no nicks, burrs or chips in tool shank and/or holder. Use a feeler gauge to check parting line between tool shank and socket.
  • Too much tool deflection or lack of tool rigidity due to too much tool overhang- Check if tool can be held shorter.
Rough Cutting Action-Tool Makes Rumbling Noise and Deflects-
  • Excessive thrust, Feed rate too high- Lower feed rate and/or increase speed.
  • Chips being recut- Add more coolant flow.
