Komet Quatron Inserts

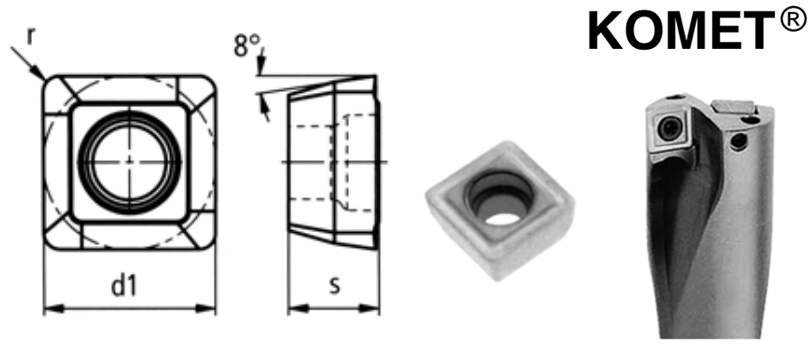

INDEXABLE DRILL INSERTS
For KOMET® Quatron Drills
GRADES:
Grade BK84 - Coated C5 Inserts for Drilling Steels, Cast Steels and 400 Series Stainless
Grade 7930 -TialN coated carbide on p40 base with extremely high wear resistence. med to high cutting speed for rough and finish and with interrupt cut. For non-alloy steel, cast steel, die steel rust-proof and stainless steel
CHIPBREAKERS:
Chipbreaker 01 - For good chip control
Chipbreaker 13 - For Chip Control Prices are pulled from our database in real time. Press Add button to see product price.
Grade BK84 - Coated C5, Chipbreaker 01

ISO Code	Drill Dia	IC	T	R	KOMET Ref. Number	Part Number	Screws	Wrench
SOEX050204-01	0.562-0.687	0.219	0.094	0.016	W83 13000.01	KOM-219-BK84-01 Add	KOM-N0056041 Add	KOM-6IP Add
SOEX060306-01	0.703-0.843	0.250	0.125	0.024	W83 18000.09	KOM-250-BK84-01 Add	KOM-N0057553 Add	TX-208 Add
SOEX07T308-01	0.875-1.062	0.313	0.141	0.031	W83 23000.01	KOM-313-BK84-01 Add	KOM-N0057571 Add	KOM-8IP Add
SOEX090408-01	1.109-1.281	0.375	0.172	0.031	W83 32000.15	KOM-375-BK84-01 Add	KOM-N0057261 Add	TX-215 Add
SOEX120508-01	1.312-1.750	0.500	0.203	0.031	W83 44000.18	KOM-500-BK84-01 Add	KOM-N0057301 Add	KOM-20IP Add

Grade 7930 - TIALN COATED, Chipbreaker 01

ISO Code	Drill Dia	IC	T	R	KOMET Ref. Number	Part Number	Screws	Wrench
SOEX050204-01	0.562-0.687	0.219	0.094	0.016	W83 13000.01	KOM-219-7930-01 Add	KOM-N0056041 Add	KOM-6IP Add
SOEX060306-01	0.703-0.843	0.250	0.125	0.024	W83 18000.09	KOM-250-7930-01 Add	KOM-N0057553 Add	TX-208 Add
SOEX07T308-01	0.875-1.062	0.313	0.141	0.031	W83 23000.01	KOM-313-7930-01 Add	KOM-N0057571 Add	KOM-8IP Add
SOEX090408-01	1.109-1.281	0.375	0.172	0.031	W83 32000.15	KOM-375-7930-01 Add	KOM-N0057261 Add	TX-215 Add
SOEX120508-01	1.312-1.750	0.500	0.203	0.031	W83 44000.18	KOM-500-7930-01 Add	KOM-N0057301 Add	KOM-20IP Add

Grade BK84 - Coated C5, Chipbreaker 13

ISO Code	Drill Dia	IC	T	R	KOMET Ref. Number	Part Number
SOEX050204-13	0.562-0.687	0.219	0.094	0.016	W83 13000.02	KOM-219-BK84-13 Add
SOEX060306-13	0.703-0.843	0.250	0.125	0.024	W83 18000.10	KOM-250-BK84-13 Add
SOEX07T308-13	0.875-1.062	0.313	0.141	0.031	W83 23000.02	KOM-313-BK84-13 Add
SOEX090408-13	1.109-1.281	0.375	0.172	0.031	W83 32000.17	KOM-375-BK84-13 Add
SOEX120508-13	1.312-1.750	0.500	0.203	0.031	W83 44000.19	KOM-500-BK84-13 Add
