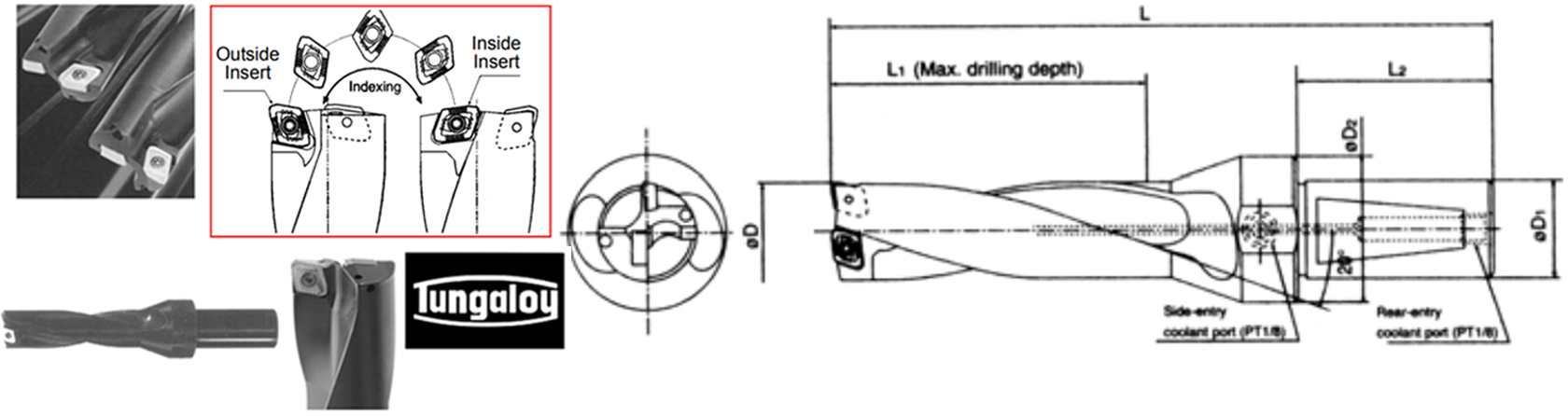

Tungaloy - TDX Indexable Drills & Inserts

INDEXABLE DRILLS
Coolant Through
FEATURES:
  • Extended drilling capability
  • Ideally balanced drill design for less vibration and chattering
  • Exceptional reliability- Increased insert thickness and new edge honing increases tool life
  • Higher tool economy- four cutting edges per insert can be economically utilized by indexing
  • Unique chip pocket effectively removes chips from center
Prices are pulled from our database in real time. Press Add button to see product price.
D D1 D2 L1 L2 L Part Number Applicable Insert Screw Wrench
0.500 0.75 1.25 1.500 1.60 4.100 TO-TDXU0500-03
XPMT040104R SC-03
TX-06F
0.531 0.75 1.25 1.593 1.60 4.224 TO-TDXU0531-03
XPMT040104R
0.562 0.75 1.25 1.687 1.60 4.348 TO-TDXU0562-03
XPMT040104R
0.625 0.75 1.25 1.875 1.60 4.600 TO-TDXU0625-03
XPMT050204R SC-04
TX-06F
0.687 1.00 1.457 2.062 2.28 5.622 TO-TDXU0687-03
XPMT06X308R SC-05
TX-07F
0.075 1.00 1.457 2.250 2.28 5.872 TO-TDXU0750-03
XPMT06X308R
0.812 1.00 1.457 2.437 2.28 6.122 TO-TDXU0812-03
XPMT06X308R
0.875 1.00 1.457 2.625 2.28 6.372 TO-TDXU0875-03
XPMT07H308R SC-06
TX-08F
0.937 1.00 1.457 2.812 2.28 6.622 TO-TDXU0937-03
XPMT07H308R
1.000 1.00 1.457 3.000 2.28 6.872 TO-TDXU1000-03
XPMT07H308R
1.062 1.25 1.575 3.187 2.28 7.121 TO-TDXU1062-03
XPMT08T308R SC-07
TX-09F
1.125 1.25 1.575 3.375 2.28 7.371 TO-TDXU1125-03
XPMT08T308R
1.187 1.25 1.575 3.562 2.28 7.621 TO-TDXU1187-03
XPMT08T308R
1.250 1.25 1.575 3.750 2.28 7.871 TO-TDXU1250-03
XPMT08T308R
1.312 1.50 1.969 3.936 2.69 8.630 TO-TDXU1312-03
XPMT110412R SC-08
TX-15F
1.375 1.50 1.969 5.500 2.69 8.800 TO-TDXU1375-04
XPMT110412R
1.437 1.50 1.969 4.311 2.69 9.130 TO-TDXU1437-03
XPMT110412R
1.500 1.50 1.969 4.500 2.69 9.380 TO-TDXU1500-03
XPMT110412R
1.562 1.50 1.969 4.686 2.69 9.630 TO-TDXU1562-03
XPMT110412R
1.625 1.50 2.165 4.875 2.69 9.870 TO-TDXU1625-03
XPMT150512R SC-09
TX-20F
1.687 1.50 2.165 5.061 2.69 10.13 TO-TDXU1687-03
XPMT150512R
1.750 1.50 2.165 5.250 2.69 10.38 TO-TDXU1750-03
XPMT150512R
1.812 1.50 2.165 5.436 2.69 10.63 TO-TDXU1812-03
XPMT150512R
1.875 1.50 2.165 5.625 2.69 10.88 TO-TDXU1875-03
XPMT150512R
1.937 1.50 2.165 5.811 2.69 11.13 TO-TDXU1937-03
XPMT150512R
2.000 1.50 2.165 6.000 2.69 11.38 TO-TDXU2000-03
XPMT150512R

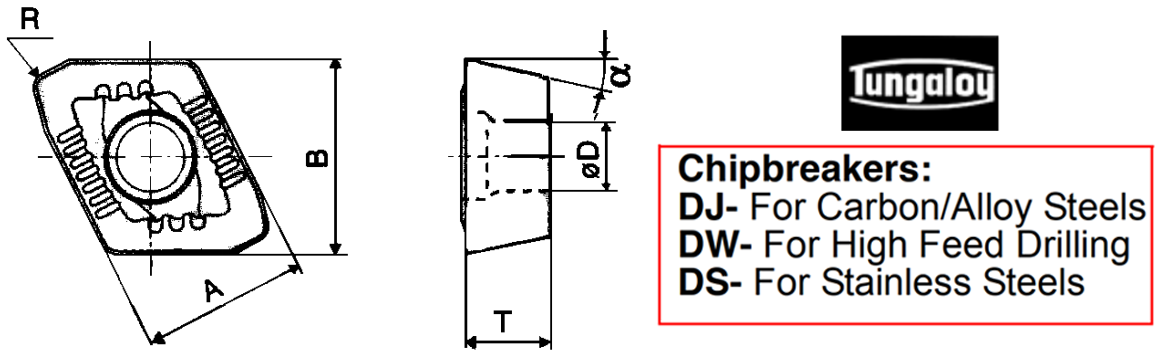

TUNGALOY STYLE INDEXABLE INSERTS
  • High positive XPMT inserts
  • Increased insert thickness and new edge honing increases tool life.
  • Economical! Four cutting edges per insert!
  • 3 grades cut everything
  • For speeds & feeds, see previous page
Note: When using inserts with DW chip breaker for high feed drilling set feed rate to 1.5x standard feed rate
Prices are pulled from our database in real time. Press Add button to see product price.
AH740 DJ AH120 DS AH725 DS
Drill Dia I. C. T Length Tungaloy Reference No. For Steel, Stainless, HiTemp Alloys For non-ferrous, Stainless, Hi Temp Alloys For Steel, Alloy steel (High Feed, Alum) Screws Wrench
0.500 to 0.562 0.169 0.063 0.177 XPMT040104R TO-169-AH740
TO-169-AH120
TO-169-AH725
SC-03
TX-06F
0.625 0.203 0.094 0.213 XPMT050204R TO-203-AH740
TO-203-AH120
TO-203-AH725
SC-04
TX-06F
0.687 to 0.812 0.236 0.118 0.276 XPMT06X308R TO-236-AH740
TO-236-AH120
TO-236-AH725
SC-05
TX-07F
0.875 to 1.000 0.276 0.142 0.323 XPMT07H308R TO-276-AH740
TO-276-AH120
TO-276-AH725
SC-06
TX-08F
1.031 to 1.2500 0.335 0.156 0.390 XPMT08T308R TO-335-AH740
TO-335-AH120
TO-335-AH725
SC-07
TX-09F
1.312 to 1.625 0.441 0.187 0.492 XPMT110412R TO-441-AH740
TO-441-AH120
TO-441-AH725
SC-08
TX-15F
1.687 to 2.000 0.591 0.219 0.634 XPMT150512R TO-591-AH740
TO-591-AH120
TO-591-AH725
SC-09
TX-20F
