Ultra-Dex USA - COOLANT THRU INDEXABLE DRILLS
INDEXABLE DRILLS
Coolant Thru Using 80° WCMT/WCMX Inserts
FEATURES:
Coolant Thru Using 80° WCMT/WCMX Inserts
FEATURES:
- 2xD, 2.5xD and 4xD indexable drills
- Spiral flutes to improve chip evacuation
- Coolant-thru access located on both shank
and side of drill body - Insert pockets precisely positioned to keep
cutting forces low and evenly distributed - 80° trigon inserts offer 3 cutting edges
- Made in USA

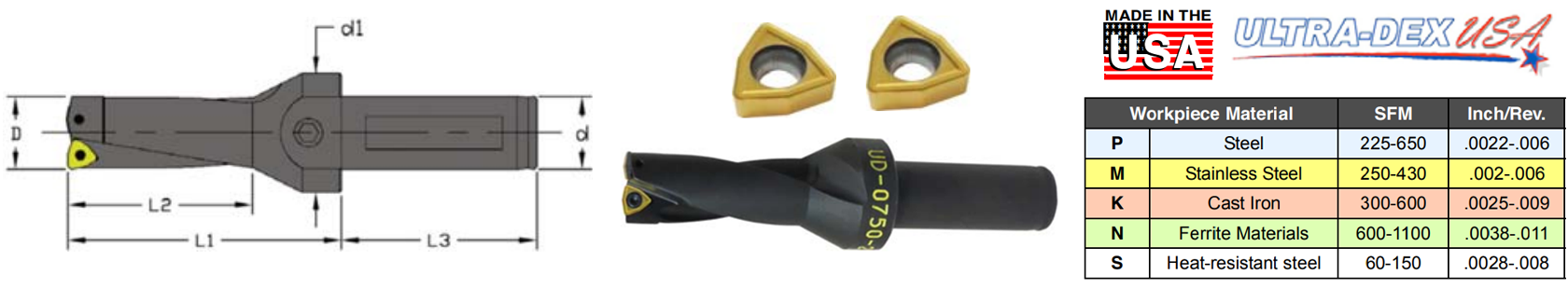

Dia D | Sh Dia D | d1 | Shank Len L3 | L1 | Fl Length L2 | Part Number | Insert | Screw | Torx | Insert Series | |
2.5X Diameter | |||||||||||
7/16” | 0.437 | 0.625 | 0.970 | 1.687 | 2.280 | 1.280 | UD-0437-2D-063 | WCMT 1.211 | MTS-184 | T-6-S | 12 |
15/32” | 0.468 | 0.625 | 0.970 | 1.687 | 2.280 | 1.310 | UD-0468-2D-063 | WCMT 1.211 | MTS-184 | T-6-S | 12 |
1/2” | 0.500 | 0.625 | 0.970 | 1.687 | 2.280 | 1.340 | UD-0500-2D-063 | WCMT 1.211 | MTS-184 | T-6-S | 12 |
17/32” | 0.531 | 0.625 | 0.970 | 1.687 | 2.280 | 1.370 | UD-0531-2D-063 | WCMT 1.51.51 | MTS-2 | T-6-S | 15 |
9/16” | 0.562 | 0.625 | 0.970 | 1.687 | 2.280 | 1.400 | UD-0562-2D-063 | WCMT 1.51.51 | MTS-2 | T-6-S | 15 |
19/32” | 0.593 | 0.625 | 0.970 | 1.687 | 2.280 | 1.430 | UD-0593-2D-063 | WCMT 1.51.51 | MTS-2 | T-6-S | 15 |
2X Diameter | |||||||||||
5/8” | 0.625 | 0.625 | 0.987 | 1.687 | 2.280 | 1.375 | UD-0625-2D-063 | WCMX 1.81.52 | MTS-255 | T-7-S | 18 |
11/16” | 0.687 | 0.625 | 0.987 | 1.687 | 2.280 | 1.437 | UD-0687-2D-063 | WCMX 1.81.52 | MTS-255 | T-7-S | 18 |
3/4” | 0.750 | 0.750 | 1.220 | 2.000 | 2.810 | 1.748 | UD-0750-2D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
13/16” | 0.812 | 0.750 | 1.220 | 2.000 | 2.810 | 1.811 | UD-0812-2D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
7/8” | 0.875 | 0.750 | 1.220 | 2.000 | 2.810 | 1.874 | UD-0875-2D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
15/16” | 0.937 | 0.750 | 1.220 | 2.000 | 2.810 | 1.935 | UD-0937-2D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
1” | 1.000 | 1.000 | 1.450 | 2.375 | 3.235 | 2.345 | UD-1000-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/32” | 1.031 | 1.000 | 1.450 | 2.375 | 3.235 | 2.375 | UD-1031-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/16” | 1.062 | 1.000 | 1.450 | 2.375 | 3.235 | 2.406 | UD-1062-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-7/64” | 1.094 | 1.000 | 1.450 | 2.375 | 3.235 | 2.438 | UD-1094-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/8” | 1.125 | 1.000 | 1.450 | 2.375 | 3.235 | 2.469 | UD-1125-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-5/32” | 1.156 | 1.000 | 1.450 | 2.375 | 3.235 | 2.500 | UD-1156-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-3/16” | 1.187 | 1.000 | 1.450 | 2.375 | 3.235 | 2.532 | UD-1187-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-7/32” | 1.219 | 1.000 | 1.450 | 2.375 | 3.235 | 2.564 | UD-1219-2D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/4” | 1.250 | 1.250 | 1.730 | 2.619 | 3.886 | 2.710 | UD-1250-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-5/16” | 1.312 | 1.250 | 1.730 | 2.619 | 3.886 | 2.771 | UD-1312-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-11/32” | 1.343 | 1.250 | 1.730 | 2.619 | 3.886 | 2.802 | UD-1343-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-3/8” | 1.375 | 1.250 | 1.730 | 2.619 | 3.886 | 2.833 | UD-1375-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-7/16” | 1.437 | 1.250 | 1.730 | 2.619 | 3.886 | 2.896 | UD-1437-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-1/2” | 1.500 | 1.250 | 1.970 | 2.619 | 4.426 | 3.250 | UD-1500-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-9/16” | 1.562 | 1.250 | 1.970 | 2.619 | 4.426 | 3.312 | UD-1562-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-5/8” | 1.625 | 1.250 | 1.970 | 2.619 | 4.426 | 3.375 | UD-1625-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-11/16” | 1.687 | 1.250 | 1.970 | 2.619 | 4.426 | 3.437 | UD-1687-2D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-3/4” | 1.750 | 1.500 | 2.220 | 2.875 | 5.025 | 3.850 | UD-1750-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
1-13/16” | 1.812 | 1.500 | 2.220 | 2.875 | 5.025 | 3.912 | UD-1812-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
1-7/8” | 1.875 | 1.500 | 2.220 | 2.875 | 5.025 | 3.975 | UD-1875-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
1-15/16” | 1.937 | 1.500 | 2.220 | 2.875 | 5.025 | 4.036 | UD-1937-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2” | 2.000 | 1.500 | 2.470 | 2.875 | 5.687 | 4.469 | UD-2000-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2-1/8” | 2.125 | 1.500 | 2.470 | 2.875 | 5.687 | 4.593 | UD-2125-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2-1/4” | 2.250 | 1.500 | 2.470 | 2.875 | 5.687 | 4.717 | UD-2250-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2-3/8” | 2.375 | 1.500 | 2.470 | 2.875 | 5.687 | 4.840 | UD-2375-2D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
4X Diameter | |||||||||||
5/8” | 0.625 | .625 | .987 | 1.687 | 3.720 | 2.815 | UD-0625-4D-063 | WCMX 1.81.52 | MTS-255 | T-7-S | 18 |
11/16” | 0.687 | .625 | .987 | 1.687 | 3.720 | 2.878 | UD-0687-4D-063 | WCMX 1.81.52 | MTS-255 | T-7-S | 18 |
3/4” | 0.750 | .750 | 1.220 | 2.000 | 4.763 | 3.698 | UD-0750-4D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
13/16” | 0.812 | .750 | 1.220 | 2.000 | 4.763 | 3.761 | UD-0812-4D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
7/8” | 0.875 | .750 | 1.220 | 2.000 | 4.763 | 3.824 | UD-0875-4D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
15/16” | 0.937 | .750 | 1.220 | 2.000 | 4.763 | 3.885 | UD-0937-4D-075 | WCMX 21.52 | MTS-25-DR | T-8-S | 21 |
1” | 1.000 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.635 | UD-1000-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/32” | 1.031 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.666 | UD-1031-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/16” | 1.062 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.696 | UD-1062-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-7/64” | 1.094 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.728 | UD-1094-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/8” | 1.125 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.760 | UD-1125-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-5/32” | 1.156 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.792 | UD-1156-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-3/16” | 1.187 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.822 | UD-1187-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-7/32” | 1.219 | 1.000 | 1.4500 | 2.375 | 5.685 | 4.864 | UD-1219-4D-100 | WCMX 2.522 | MTS-3-DR | T-9-S | 25 |
1-1/4” | 1.250 | 1.250 | 1.730 | 2.619 | 6.760 | 5.585 | UD-1250-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-5/16” | 1.312 | 1.250 | 1.730 | 2.619 | 6.760 | 5.646 | UD-1312-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-3/8” | 1.375 | 1.250 | 1.730 | 2.619 | 6.760 | 5.708 | UD-1375-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-7/16” | 1.437 | 1.250 | 1.730 | 2.619 | 6.760 | 5.771 | UD-1437-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-1/2” | 1.500 | 1.250 | 1.970 | 2.619 | 7.800 | 6.632 | UD-1500-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-9/16” | 1.562 | 1.250 | 1.970 | 2.619 | 7.800 | 6.695 | UD-1562-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-5/8” | 1.625 | 1.250 | 1.970 | 2.619 | 7.800 | 6.757 | UD-1625-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-11/16” | 1.687 | 1.250 | 1.970 | 2.619 | 7.800 | 6.820 | UD-1687-4D-125 | WCMX 32.52 | MTS-35-DR | T-10-S | 32 |
1-3/4” | 1.750 | 1.500 | 2.220 | 2.875 | 8.900 | 7.724 | UD-1750-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
1-13/16” | 1.812 | 1.500 | 2.220 | 2.875 | 8.900 | 7.786 | UD-1812-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
1-7/8” | 1.875 | 1.500 | 2.220 | 2.875 | 8.900 | 7.849 | UD-1875-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
1-15/16” | 1.937 | 1.500 | 2.220 | 2.875 | 8.900 | 7.911 | UD-1937-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2” | 2.000 | 1.500 | 2.470 | 2.875 | 10.347 | 9.263 | UD-2000-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2-1/8” | 2.125 | 1.500 | 2.470 | 2.875 | 10.347 | 9.387 | UD-2125-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2-1/4” | 2.250 | 1.500 | 2.470 | 2.875 | 10.347 | 9.512 | UD-2250-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
2-3/8” | 2.375 | 1.500 | 2.470 | 2.875 | 10.347 | 9.637 | UD-2375-4D-150 | WCMX 433 | MTS-4-DR | T-15-S | 43 |
