CCGT / CPMT Boring Inserts

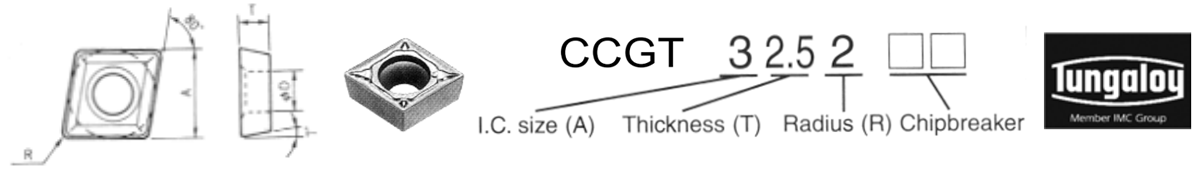

CCGT INSERTS FOR NON-FERROUS METALS
80° Diamond, 7° Relief Angle
Prices are pulled from our database in real time. Press Add button to see product price.
ANSI ISO IC
(Inch)
T
(Inch)
R
(Inch)
Cutting
Conditions
Operation/
Application
Chip
Breaker
Grade Part Number
CCGT21.50.5 CCGT060202 1/4 3/32 0.004 1/256 Cont Non Ferrous Boring PP H10T TO-1112
CCGT21.51 CCGT060204 1/4 3/32 0.016 1/64 Cont Non Ferrous Boring PP H10T TO-1114
CCGT32.50.5 CCGT09T302 3/8 5/32 0.004 1/256 Cont Non Ferrous Boring PP H10T TO-1116
CCGT32.51 CCGT09T304 3/8 5/32 0.016 1/64 Cont Non Ferrous Boring PP H10T TO-1117
CCGT32.52 CCGT09T308 3/8 5/32 0.031 1/32 Cont Non Ferrous Boring PP H10T TO-1118
CCGT430.5 CCGT120402 1/2 3/16 0.004 1/256 Cont Non Ferrous Boring PP H10T TO-1119

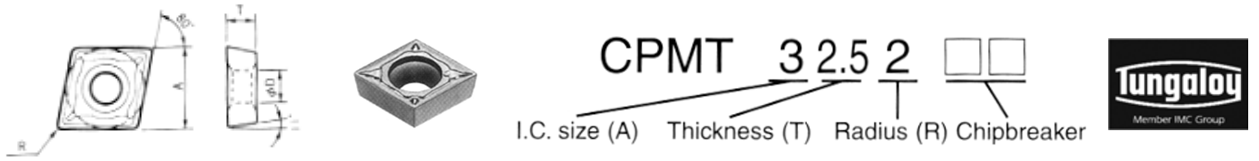

CPMT INSERTS FOR STEELS
80° Diamond, 11° Relief Angle
Prices are pulled from our database in real time. Press Add button to see product price.
ANSI ISO IC
(Inch)
T
(Inch)
R
(Inch)
Cutting
Conditions
Operation/
Application
Chip
Breaker
Grade Part Number
CPMT21.50.5 CPMT060202 1/4 3/32 0.004 1/256 Cont Finish To Medium Boring PS NS530 TO-1552
Cont Finish To Medium Boring PS AT530 TO-1551
Cont & Int Turning Finish To Medium Boring PS T9125 TO-3563
CPMT21.51 CPMT060204 1/4 3/32 0.016 1/64 Cont Finish To Medium Boring PS NS530 TO-1555
Cont Finish To Medium Boring PS AT530 TO-1554
Cont & Int Turning Finish To Medium Boring PS T9125 TO-3564
CPMT32.50.5 CPMT09T302 3/8 5/32 0.004 1/256 Cont Finish To Medium Boring PS NS530 TO-1558
Cont Finish To Medium Boring PS AT530 TO-1557
CPMT32.51 CPMT09T304 3/8 5/32 0.016 1/64 Cont Finish To Medium Boring PS NS530 TO-1561
Cont Finish To Medium Boring PS AT530 TO-1560
CPMT32.52 CPMT09T308 3/8 5/32 0.031 1/32 Cont Finish To Medium Boring PS NS530 TO-1564
Cont Finish To Medium Boring PS AT530 TO-1563
Cont & Int Turning Finish To Medium Boring PS T9125 TO-3725

CPMT INSERTS FOR STAINLESS STEELS
80° Diamond, 11° Relief Angle
Prices are pulled from our database in real time. Press Add button to see product price.
ANSI ISO IC
(Inch)
T
(Inch)
R
(Inch)
Cutting
Conditions
Operation/
Application
Chip
Breaker
Grade Part Number
CPMT21.50.5 CPMT060202 1/4 3/32 0.004 1/256 Cont Finish To Medium PS NS530 TO-1552
Cont Finish To Medium PS AT530 TO-1551
CPMT21.51 CPMT060204 1/4 3/32 0.016 1/64 Cont Finish To Medium PS NS530 TO-1555
Cont Finish To Medium PS AT530 TO-1554
CPMT32.50.5 CPMT09T302 3/8 5/32 0.004 1/256 Cont Finish To Medium PS NS530 TO-1558
Cont Finish To Medium PS AT530 TO-1557
CPMT32.51 CPMT09T304 3/8 5/32 0.016 1/64 Cont Finish To Medium PS NS530 TO-1561
Cont Finish To Medium PS AT530 TO-1560
CPMT32.52 CPMT09T308 3/8 5/32 0.031 1/32 Cont Finish To Medium PS NS530 TO-1564
Cont Finish To Medium PS AT530 TO-1563
