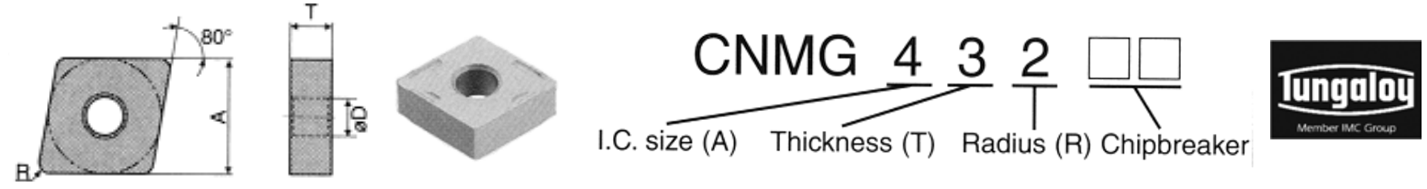

CNMG 80° Diamond Turning Inserts

CNMG INSERTS FOR STEELS
80° Diamond
Prices are pulled from our database in real time. Press Add button to see product price.
ANSI ISO IC
(Inch)
T
(Inch)
R
(Inch)
Cutting
Conditions
Operation/
Application
Chip
Breaker
Grade Part Number
CNMG431 CNMG120404 1/2 3/16 0.016 1/64 Cont Semi Finish TS NS530 TO-1317
Cont Semi Finish AT530 TO-1315
Cont - GP Semi Finish T9115 TO-3516
Cont & Int Semi Finish T9125 TO-3517
Cont - GP Medium TM T9115 TO-3513
Cont & Int Medium T9125 TO-3514
Severely Int & Heavy Cutting Medium T9135 TO-3515
CNMG432 CNMG120408 1/2 3/16 0.031 1/32 Cont Semi Finish TS NS530 TO-1397
Cont Semi Finish AT530 TO-1395
Cont - GP Semi Finish T9115 TO-3527
Cont & Int Semi Finish T9125 TO-3528
Cont - GP Medium TM T9115 TO-3524
Cont & Int Medium T9125 TO-3525
Severely Int & Heavy Cutting Medium T9135 TO-3526
Cont - GP Heavy TH T9115 TO-3520
Cont & Int Heavy T9125 TO-3521
Severely Int & Heavy Cutting Heavy T9135 TO-3522
CNMG434 CNMG120416 1/2 3/16 0.063 Cont - High Speed Heavy TH T9105 TO-3539
CNMG433 CNMG120412 1/2 3/16 0.047 3/64 Cont - GP Medium TM T9115 TO-3536
Severely Int & Heavy Cutting Medium T9135 TO-3538
Severely Int & Heavy Cutting Heavy T9135 TO-3534
CNMG543 CNMG160612 5/8 1/4 0.047 3/64 Cont & Int Medium TM T9125 TO-3548
Cont & Int Heavy TH T9125 TO-3545
Severely Int & Heavy Cutting Heavy T9135 TO-3546
CNMG544 CNMG160616 5/8 1/4 0.063 1/16 Cont - General Purpose Heavy Turning TH T9115 TO-3550
Severely Int & Heavy Cutting Heavy Turning T9135 TO-3552
CNMG INSERTS FOR STAINLESS STEELS
80° Diamond
Prices are pulled from our database in real time. Press Add button to see product price.
ANSI ISO IC
(Inch)
T
(Inch)
R
(Inch)
Cutting
Conditions
Operation/
Application
Chip
Breaker
Grade Part Number
CNMG431 CNMG120404 1/2 3/16 0.016 1/64 Cont - General Purpose Finish Turning SS T6020 TO-1271
Rough & Heavy Turning Finish Turning SS T6030 TO-1272
Cont - General Purpose Medium Turning SM T6020 TO-1267
Rough & Heavy Turning Medium Turning SM T6030 TO-1268
CNMG432 CNMG120408 1/2 3/16 0.031 1/32 Cont - General Purpose Finish Turning SS T6020 TO-1340
Rough & Heavy Turning Finish Turning SS T6030 TO-1341
Cont - General Purpose Medium Turning SM T6020 TO-1336
Rough & Heavy Turning Medium Turning SM T6030 TO-1337
Rough & Heavy Turning Heavy Turning TH T6030 TO-1356
CNMG433 CNMG120412 1/2 3/16 0.047 3/64 Rough & Heavy Turning Finish Turning SS T6030 TO-1417
Rough & Heavy Turning Medium Turning SM T6030 TO-1415
CNMG INSERTS FOR SUPER ALLOYS
80° Diamond
Prices are pulled from our database in real time. Press Add button to see product price.
ANSI ISO IC
(Inch)
T
(Inch)
R
(Inch)
Cutting
Conditions
Operation/
Application
Chip
Breaker
Grade Part Number
CNMG431 CNMG120404 1/2 3/16 0.016 1/64 Cont Finish Turning SA AH110 TO-1265
Cont & Int Turning Finish Turning SA AH120 TO-1266
Cont Medium Turning TM AH110 TO-1284
Cont & Int Turning Medium Turning TM AH120 TO-1285
CNMG432 CNMG120408 1/2 3/16 0.031 1/32 Cont Finish Turning SA AH110 TO-1330
Cont & Int Turning Finish Turning SA AH120 TO-1331
Cont Medium Turning TM AH110 TO-1363
Cont & Int Turning Medium Turning TM AH120 TO-1364
Cont & Int Turning Heavy Turning TH AH120 TO-1352
CNMG433 CNMG120412 1/2 3/16 0.047 3/64 Cont & Int Turning Medium Turning TM AH120 TO-1435
Cont & Int Turning Heavy Turning TH AH120 TO-1425
CNMG543 CNMG160612 5/8 1/4 0.047 Cont & Int Turning Heavy Turning TH AH120 TO-1477
CNMG/CNGG INSERTS FOR ALUMINUM
80° Diamond
Prices are pulled from our database in real time. Press Add button to see product price.
ANSI ISO IC
(Inch)
T
(Inch)
R
(Inch)
Coating Cutting
Conditions
Chip
Breaker
Grade Part Number
CNMG431 CNMG120404 1/2 3/16 0.016 1/64 Tialn Coated Carbide Cont 28 AH110 TO-1302
Tialn Coated Carbide Cont & Int Turning 28 AH120 TO-1303
CNMG432 CNMG120408 1/2 3/16 0.031 1/32 Tialn Coated Carbide Cont 28 AH110 TO-1381
Tialn Coated Carbide Cont & Int Turning 28 AH120 TO-1382
CNMG433 CNMG120412 1/2 3/16 0.047 3/64 Tialn Coated Carbide Cont 28 AH110 TO-1434
CNGG431 CNGG120404 1/2 3/16 0.016 1/64 Uncoated Carbide Cont LP TH10 TO-1205
CNGG432 CNGG120408 1/2 3/16 0.031 1/32 Uncoated Carbide Cont LP TH10 TO-1208

GRADES & CHIPBREAKERS
TUNGALOY CHIPBREAKERS
Breaker Operation
TS Semi Finish Turning
TM Medium Turning
TH Heavy Turning
SS Finish Turning
SM Medium Turning
SA Finish Turning
P Very sharp cutting edge
PM Medium To Rough Boring
PP General Purpose Boring
PS Finish To Medium Boring
28 General Turning

TUNGALOY GRADES
Grade Coating/
Carbide Or Cermet
Cutting
Conditions
NS530 Uncoated Cermet Cont
AT530 Tialn Coated Cermet Cont
T9105 Ticn+al Oxide Coated Carbide Cont - High Speed Turning
T9115 Ticn+al Oxide Coated Carbide Cont - General Purpose Turning
T9125 Ticn+al Oxide Coated Carbide Cont & Int Turning
T9135 Ticn+al Oxide Coated Carbide Severely Int & Heavy Cutting
T6020 Ticn+al Oxide Coated Carbide Cont - General Purpose Turning
T6030 Ticn+al Oxide Coated Carbide Rough & Heavy Turning
T5020 Tin Coated Carbide Rough & Int Turning
AH110 Tialn Coated Carbide Cont
AH120 Tialn Coated Carbide Cont & Int Turning
TH10 Uncoated Carbide Cont
H10T Uncoated Carbide Cont
