SOFT JAWS POINTED - 1/16" x 90° Serrations

FOR USE ON: SMW Autoblok, Rohm, Pratt Burnerd & Other Chucks
  • 1/16" x 90° serrations
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum & Steel
Prices are pulled from our database in real time. Press Add button to see product price.

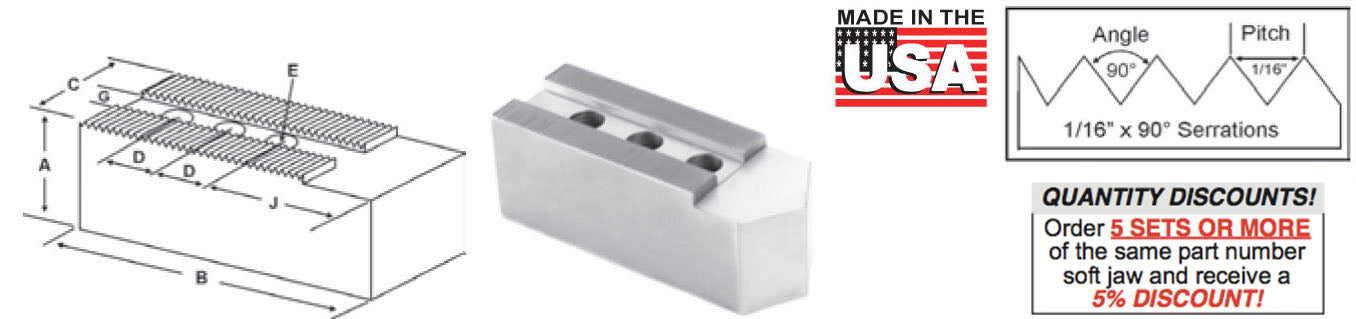

Critical Dimensions ALUMINUM STEEL
Group
No
Chuck
Size
Groove
Width
G
Screw
Size
E
Hole
Space
D
Height
Inch
A
Hole to
Front
J
Width
Inch
C
Length
Inch
B
No.
of
Holes
POINTED END
Part Number
POINTED END
Part Number
I1-43-62 5 0.433 (11mm) 5/16 0.625 (16mm) 1.50 0.875 1.00 2.500 3 PH-5156AP
PH-5156P
2.00 0.875 1.00 2.500 3 PH-5256AP
PH-5256P
I1-43-71 5 - 6 0.433 (11mm) 5/16 0.718 (18mm) 1.50 1.250 1.25 3.125 3 PH-6150AP
PH-6150P
SP 125,
STP 125,
STWP 125
2.00 1.250 1.25 3.125 3 PH-6200AP
PH-6200P
2.50 1.250 1.25 3.125 3 PH-6250AP
PH-6250P
3.00 1.250 1.25 3.125 3 PH-6300AP
PH-6300P
I1-47-59 5 - 6 0.473 5/16 0.591 1.50 0.900 1.00 2.500 3 PH-5150AP
PH-5150P
I1-47-63 5 - 6 0.472 8mm 0.630 1.00 0.900 1.00 2.500 3 PH-5100AP
PH-5100P
2.00 0.900 1.25 2.500 3 PH-5200AP
PH-5200P
I1-55-71 5 - 6 0.551 (14mm) 3/8 0.710 (18mm) 1.50 1.150 1.25 3.000 3 PH-6155AP
PH-6155P
3.00 1.150 1.25 3.000 3 PH-6305AP
PH-6305P
I1-55-78 5-6 0.551 (14mm) 3/8 0.787 2.00 1.625 1.25 3.000 3 HA-6200AP
HA-6200P
3.00 1.625 1.25 3.000 3 HA-6300AP
HA-6300P
4.00 1.625 1.25 3.000 3 HA-6400AP
HA-6400P
I1-55-87 5 - 10 0.551 (14mm) 3/8 0.875 (22mm) 1.50 2.125 1.50 4.375 3 PH-6151AP
PH-6151P
2.00 2.125 1.50 4.375 3 PH-6201AP
PH-6201P
2.00 2.325 1.75 4.750 3 PH-10205AP
PH-10205P
2.50 2.125 1.50 4.375 3 PH-6251AP
PH-6251P
3.00 2.125 1.50 4.375 3 PH-6301AP
PH-6301P
3.00 3.575 2.00 6.000 3 PH-10306AP
PH-10306P
4.00 2.125 1.50 4.375 3 PH-6401AP
PH-6401P
4.00 2.325 1.75 4.750 3 PH-10405AP
PH-10405P
4.00 3.575 2.00 6.000 3 PH-10406AP
PH-10406P
I1-55-98 5 - 6 0.551 (14mm) 3/8 0.984 (25mm) 1.50 1.650 1.25 3.250 2 SM-6150AP
SM-6150P
3.00 1.650 1.25 3.250 2 SM-6300AP
SM-6300P
I1-59-81 6 0.590 10mm 0.810 2.00 0.750 1.00 2.000 2 PB-6200AP
PB-6200P
I1-66-87 5 - 10 0.669 3/8 0.875 2.00 1.550 1.25 3.250 2 PH-6203AP
PH-6203P
SMW
Autoblok

BB-D 210,
BH-D 210
8 0.669 (17mm) 1/2 0.875 (22mm) 2.00 2.125 1.50 4.375 3 PH-8200AP
PH-8200P
3.00 2.125 1.50 4.375 3 PH-8300AP
PH-8300P
4.00 2.125 1.50 4.375 3 PH-8400AP
PH-8400P
I1-66-100 8 0.669 (17mm) 1/2 1.000 (25.5mm) 2.00 1.725 1.50 4.375 3 PH-8201AP*
PH-8201P*
PBA
9821-_2110
3.00 1.725 1.50 4.375 3 PH-8301AP*
PH-8301P*
4.00 1.725 1.50 4.375 3 PH-8401AP*
PH-8401P*
I1-66-112 8 0.669 (17mm) 1/2 1.125 (28.5mm) 2.00 1.750 1.50 3.500 2 SM-8200AP*
SM-8200P*
3.00 1.750 1.50 3.500 2 SM-8300AP*
SM-8300P*
5.00 1.750 1.50 3.500 2 SM-8500AP*
SM-8500P*
I1-71-83 8 0.710 12mm 0.830 2.00 0.840 1.75 3.000 2 PB-6201AP
PB-6201P
I1-78-118 10 - 12 0.787 (20mm) 1/2 1.187 (30mm) 2.50 2.250 1.75 5.250 3 PH-10250AP
PH-10250P
PBA 15 4.00 2.250 1.75 5.250 3 PH-10400AP
PH-10400P
2.50 2.250 2.00 5.500 3 PH-10252AP
PH-10252P
4.00 2.250 2.00 5.500 3 PH-10402AP
PH-10402P
I1-82-102 10-12 0.826 16mm 1.102 2.00 2.460 1.75 4.750 2 PB-12200AP
PB-12200P
I1-82-112 11 - 12 0.827 (21mm) 5/8 1.125 (28.5mm) 3.00 2.440 2.00 4.750 2 PH-11300AP*
PH-11300P*
3.00 2.440 2.00 5.750 2 PH-11307AP*
PH-11307P*
I1-82-117 10 - 12 0.827 (21mm) 1/2 1.187 (30mm) 2.50 2.250 1.75 5.250 3 PH-12250AP
PH-12250P
4.00 2.250 1.75 5.250 3 PH-12400AP
PH-12400P
2.50 2.875 2.00 5.250 2 SM-12250AP
SM-12250P
4.00 2.875 2.00 5.250 2 SM-12400AP
SM-12400P
I1-82-118 8 - 12 0.827 (21mm) 5/8 1.187 (30mm) 2.00 1.963 1.50 3.750 2 PH-8205AP
PH-8205P
SMW
Autoblok

BHD-250/
305/315
4.00 1.963 1.50 3.750 2 PH-8405AP
PH-8405P
2.50 2.875 2.00 5.250 2 AT-12250AP
AT-12250P
4.00 2.875 2.00 5.250 2 AT-12400AP
AT-12400P
I1-82-125 10 - 13 0.827 (21mm) 5/8 1.250 (32mm) 2.50 2.130 1.75 4.000 2 PB-10250AP*
PB-10250P
2.50 2.630 2.00 4.500 2 PB-12250AP*
PB-12250P
I1-82-156 14 - 18 0.827 (21mm) 5/8 1.562 (39.5mm) 2.50 2.875 2.00 6.750 3 PH-15250AP
PH-15250P
4.00 2.875 2.00 6.750 3 PH-15400AP
PH-15400P
2.50 2.875 2.50 6.750 3 PH-16250AP
PH-16250P
4.00 2.875 2.50 6.750 3 PH-16400AP
PH-16400P
I1-100-137 14 - 15 1.003 (25.5mm) 20mm 1.375 (35mm) 3.50 2.940 2.25 5.500 2 PH-15351AP*
PH-15351P*
3.50 2.940 2.25 6.250 2 PH-153517AP*
PH-153517P*
I1-100-175 16 1.000 (25.5mm) 3/4 1.750 (44.5mm) 3.00 3.500 2.00 6.000 2 PB-16300AP*
PB-16300P*
I1-118-197 18 1.181 (30mm) 20mm 1.970 (50mm) 3.00 3.310 2.50 8.000 3 PH-18300AP*
PH-18300P*
5.00 3.310 2.50 8.000 3 PH-18500AP*
PH-18500P*
