SOFT JAWS FLAT - 1.5 mm x 60° Serrations - Chuck Size 4 - 8

FOR USE ON: Kitagawa®, Samchully®, Strong®, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
  • 1.5mm x 60° serrations
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum, Steel & Aircraft Aluminum (where noted)
Prices are pulled from our database in real time. Press Add button to see product price.

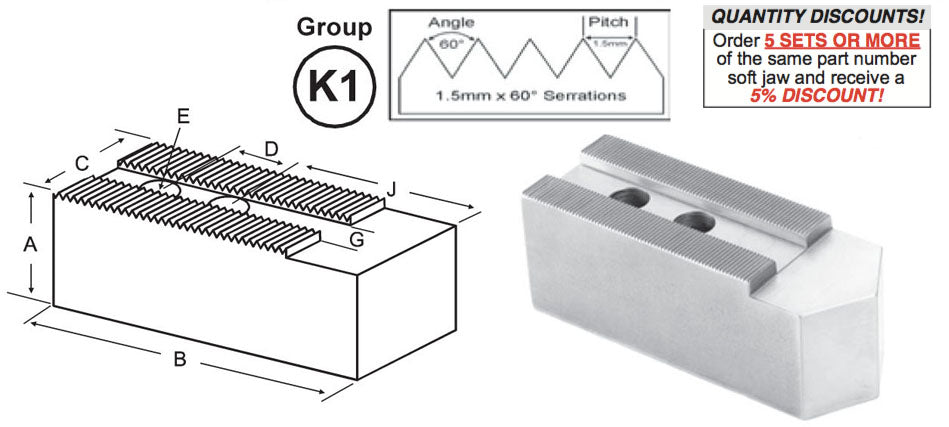

Critical Dimensions ALUMINUM STEEL
Group
No
Chuck
Size
Groove
Width
G
Screw
Size
E
Hole
Space
D
Height
Inch
A
Hole to
Front
J
Width
Inch
C
Length
Inch
B
No.
of
Holes
Industry
Reference
FLAT END
Part Number
FLAT END
Part Number
K1-08-15 4" 0.315 (8mm) 6mm 0.590 (15mm) 1.000 1.000 0.750 2.000 2 - KT-4100AF
KT-4100F
B-04,BT-04 2.000 1.000 0.750 2.000 2 - KT-4200AF
KT-4200F
K1-10-12 4" 0.394 (10mm) 6mm 0.470 (12mm) 1.000 1.000 0.750 2.000 2 - KT-4103AF
KT-4103F
2.000 1.000 0.750 2.000 2 - KT-4203AF
KT-4203F
K1-10-14 4" 0.394 (10mm) 8mm 0.551 (14mm) 1.000 1.000 1.000 2.000 2 - KT-4105AF
KT-4105F
B-204,B-205 2.000 1.000 1.000 2.000 2 - KT-4205AF
KT-4205F
K1-10-18 5" 0.394 (10mm) 8mm 0.713 (18mm) 1.500 1.250 1.000 2.375 2 - KT-5153AF
KT-5153F
B-05,
BT-05,
HOB-5
HOBT-5
2.000 1.250 1.000 2.375 2 - KT-5203AF
KT-5203F
2.500 1.250 1.000 2.375 2 - KT-5253AF
KT-5253F
3.000 1.250 1.500 2.375 2 - KT-5303AF
KT-5303F
1.900 1.250 3.000 2 - KT-5303AFL*
KT-5303FL*
4.000 1.900 1.250 3.000 2 - KT-5403AF
KT-5403F
K1-10-19 5" 0.394 (10mm) 8mm 0.748 (19mm) 1.500 1.250 1.500 2.375 2 - KT-5150AF
KT-5150F
N-05,
NT-05
2.500 1.250 1.500 2.375 2 - KT-5250AF
KT-5250F
3.000 1.250 1.500 2.375 2 - KT-5300AF
KT-5300F
K1-11-17 5" 0.433 (11mm) 8mm 0.669 (17mm) 1.500 1.270 1.000 2.375 2 - NK-5150AF*
NK-5150F*
Nikko 5" 2.000 1.270 1.000 2.375 2 - NK-5200AF*
NK-5200F*
K1-11-20 6" 0.433 (11mm) 10mm 0.787 (20mm) 1.500 1.625 1.250 3.000 2 - HO-6150AF
HO-6150F
2.000 1.625 1.250 3.000 2 - HO-6200AF
HO-6200F
2.500 1.625 1.250 3.000 2 - HO-6250AF
HO-6250F
3.000 1.625 1.250 3.000 2 - HO-6300AF
HO-6300F
K1-11-25 6" 0.433 (11mm) 8mm 0.985 (25mm) 1.500 1.625 1.000 3.000 2 - SG-6150AF
SG-6150F
MMK:
Z-6,
ZA5-6-0,
ZA5-6B,
ZJA5-6
1.625 1.250 3.000 2 - SG-6152AF
SG-6152F
2.500 1.625 1.000 3.000 2 - SG-6250AF
SG-6250F
1.625 1.250 3.000 2 - SG-6252AF
SG-6252F
3.000 1.625 1.000 3.000 2 - SG-6300AF
SG-6300F
K1-12-20 6" 0.472 (12mm) 10mm 0.787 (20mm) 1.000 1.625 1.250 3.000 2 - KT-6100AF
KT-6100F
Kitagawa
BB-06,
B-06,
B-206,
BT-06,
BT206,
Strong
N206
Samchully
HS-06
Howa:
HO15M6,
HO22M6,
HO24M6,
HO27M6
MMK:
YA5-6-46
1.500 1.625 1.250 3.000 2 - KT-6150AF
KT-6150F
1.625 1.250 3.000 2 - KT-6150BF
-
1.625 2.000 3.000 2 - KT-6152AF
KT-6152F
2.125 1.250 3.000 2 - KT-6151AF
KT-6151F
2.000 1.625 1.250 3.000 2 - KT-6200AF
KT-6200F
1.625 1.250 3.000 2 - KT-6200BF
-
2.500 1.625 1.250 3.000 2 - KT-6250AF
KT-6250F
3.000 1.625 1.250 3.000 2 - KT-6300AF
KT-6300F
1.625 1.250 3.000 2 - KT-6300BF
-
1.625 2.000 3.000 2 - KT-6302AF
KT-6302F
3.500 1.625 1.250 3.000 2 - KT-6350AF
KT-6350F
4.000 1.625 1.250 3.000 2 - KT-6400AF
KT-6400F
5.000 1.625 1.250 3.000 2 - KT-6500AF*
KT-6500F*
K1-14-20 6" 0.551 (14mm) 10mm 0.790 (20mm) 1.500 1.625 1.250 3.000 2 - NK-6150AF
NK-6150F
Nikko 6" 2.500 1.625 1.250 3.000 2 - NK-6250AF
NK-6250F
K1-14-25 8" 0.551 (14mm) 12mm 0.984 (25mm) 1.500 2.000 1.500 3.750 2 - KT-8150AF
KT-8150F
Kitagawa
B-08,
B-208
BB08,
BB208


Samchully
HS-08
HC-08
HCH-08


Strong
N208, NB208
NT208,
NIT208,
V208


MMK
PC-8-52
ZA6-8,
HA6-8,
HH-8,HHJ-8


HOWA
H3KT8,
HO15M8,
HO7MA8


SMW
Autoblok
BBM-210,
BHM-210
2.4690 1.500 4.250 2 HR-149-1.5-O or OP KT-8150-24AF
KT-8150-24F
2.000 1.179 1.500 3.500 2 HR149-2.0 KT-8200-17AF
KT-8200-17F
2.000 1.500 3.750 2 - KT-8200AF
KT-8200F
2.000 1.500 3.750 2 - KT-8200BF
-
2.016 1.500 3.750 2 KT-8/KT-8P - KT-8
2.250 1.500 4.000 2 - KT-8201AF
KT-8201F
2.250 1.500 4.000 2 - KT-8201BF
-
2.266 1.500 4.000 2 KT-8PL - KT-8PL
2.4690 1.500 4.250 2 HR-149-2.0-O or OP KT-8200-25AF
KT-8200-25F
2.500 1.7190 1.500 3.500 2 HR-149-2.5 KT-8250-17AF
KT-8250-17F
2.4690 1.500 4.250 2 HR-149-2.5-O or OP KT-8250-25AF
KT-8250-25F
3.00 2.000 1.500 3.750 2 - KT-8300AF
KT-8300F
2.000 1.500 3.750 2 - KT-8300BF
-
2.016 1.500 3.750 2 KT-8MH/KT-8MHP - KT-8MH
2.250 1.500 4.000 2 - KT-8301AF
KT-8301F
2.266 1.500 4.000 2 KT-8MHPL - KT-8MHPL
3.500 1.7190 1.500 3.500 2 HR-149-3.5 KT-8350-17AF
KT-8350-17F
2.4690 1.500 4.250 2 HR-149-3.5-O or OP KT-8350-25AF
KT-8350-25F
4.00 2.000 1.500 3.750 2 - KT-8400AF
KT-8400F
2.016 1.500 3.750 2 KT-8EH/KT-8EHP - KT-8EH
2.250 1.500 4.000 2 - KT-8401AF
KT-8401F
2.266 1.500 4.000 2 KT-8EHPL - KT-8EHPL
5.000 1.7190 1.500 3.500 2 HR-149-5.0 KT-8500-17AF
KT-8500-17F
2.000 1.500 3.750 2 - KT-8500AF
KT-8500F
2.4690 1.500 4.250 2 HR-149-5.0-O or OP KT-8500-25AF
KT-8500-25F
6.00 2.000 1.500 3.750 2 - KT-8600AF
KT-8600F
2.250 1.500 4.000 2 - KT-8601AF
KT-8601F
K1-14-30 8" 0.551 (14mm) 10mm 1.181 (30mm) 2.000 1.970 1.500 3.750 2 - SG-8200AF
SG-8200F
Suga 8" 3.000 1.970 1.500 3.750 2 - SG-8300AF
SG-8300F
4.000 1.970 1.500 3.750 2 - SG-8400AF
SG-8400F
K1-16-25 8" 0.630 (16mm) 12mm 0.984 (25mm) 2.000 2.000 1.500 3.750 2 - HO-8200AF
HO-8200F
HOWA
HO15M10,
HO22M8,
HO24M8,
HO27M8,
HO34M8
2.000 1.500 4.500 2 - HO-8200APL
HO-8200PL
2.250 1.500 4.000 2 - HO-8201AF
HO-8201F
3.000 2.000 1.500 3.750 2 - HO-8300AF
HO-8300F
4.000 2.000 1.500 3.750 2 - HO-8400AF
HO-8400F
6.000 2.000 1.500 3.750 2 - HO-8600AF
HO-8600F
K1-17-23 8" 0.669 (17mm) 12mm 0.905 (23mm) 2.000 2.000 1.500 3.750 2 - AB-8200AF
AB-8200F
SMW 200,
SMW 210
3.000 2.000 1.500 3.750 2 - AB-8300AF
AB-8300F
4.000 2.000 1.500 3.750 2 - AB-8400AF
AB-8400F
K1-17-25 8" 0.669 (17mm) 12mm 0.984 (25mm) 2.000 2.000 1.500 3.750 2 - AB-8205AF
AB-8205F
