SOFT JAWS POINTED - SQUARE SERRATED KEY TYPE

FOR USE ON: Buck & Bison 6"Chucks, S.P., Pratt Burnerd & Other Chucks
  • Square Serrated Key Type
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum & Steel
Prices are pulled from our database in real time. Press Add button to see product price.

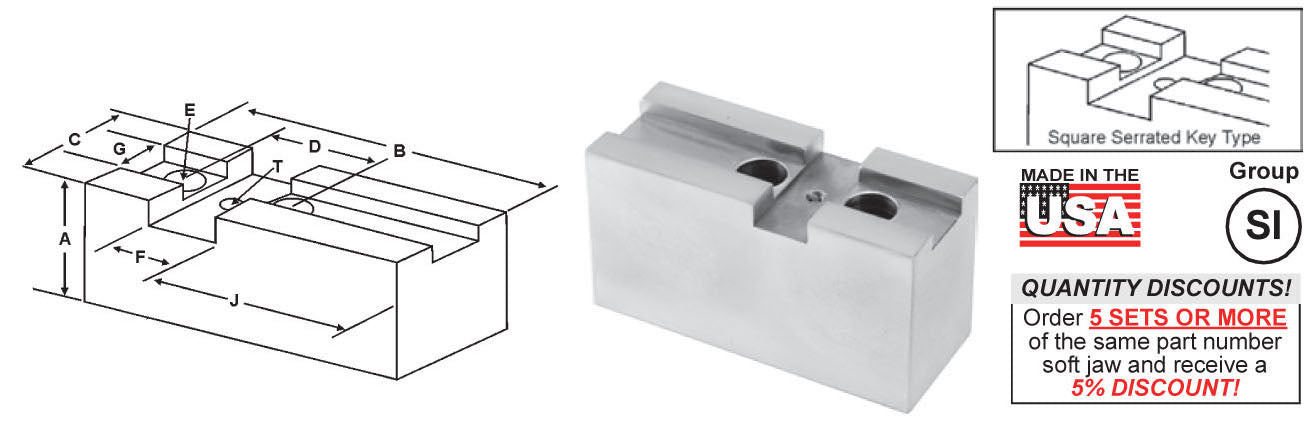

Critical Dimensions ALUMINUM STEEL
Group
No.
Chuck Size Tap Hole
T
Groove Width
G
Key Width
F
Screw Size
E
Hole Space
D
Hght Inch
A
Key to Front
J
Width Inch
C
Length Inch
B
POINTED END
Part Number
POINTED END
Part Number
SI-07-5/16-16 6 NONE 0.738 0.377 5/16 1.688 1.50 1.500 1.00 3.00 SP-6150AP
SP-6150P
2.00 1.500 1.00 3.00 SP-6200AP
SP-6200P
2.50 1.500 1.00 3.00 SP-6250AP
SP-6250P
4.00 1.500 1.00 3.00 SP-6400AP
SP-6400P
SI-05-3/8-14 8 1/4-20 0.501 0.745 3/8 1.438 2.00 1.250 1.25 3.00 SP-8200AP
SP-8200P
3.00 1.250 1.25 3.00 SP-8300AP
SP-8300P
SI-06-1/2-12 8 10-32 0.670 0.601 1/2 1.250 2.00 2.000 1.50 3.75 SP-8202AP
SP-8202P
3.00 2.000 1.50 3.75 SP-8302AP
SP-8302P
SI-07-1/2-14 8 1/4-20 0.751 0.745 1/2 1.438 2.00 1.875 1.50 3.50 SP-8205AP
SP-8205P
3.00 1.875 1.50 3.50 SP-8305AP
SP-8305P
4.00 1.875 1.50 3.375 SP-8405AP*
SP-8405P*
SI-07-1/2-17 10 to 12 5/16-18 0.751 0.994 1/2 1.750 2.50 1.625 1.75 4.00 SP-10250AP
SP-10250P
4.00 1.625 1.75 4.00 SP-10400AP
SP-10400P
0.751 0.994 1/2 1.750 2.50 2.750 1.75 4.75 SP-12250AP
SP-12250P
4.00 2.750 1.75 4.75 SP-12400AP
SP-12400P
SI-07-5/8-17 10 to 12 5/16-18 0.751 0.994 5/8 1.750 2.50 2.000 1.75 5.50 SP-12256AP
SP-12256P
0.751 0.994 5/8 1.750 2.50 2.500 1.75 5.50 SP-12257AP
SP-12257P
0.751 0.994 5/8 1.750 2.50 2.750 1.75 4.75 SP-12255AP
SP-12255P
4.00 2.750 1.75 4.75 SP-12405AP
SP-12405P
SI-10-3/4-25 15 to 18 3/8-16 1.001 1.488 3/4 2.500 2.50 3.250 2.50 6.25 SP-15250AP
SP-15250P
3.00 3.250 2.50 6.25 SP-15300AP
SP-15300P
4.00 3.250 2.50 6.25 SP-15400AP
SP-15400P
4.00 3.250 3.00 6.25 SP-15403AP*
SP-15403P
2.50 3.250 3.00 6.25 SP-15253AP*
SP-15253P*
SI-10-3/4-30 20-24 3/8-16 1.001 1.488 3/4 3.000 2.50 3.250 2.50 6.25 SP-20250AP*
SP-20250P*
4.50 3.250 2.50 6.25 SP-20400AP
SP-20400P
