TYPE Z BUSHINGS
The most flexible toolholder bushing for all types of N/C-CNC turning centers, turret lathes and chuckers. Elongated slot give the user a complete interchangeability with all brands of equipment.
FEATURES:

Increased step diameter for easy and perfect sealing.
Concentric ground and diamond polished OD & ID resulting in a mirror smooth finish
”Easy Entry” feature on OD for quick insertion
Wrench flats for easy removal
Step relief for easy removal and gripping on Z style bushings
Type and size clearly marked on surface of head diameter for easy identification
100% Satisfaction Guaranteed!

Prices are pulled from our database in real time. Press Add button to see product price.

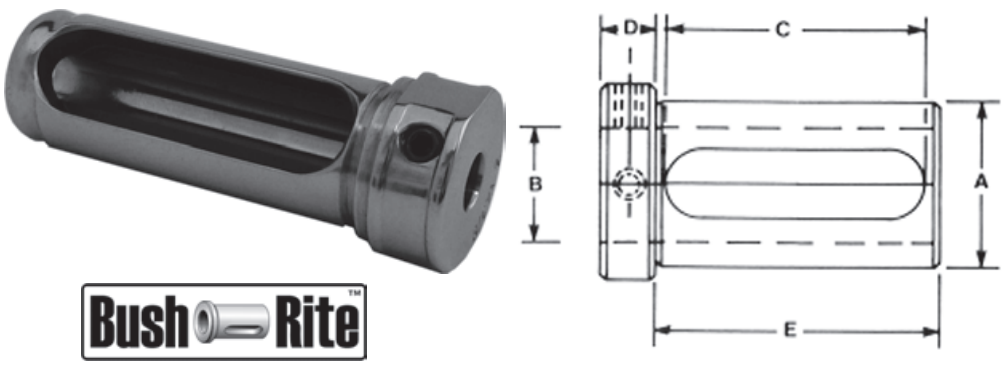

A O.D.	E Length Under Head	D Head Thick.	C Slot Length	B I.D.	Part Number
3/4”				1/4”	TBZ-07-0250-B
				5/16”	TBZ-07-0312-B
				3/8”	TBZ-07-0375-B
				1/2”	TBZ-07-0500-B
1”	2-3/4”	1/2”	2-3/8”	1/4”	TBZ-10-0250-B
				5/16”	TBZ-10-0312-B
				3/8”	TBZ-10-0375-B
				1/2”	TBZ-10-0500-B
				5/8”	TBZ-10-0625-B
				3/4”	TBZ-10-0750-B
1-1/4”	3”	5/8”	2-5/8”	3/8”	TBZ-12-0375-B
				1/2”	TBZ-12-0500-B
				5/8”	TBZ-12-0625-B
				3/4”	TBZ-12-0750-B
				7/8”	TBZ-12-0875-B
				1”	TBZ-12-1000-B
1-1/2”	3-1/4”	3/4”	2-7/8”	3/8”	TBZ-15-0375-B
				1/2”	TBZ-15-0500-B
				5/8”	TBZ-15-0625-B
				3/4”	TBZ-15-0750-B
				7/8”	TBZ-15-0875-B
				1”	TBZ-15-1000-B
				1-1/4”	TBZ-15-1250-B
1-3/4”	3-1/2”	3/4”	3-1/8”	1/2”	TBZ-17-0500-B
				5/8”	TBZ-17-0625-B
				3/4”	TBZ-17-0750-B
				7/8”	TBZ-17-0875-B
				1”	TBZ-17-1000-B
				1-1/4”	TBZ-17-1250-B
				1-1/2”	TBZ-17-1500-B
2”	3-3/4”	3/4”	3-3/8”	1/2”	TBZ-20-0500-B
				5/8”	TBZ-20-0625-B
				3/4”	TBZ-20-0750-B
				7/8”	TBZ-20-0875-B
				1”	TBZ-20-1000-B
				1-1/4”	TBZ-20-1250-B
				1-1/2”	TBZ-20-1500-B
				1-3/4”	TBZ-20-1750-B
