Mazak Tool Blocks

Mazak Tool Blocks

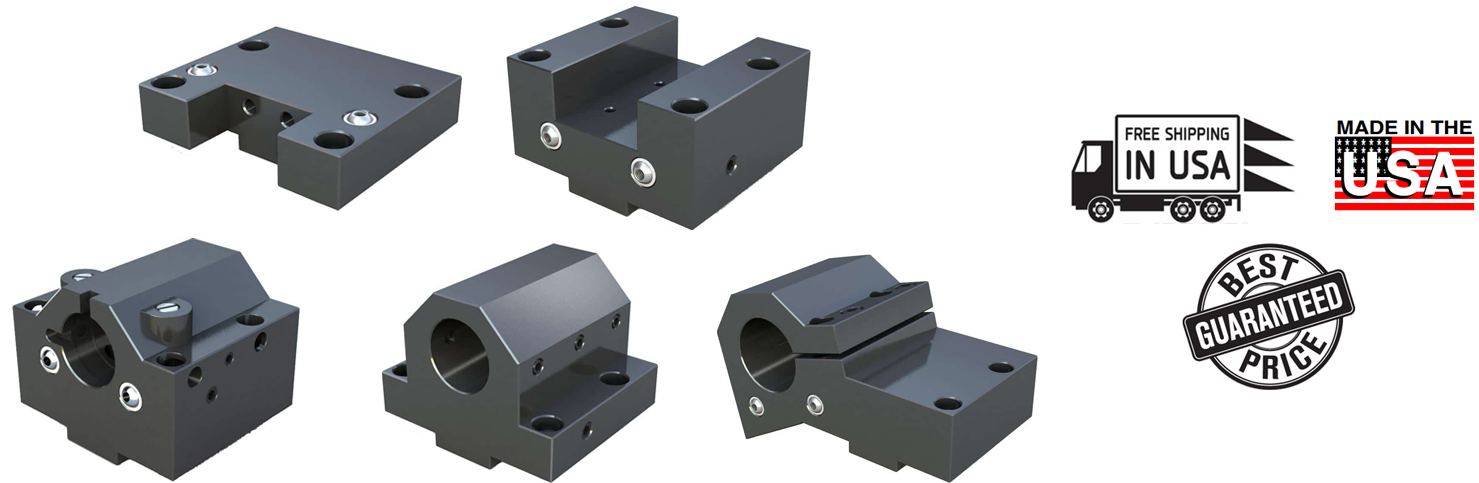

Tool Block Features
  • Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
  • Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
  • Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
  • Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
  • Components Included: Wedges, Coolant Nozzles and Set Screws.
  • Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
  • Made in the USA.
New Items
  • VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
  • ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
  • Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
  • More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
Bolt Hole Pattern:
76mm x 45mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
Nexus100/150, QT8, QT150, QT250 1" 1" NEX100-8425 NEX100-8411 1" Sq. CALL
1.25" 1.125" NEX100-8432 CALL
1.50" 1.125" NEX100-8435 CALL
Bolt Hole Pattern:
94mm x 60mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
Bridgeport QT8, QT15/18, QTN15, SQT250, QT200, Romi M27, NEX150-8D, DualTurn 20 QT, Nexus250 Duplomatic, QT Nexus 200, QT Nexus 350, QT Nexus 300, QT20, QT Nexus 2000 0.75" 50mm NEX350-8420 NEX350-8311 1" Sq. NEX350-8411 1" Sq. CALL
1" 50mm NEX350-8425 CALL
1.25" 50mm NEX350-8432 CALL
1.50" 50mm NEX350-8435 CALL
2" 50mm NEX350-8436 CALL
2.50" 50mm NEX350-8437 CALL
3" 50mm NEX350-8475 CALL
Bolt Hole Pattern:
118mm x 88mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
NEXUS 400, NEXUS 450 1.50" 2" NEX450-8435 NEX450-8311B 1.25" Sq. NEX450-8411B 1.25" Sq. CALL
2" 2" NEX450-8436 CALL
2.5" 2" NEX450-8437 CALL
3" 2" NEX450-8475 CALL
Bolt Hole Pattern:
104mm x 57mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
QT25, QT28N, QT30, QT300 1.5" 2.25" QT30-8435 QT30-8311 1" Sq. QT30-8411 1" Sq. CALL
2" 2.25" QT30-8436 CALL
Bolt Hole Pattern:
94mm x 84mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
QT35N, QTN40, QT350 1.50" 2" QT35-8435 QT35-8311B 1.25" Sq. QT35-8411B 1.25" Sq. CALL
2" 2" QT35-8436 CALL
Bolt Hole Pattern:
84mm x 60mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
QT200, QTN250, Smart250, Smart200 1.25" 2" QT200-8432 QT200-8311 1" Sq. QT200-8411 1" Sq. CALL
1.50" 2" QT200-8435 CALL
6 Hole:BHP 114mm x 203mm
ALT. 4 Hole: BHP 114mm x 101mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
Slant50, Slant60 2.5" 80mm Slant50-8437-4H Slant50-8311 1.25" Sq. B-4H Slant50-8411 1.25" Sq. B-4H CALL
3" 80mm Slant50-8475-4H Slant50-8311 1.25" Sq. B-6H Slant50-8411 1.25" Sq. B-6H CALL
2.5" 80mm Slant50-8437-6H CALL
3" 80mm Slant50-8475-6H CALL
