MH Hydraulic Cylinder

Non through-hole rotary hydraulic cylinder
  • Compact, low inertla, light weight cylinder :
    Manufuctured by aluminium alloy, this cylinder is light weight design to reduce the loading of spindle.
  • High speed :
    This balanced design cylinder is light weight, compact and maintains outstanding stability during high speed operation.
  • Long life :
    High quality cylinder seals and high accuracy surface finish on components to ensure the long life of these cylinders.
Piston
Dia.
(mm)
Piston Area
(cm²)
Max. Draw Bar Force
kN(kgf)
Piston
Stroke
(mm)
Max.
Operating
Pressure
MPa(kgf / cm²
Max.
Speed
(r.p.m.)
Moment Of
Inertia
I
(kg.m²)
Weight
(kg)
Total
Leakage
L/min
SPEC Part Number Price Each
Push Side Pull Side Push Side Pull Side
80 47.7 42.8 15.5(1580) 13.9(1417) 15 3.5(35.7) 6000 0.005 5.1 0.4 MH80
Call or Email
100 75.4 70.5 24.5(2498) 22.9(2335) 20 3.5(35.7) 5500 0.0125 6.6 0.4 MH100
Call or Email
125 121.1 114 39.3(4007) 37(3773) 25 3.5(35.7) 5500 0.02 8.4 0.4 MH125
Call or Email
150 176 160 66(6730) 60(6118) 30 4.0(40.8) 4000 0.047 10.4 0.8 MH150
Call or Email

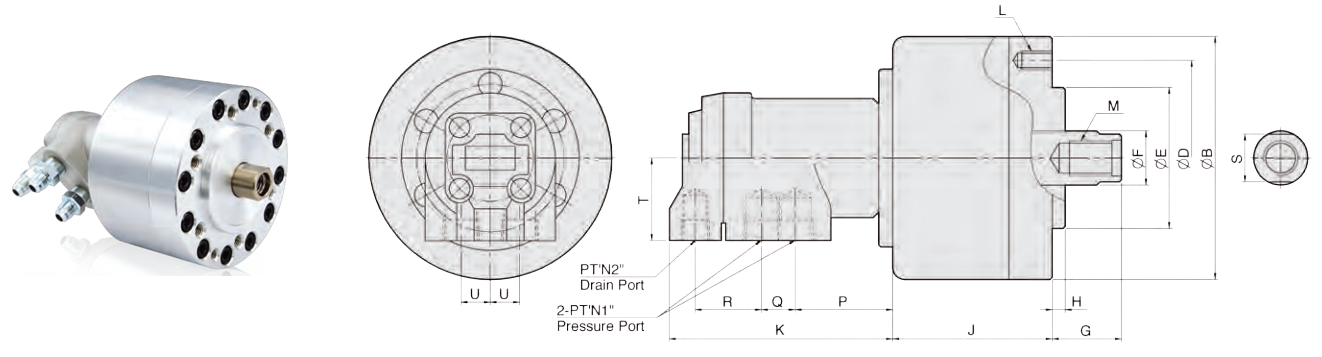

B D E
(h7)
F G
max.
G
min.
H J K L M N1 N2 P Q R T U S DIM Part Number Price Each
112 90 65 25 45 30 6 73.5 103 6-M8x16 M16x2.0x32 3/8" 1/4" 45 15.5 30.5 38 13.5 22 MH80 Call or Email
135 100 80 25 45 25 6 88.5 103 6-M10x19 M16x2.0x32 3/8" 1/4" 45 15.5 30.5 38 13.5 22 MH100 Call or Email
160 130 110 30 51 26 6 95.5 103 6-M12x20 M20x2.5x32 3/8" 1/4" 45 15.5 30.5 38 13.5 27 MH125 Call or Email
190 130 110 45 50 20 6 107 103 12-M12x20 M30x3.5x40 3/8" 1/4" 45 15.5 30.5 38 13.5 38 MH150 Call or Email
