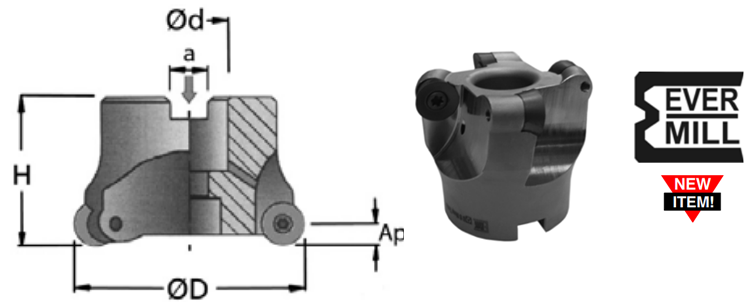

Button Insert Shell Mills
For Use With RDMT1204 Series Inserts Prices are pulled from our database in real time. Press Add button to see product price.
| Dia. D |
Arbor Hole d |
Key Width a |
Flute Length H |
No. of Flutes |
AP | Part Number | Insert Screw | Torx Wrench [C] |
| 2.00 | 0.750 | 0.3125 | 1.75 | 4 | 0.236 | M-SRD12-2075-4 | M-SC-AP16 | TX-208 |
| 3.00 | 1.000 | 0.375 | 2 | 6 | 0.236 | M-SRD12-3010-6 | ||
| 4.00 | 1.250 | 0.5 | 2 | 7 | 0.236 | M-SRD12-4012-7 |
