Super High Feed Shell Mills & Endmills

SUPER HIGH FEED SHELL MILLS & ENDMILLS
  • Newly designed cutting edge geometry allows 3-5 times higher feed than conventional tools
  • Utilizes thicker inserts and higher clamping stability
  • Coolant holes minimize edge damage resulting from chip build up
  • Machining Capability: shouldering, grooving, ramping, plunging, traversing, englarging hole diameter
Prices are pulled from our database in real time. Press Add button to see product price.

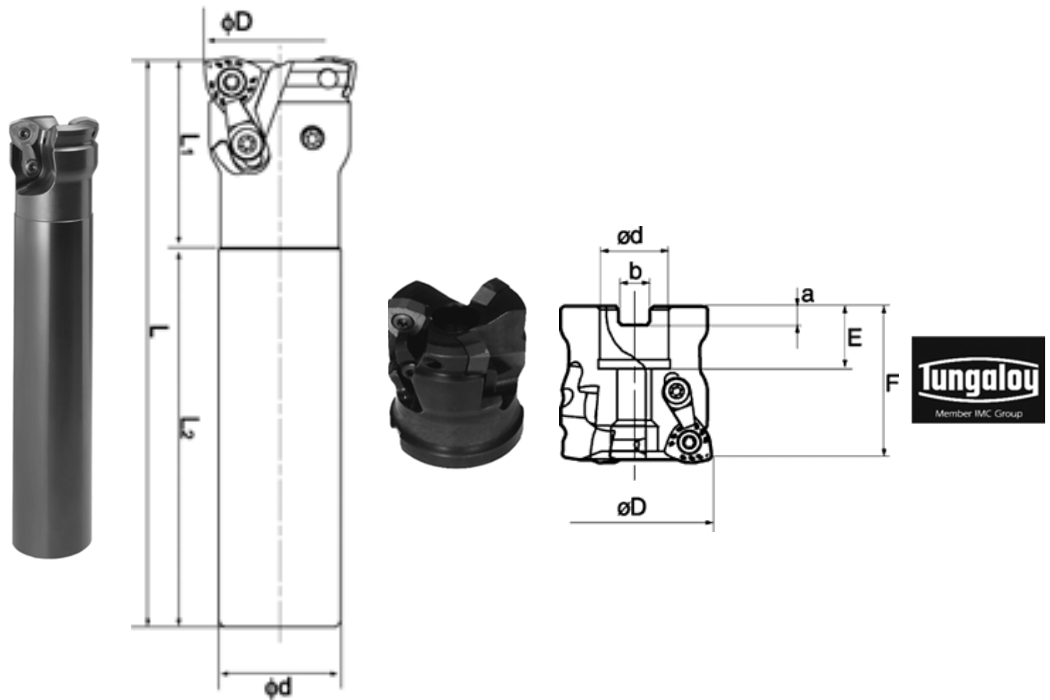

TXP High Feed Milling Cutter
Cutting
Dia D		 d E F a b No. of
Inserts		 Part Number Applicable Insert
2.50” 0.750 0.750 1.969 0.197 0.315 6 TO-TXP05250RBU
WPMT05...
3.00” 0.750 0.750 1.969 0.197 0.315 7 TO-TXP05300RBU
2.50” 1.000 1.024 2.480 0.236 0.374 5 TO-TXP06250RBU
WPMT06...
3.00” 1.000 1.024 2.480 0.236 0.374 6 TO-TXP06300RBU
2.00” 0.750 0.750 1.969 0.197 0.315 3 TO-TXP08050RU
WPMT08...
3.00” 1.000 1.024 2.480 0.236 0.375 5 TO-TXP08300RU
4.00” 1.500 1.260 2.480 0.394 0.625 6 TO-TXP08400RU
2.50” 0.750 0.750 2.000 0.197 0.315 3 TO-TXP09250RU
WPMT09...
3.00” 1.000 1.024 2.500 0.236 0.374 4 TO-TXP09300RU
4.00” 1.500 1.500 2.500 0.394 0.626 5 TO-TXP09400RU
5.00” 1.500 1.500 2.500 0.394 0.626 6 TO-TXP09500RU
6.00” 2.000 1.500 2.500 0.433 0.748 7 TO-TXP09600RU

EXP High Feed Endmill
Cutting
Dia D		 Shank
d		 OAL
L		 L1 L2 Shank
Type		 No. of
Inserts		 Part Number Applicable Insert
0.750” 0.750 4.031 2.00 2.031 Weldon 2 TO-EXP05075RSU
WPM*05H315ZPR
0.750” 0.750 7.000 4.00 3.000 Straight 2 TO-EXP05075RLU
0.750” 0.750 10.000 5.00 5.000 Straight 2 TO-EXP05075RLLU
1.000” 1.000 4.781 2.50 2.281 Weldon 2 TO-EXP06100RSU
WPM*06X415ZPR
1.000” 1.000 8.000 5.00 3.000 Straight 2 TO-EXP06100RLU
1.000” 1.000 12.000 7.00 5.000 Straight 2 TO-EXP06100RLLU
1.250” 1.250 5.281 3.00 2.281 Weldon 3 TO-EXP06125RSBU
1.250” 1.250 8.000 5.00 3.000 Straight 3 TO-EXP06125RLBU
1.500” 1.250 5.781 3.50 2.281 Weldon 3 TO-EXP06150RSU
1.500” 1.250 10.000 2.00 8.000 Straight 3 TO-EXP06150RLU
1.500” 1.250 12.000 2.00 10.000 Straight 3 TO-EXP06150RLLU
2.000” 1.250 4.781 2.50 2.281 Weldon 2 TO-EXP09200RU
WPMT090425Z*R
2.000” 1.250 9.750 2.00 7.750 Weldon 2 TO-EXP09200RLU

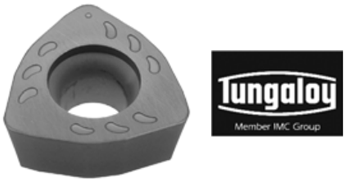

SUPER HIGH FEED INSERTS
  • Newly designed cutting edge geometry allows 3-5 times higher feed than conventional tools
  • Utilizes thicker inserts and higher clamping stability
  • Machining Capability: shouldering, grooving, ramping, plunging, traversing, englarging hole diameter
Prices are pulled from our database in real time. Press Add button to see product price.
Grade
Industry Reference Class AH120 AH140 T3030
WPMT05H315ZPR-ML M TO-8575
TO-8576
TO-8577
WPMT05H315ZPRMH M TO-8573
TO-8574
-
WPMT060415ZPR-ML M TO-8781
TO-8782
TO-8780
WPMT060415ZPR-MH M TO-8783
TO-8784
-
WPMT080615ZSR M TO-8578
TO-8579
TO-8580
WPMT080615ZPR-ML M TO-8734
TO-8735
TO-8736
WPMT080615ZSR-MH M TO-8742
TO-8743
-
WPMT090725ZSR M TO-8729
TO-8730
-
WPMT090725ZPR-ML M TO-8731
TO-8740
TO-8741
WPMT090725ZSR-MH M TO-8732
TO-8733
-

REPLACEMENT PARTS
Cutter Model Clamping
Screw		 Clamp
Set		 Wrench
EXP05 TO-CSPB-3.5S - TO-IP-15D
EXP06 TO-CSPB-4S TO-CSY-15 -
EXP09 TO-CSPB-5 TO-CSY-20 TO-IP-20T
TXP05 TO-CSPB-3.5S - TO-IP15D
TXP06 TO-CSPB-4S TO-CSY15 TO-IP15D
TXP08 TO-CSTB5 TO-CSX20 TO-T20T
TXP09 TO-CSTPB5 TO-CSY20 TO-IP20T
