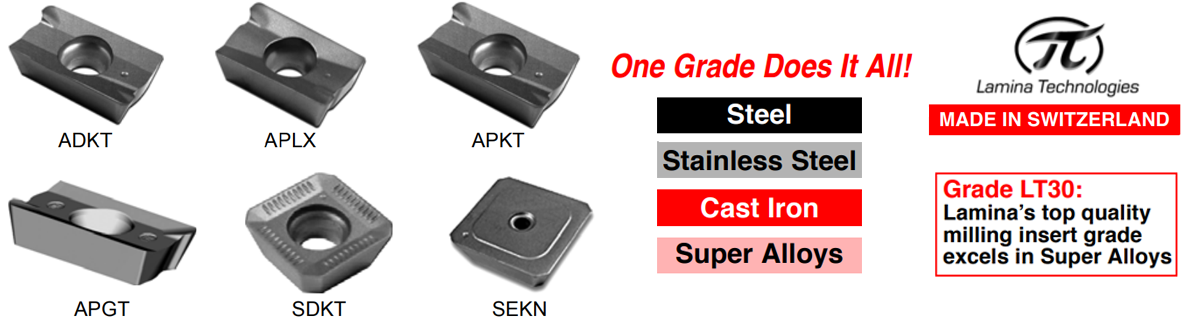

Multi-Material Grade Carbide Milling Inserts
One Grade Offers Outstanding Performance On All Materials
- Lamina’s “Multi-MAT®” technology works on any material-Always have the correct grade available and reduce machine idle time!
- Only one grade is needed for all materials, reducing inventory and costs
- Swiss made inserts offer unparalled quality that can perform as good as, if not better, than dedicated insert grades of competitors
- Easier to use! Less grades means less confusion for machinists. Exact cutting data is printed on each box!
| Insert Designation |
Grade | Insert Shape |
Clearance Angle |
Cutting Edge Length L |
Thick. S |
Radius | Lead Angle P |
Relief Angle D |
Part Number |
| ADKT__ Inserts-Right Hand Direction- Chamfered (CH) or Honed (H) | |||||||||
| ADKT1505 PDTR | LT 30 | 85° Paralellogram | 15° POS. | 0.6 (15mm) |
0.22 | - | 15º | ADKT1505PDTR-LA | |
| APLX 1003 PDTR | LT 30 | 11° POS. | 0.370 (10mm) |
1/8 | - | 15º | APLX1003PDTR-LA | ||
| APLX 100308 TR | LT 30 | 1/8 | 0.031 | - | APLX100308TR-LA | ||||
| APLX 100340 TR | LT 30 | 1/8 | 0.148 | - | APLX100340TR-LA | ||||
| APKT 1604 PDTR | LT 30 | 11° POS. | 0.630 (16mm) |
3/16 | - | 15º | APKT1604PDTR-LA | ||
| APKT 160424 ER | LT 30 | 3/16 | 0.091 | - | APKT160424ER-LA | ||||
| APGT 1604 PDER - Alu | LT10 | 3/16 | - | 15º | APGT1604ALU-LA | ||||
| SDKT__ Inserts-Neutral-Chamfered (0.031 Corner Edge) | |||||||||
| SDKT1204 AETN | LT 30 | Square | 15° POS. | 0.472 (12mm) |
3/16 | - | 20° | SDKT1204AETN-LA | |
| SEKN__ Inserts-Neutral-Chamfered (0.031 Corner Edge) | |||||||||
| SEKN 42 AFTN | LT 30 | Square | 20° POS. | 0.472 (12mm) |
3/16 | - | 45° | SEKN1203AFTN-LA | |
| SEKN 43 AFTN | 3/16 | - | 45° | SEKN1204AFTN-LA | |||||
