TAW 45° Lead Face Mills

TAW 45° LEAD FACE MILLS
  • 45° lead high positive high feed face mill
  • Highly rigid cutter, 20-30% lighter than competition
  • Features coolant holes and highly accurate pocket design
  • Nickel plating for corrosion and wear resistance
  • Change from 45° lead to 30° lead using “HJ” chipbreaker
  • Unique double relief angle for increased cutting edge strength and increased accuracy
Prices are pulled from our database in real time. Press Add button to see product price.

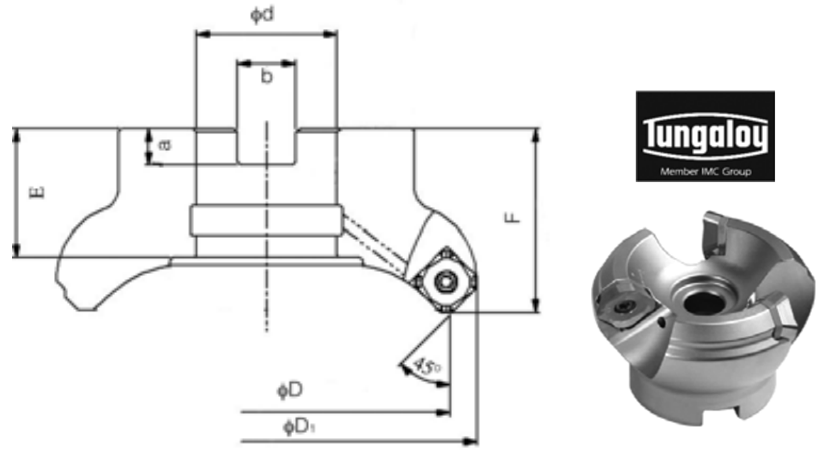

Cutting
Dia D		 No. of
Teeth		 D1 d E F a b Part Number Coolant Hole
2.00” 3 2.51 0.750 0.750 1.575 0.20 0.32 TO-TAW13R2U7503
YES
4 2.51 0.750 0.750 1.575 0.20 0.32 TO-TAW13R2U7504
YES
5 2.51 0.750 0.750 1.575 0.20 0.32 TO-TAW13R2U7505
YES
3.00” 4 3.51 1.000 1.020 1.969 0.24 0.38 TO-TAW13R3U1004
YES
6 3.51 1.000 1.020 1.969 0.24 0.38 TO-TAW13R3U1006
YES
8 3.51 1.000 1.020 1.969 0.24 0.38 TO-TAW13R3U1008
YES
4.00” 5 4.52 1.500 1.378 1.969 0.32 0.63 TO-TAW13R4U1505
YES
7 4.52 1.500 1.378 1.969 0.32 0.63 TO-TAW13R4U1507
YES
10 4.52 1.500 1.378 1.969 0.32 0.63 TO-TAW13R4U1510
YES
5.00” 6 5.51 1.500 1.457 2.480 0.39 0.63 TO-TAW13R5U1506
YES
8 5.51 1.500 1.457 2.480 0.39 0.63 TO-TAW13R5U1508
YES
12 5.51 1.500 1.457 2.480 0.39 0.63 TO-TAW13R5U1512
YES
6.00” 7 6.51 2.000 1.500 2.480 0.39 0.75 TO-TAW13R6U2007
NO
10 6.51 2.000 1.500 2.480 0.39 0.75 TO-TAW13R6U2010
NO
16 6.51 2.000 1.500 2.480 0.39 0.75 TO-TAW13R6U2016
NO

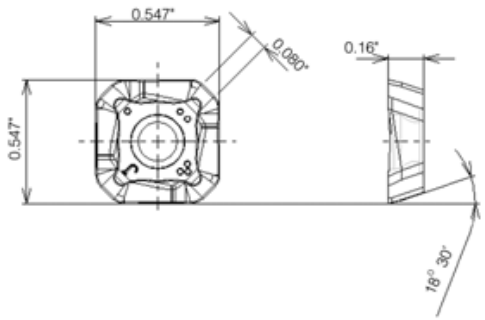

INSERTS
GRADES
Industry Reference Class Honing AH120 AH140 T3030
SWMT13T3AFPR-MJ M With TO-10021
TO-10022
TO-10025
SWMT13T3AFER-ML M With TO-10016
- -
SWMW13T3AFTR M With TO-10028
- TO-10030
SWMT13T3AFPR-HJ M With TO-10017
TO-10018
TO-10020
SWMT13T3AFPR-MS M With - TO-10026
-
SWGT13T3AFPR-MJ G Without TO-10006
- -
Shim
TO-FSSA1102		 Insert Screw
TO-CSPB-3.5		 Shim Screw
TO-DTS5-3.5SS		 Shim Wrench
TO-P-3.5		 Insert Wrench
TO-IP-15D
