TPW 90° Lead Face Mills

TPW 90° LEAD FACE MILLS

90° lead high positive high feed face mill
Highly rigid cutter, 20-30% lighter than competition
Features coolant holes and highly accurate pocket design
Nickel plating for corrosion and wear resistance
Unique double relief angle for increased cutting edge strength and increased accuracy

Prices are pulled from our database in real time. Press Add button to see product price.

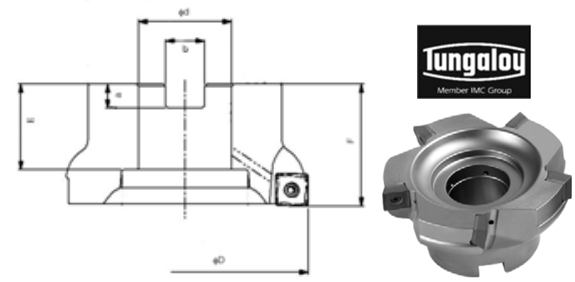

Cutting Dia D	No. of Teeth	d	E	F	a	b	Part Number
2.00”	3	0.750	0.750	1.5750	0.20	0.32	TO-TPW13R2U75A3
	4	0.750	0.750	1.5750	0.20	0.32	TO-TPW13R2U7504
	5	0.750	0.750	1.5750	0.20	0.32	TO-TPW13R2U7505
3.00”	4	1.000	1.020	1.9690	0.24	0.38	TO-TPW13R3U1004
	6	1.000	1.020	1.9690	0.24	0.38	TO-TPW13R3U1006
	8	1.000	1.020	1.9690	0.24	0.38	TO-TPW13R3U1008
4.00”	5	1.500	1.378	1.9690	0.32	0.63	TO-TPW13R4U1505
	7	1.500	1.378	1.9690	0.32	0.63	TO-TPW13R4U1507
	10	1.500	1.378	1.9690	0.32	0.63	TO-TPW13R4U1510
5.00”	6	1.500	1.457	2.4800	0.39	0.63	TO-TPW13R5U1506
	8	1.500	1.457	2.4800	0.39	0.63	TO-TPW13R5U1508
	12	1.500	1.457	2.4800	0.39	0.63	TO-TPW13R5U1512
6.00”	8	2.000	1.500	2.4800	0.39	0.75	TO-TPW13R6U2008*
	12	2.000	1.500	2.4800	0.39	0.75	TO-TPW13R6U2012*
	15	2.000	1.500	2.4800	0.39	0.75	TO-TPW13R6U0215*

INSERTS

Prices are pulled from our database in real time. Press Add button to see product price.

			GRADES				Max. DOC (in)
Industry Reference	Class	Honing	AH120	AH140	T3030	KS05F	Max. DOC (in)
SWMT1304PDPR-MJ	M	With	TO-10010	TO-10011	TO-10014	-	0.39
SWMT1304PDER-ML	M	With	TO-10009	-	-	-	0.39
SWMT1304PDPR-MS	M	With	-	TO-10015	-	-	0.39
SWGT1304PDFR-AJ	G	Without	-	-	-	TO-10003	0.39
SWGT1304PDPR-MJ	G	With	TO-10003	-	-	-	0.39
Shim TO-FSSP1102	Insert Screw TO-CSPB-3.5		Shim Screw TO-DTS5-3.5SS	Shim Wrench TO-P-3.5	Insert Wrench TO-IP-15D
