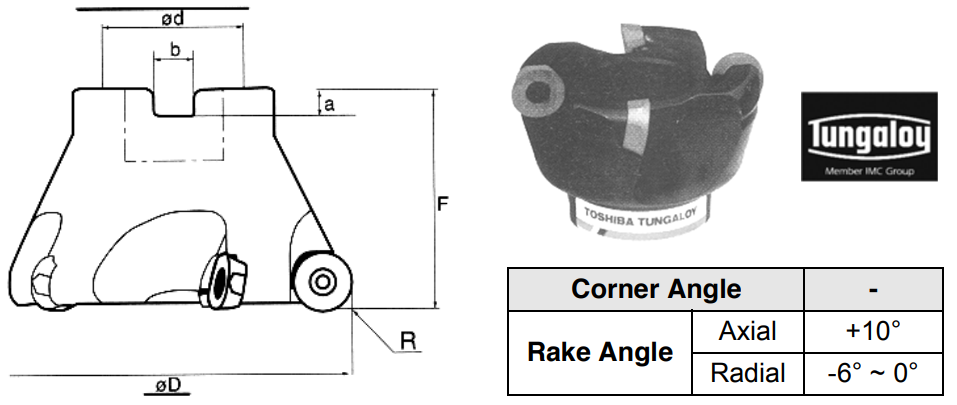

TRD Series Jetmill Round Insert Face Mill

TRD SERIES JETMILL ROUND INSERT FACE MILL
  • High Positive
  • Multi-Finctional Design
  • Capable of Plunging, Ramping and Circle Interpolation
  • High Strength Round Insert
  • High Feed Capabilities
  • Superior Surface Finishes
Prices are pulled from our database in real time. Press Add button to see product price.
Reference Number No. Of
Teeth		 Cutting Dia Shank Dia Dimensions (Inch) Wt.
Lbs.		 Part Number Insert
D (in) d (in) R F a b
TRD12050RU 4 2.000 0.750 0.236 1.563 0.197 0.315 0.600 TO-TRD12050RU
RDMT 12
TRD16080RU 4 3.150 1.000 0.315 1.969 0.236 0.374 1.600 TO-TRD16080RU
RDMT 16
TRD16100RU 5 3.937 1.250 0.315 1.969 0.315 0.500 2.200 TO-TRD16100RU
RDMT 16
TRD16125RU 6 4.921 1.500 0.315 2.480 0.394 0.626 5.300 TO-TRD16125RU
RDMT 16

INSERTS
Prices are pulled from our database in real time. Press Add button to see product price.

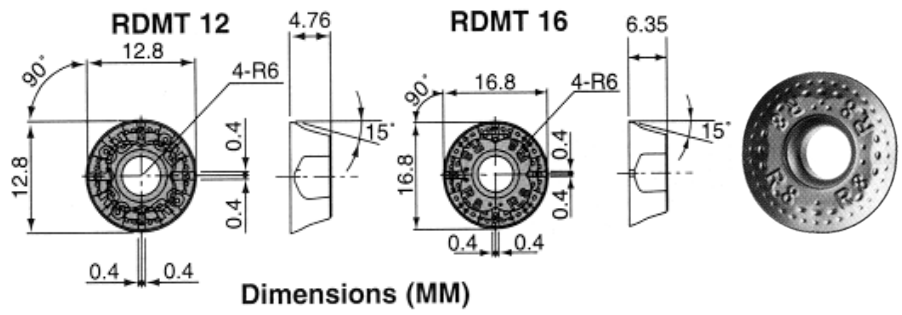

INSERTS FOR TRD SERIES JETMILL
Reference Number Class Grade Part Number
RDMT1204ZDPN-MJ M AH120 TO-2051
RDMT1606ZDPN-MJ M AH120 TO-2053

REPLACEMENT PARTS
Part TO-TRD12050 TO-TRD12080/100/125
Screw TO-CSTB3.5
TO-CSTB5
Wrench TO-T-15D
TO-T-20D

RECOMMENDED CUTTING CONDITIONS
Work Materials Recommended Grade Chip Breaker Roughing Finishing
sfm ipt sfm ipt
Mild Steels AH120 MJ 400~700 0.012~0.020 400~700 0.012~0.024
Alloy Steels /300HB AH120 MJ 350~650 0.008~0.018 350~650 0.008~0.020
Medium Carbon Steels 250HB AH120 MJ 400~700 0.012~0.020 400~700 0.012~0.024
Stainless Steels AH120 MJ 300~600 0.006~0.018 300~600 0.008~0.020
Die Steels AH120 MJ 250~600 0.008~0.014 250~600 0.010~0.018
Cast Irons AH120 MJ 400~800 0.012~0.020 400~800 0.012~0.024
Super Alloys AH120 MJ 125~250 0.004~0.010 125~250 0.004~0.012
