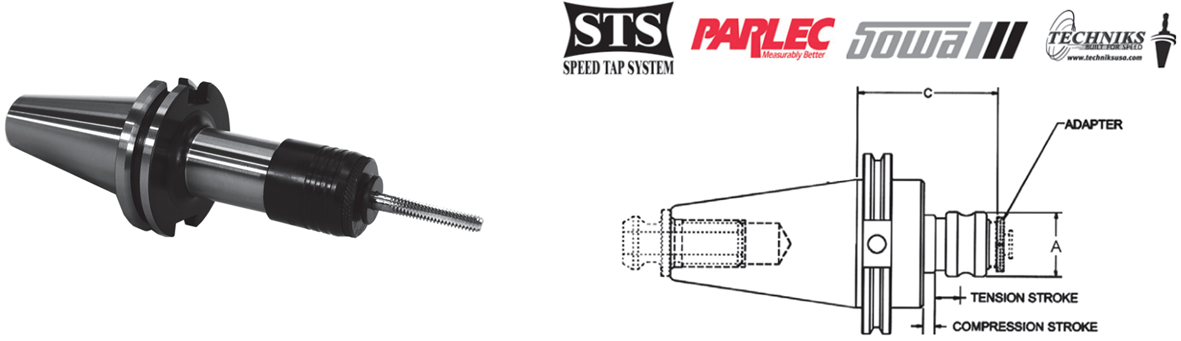

BT 40 Taper Quick Change Tap Holders

BT TAPER TAP HOLDERS
Tension / Compression and Rigid Tapping

For use with Industry Standard Quick-Change Tap Collets
Available for tension/compression or rigid tapping

Prices are pulled from our database in real time. Press Add button to see product price.

BT 40 TAPER
Adapter Size	Capacity	C Proj	Comp	Tension	A Dia	Brand	Part Number	Code
TENSION/COMPRESSION
1	#0 - 9/16" Hand, 1/16" & 1/8" NPT	2.650	0.295	0.295	1.417	STS	B40-10TA265-U	D
	#0 - 9/16" Hand, 1/16" & 1/8" NPT	4.080	0.250	0.560	1.390	Parlec	B40-10TA408-P	B
	#0 - 9/16" Hand, 1/8" NPT	3.800	0.290	0.290	1.430	Sowa	B40-10TA380-G	C
2	5/16" - 7/8" Hand, 1/4", 3/8" & 1/2" NPT	3.720	0.492	0.492	2.087	STS	B40-20TA372-U	D
2	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	4.500	0.490	0.490	2.090	Sowa	B40-20TA450-G	C
3	13/16"-1-3/8" Hand, 3/4"-1" NPT	6.450	0.787	0.787	3.070	STS	B40-30TA645-U	D
3	13/16" - 1 3/8" Hand, 1/2" - 1" NPT	7.500	0.790	0.790	3.070	Sowa	B40-30TA750-G	C
RIGID TAPPING
1	#0 - 9/16" Hand, 1/8" NPT	3.020	Rigid	Rigid	1.250	Sowa	B40-10FS302-G	C
2	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	3.660	Rigid	Rigid	2.000	Sowa	B40-20FS366-GB	C
