CAT 50 Taper Quick Change V-Flange Tap Holders

V-FLANGE TAP HOLDERS
Tension / Compression and Synchronous Tapping
For use with Industry Standard Quick-Change Tap Collets
Prices are pulled from our database in real time. Press Add button to see product price.
CAT 50 TAPER

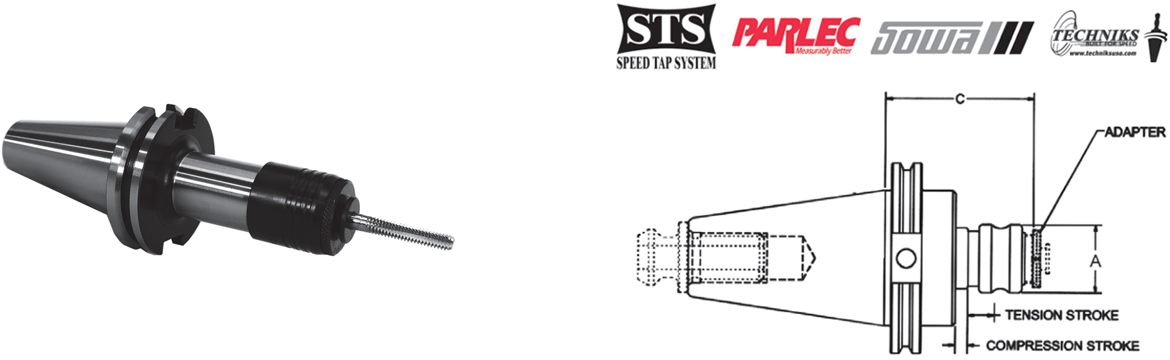

Adapter Size Capacity C Proj Comp Tension A Dia Brand Part Number Code
TENSION/COMPRESSION
1 #0 - 9/16" Hand,
1/16" & 1/8" NPT
3.15 0.250 0.560 1.390 Parlec C50-10TA315-P
B
3.52 0.300 0.300 1.417 STS C50-10TA352-U
D
#0 - 9/16" Hand,
1/8" NPT
4.00 0.290 0.290 1.430 Sowa C50-10TA400-G
C
5.02 0.390 0.790 1.250 Sowa C50-10TA502-G
C
2 5/16" - 7/8" Hand,
1/4",3/8" & 1/2" NPT
3.93 0.492 0.492 2.080 STS C50-20TA393-U
D
5/16" - 7/8" Hand,
1/4" - 1/2" NPT
4.25 0.250 0.560 2.180 Parlec C50-20TA425-P
B
5.66 0.490 0.850 2.000 Sowa C50-20TA566-G
C
3 13/16" - 1 3/8" Hand,
3/4" - 1" NPT
5.65 0.250 0.560 3.260 Parlec C50-30TA565-P
B
5.78 0.787 0.787 3.070 STS C50-30TA578-U
D
13/16" - 1 3/8" Hand,
1/2" - 1" NPT
6.25 0.790 0.790 3.070 Sowa C50-30TA625-G
C
7.72 0.590 0.980 2.870 Sowa C50-30TA772-G
C
RIGID TAPPING
1 #0 - 9/16" Hand,
1/8" NPT
3.020 Rigid Rigid 1.250 Sowa C50-10FS302-G
C
#0-9/16" Hand,
1/16" & 1/8" NPT
3.440 Rigid Rigid 1.250 STS C50-10FS344-U
D
2 5/16"-7/8" Hand,
1/4", 3/8" & 1/2" NPT
3.540 Rigid Rigid 1.960 STS C50-20FS354-U
D
5/16" - 7/8" Hand,
1/4" - 1/2" NPT
3.910 Rigid Rigid 2.000 Sowa C50-20FS391-G
C
3 13/16"-1 3/8" Hand,
1/2"-1" NPT
4.980 Rigid Rigid 2.870 Sowa C50-30FS498-G
C
13/16" - 1 3/8" Hand,
3/4" - 1" NPT
4.720 Rigid Rigid 2.830 STS C50-30FS472-U
D
5.650 Rigid Rigid 3.260 Parlec C50-30FS565-P
B
