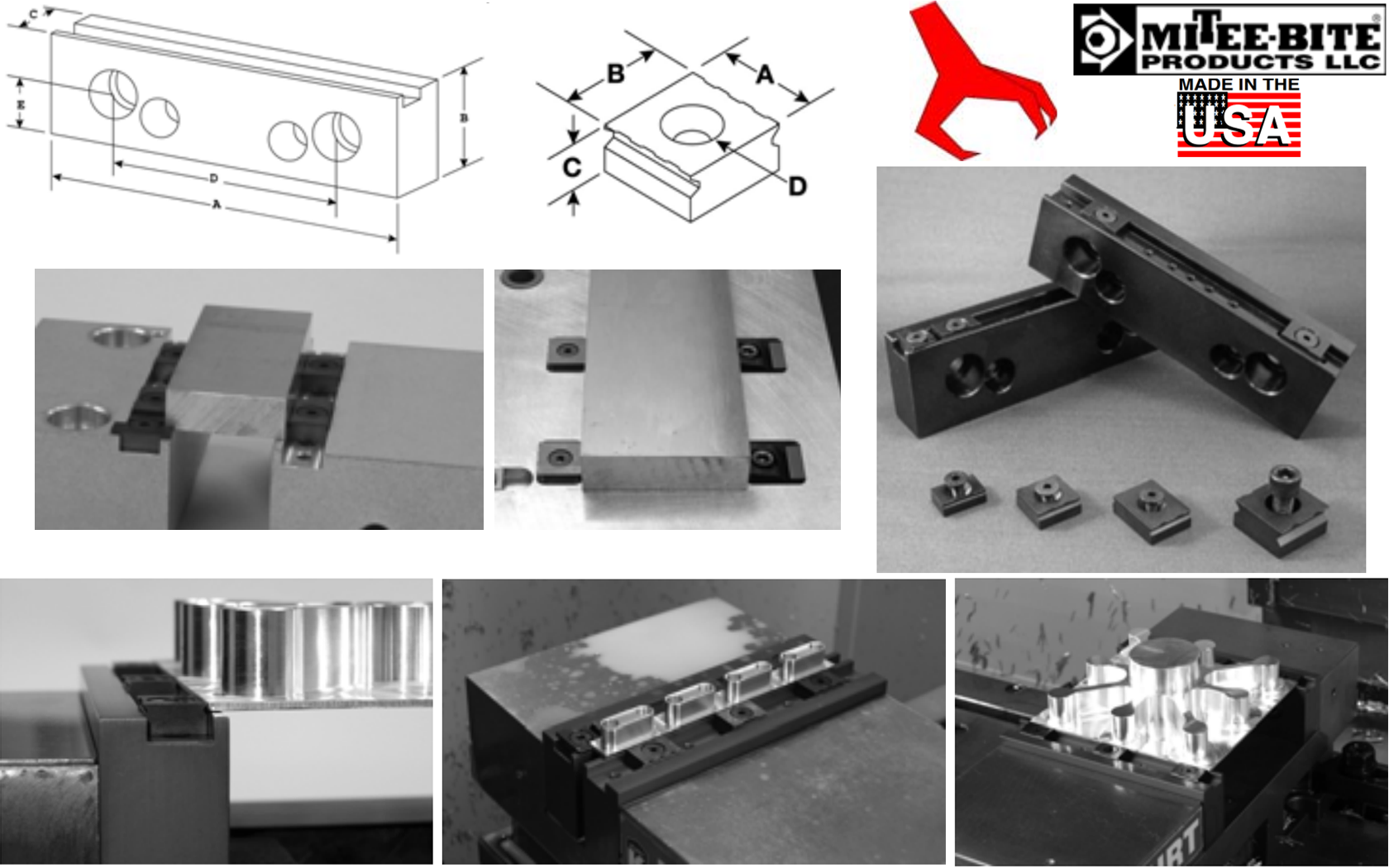

Talon Grip Vice Jaw System
This new and innovative product will increase the functionality of your standard 4 and 6 inch vises. TalonGrip™ is a simplet bolt on system that will allow you to perform aggressive machining operations while clamping on as little as .060 of an inch. Ideal for small lot sizes, difficult applications or proto-type work when building a fixture would not be beneficial. TalonGrips™ are also available individually for fixturing with the Mitee-Bite Pitbull® Clamp or soft jaw applications.
Prices are pulled from our database in real time. Press Add button to see product price.
Steel Vise Jaw Set-includes 4 Talongrips™, 1 Stop W/ M5 Screws
| Vise | A | B | C | D | E | Part Number |
| 4” 4"/6” 6” |
1.0 1.0 1.0 |
2.5 2.5/3.88 3.88 |
.688 .688/.94 0.94 |
4.0 6.0 8.0 |
1.49 1.74 1.74 |
MITEE-32044
MITEE-32066 MITEE-32068 |
Vise Jaw Grips & Stops
| Description | A | B | C | D | Rec.Grip Height | Part Number |
| Extra Grips (2) | 0.75 | 0.5 | 0.25 | 10-32 M5 |
.060-.075 .060-.075 |
MITEE-32050
MITEE-33050 |
| Extra Stops (1) | - - |
- - |
- - |
10-32 M5 |
- - |
MITEE-32025
MITEE-33025 |
