Vice Work Stops
Versatile, quick mounting work stops will work above jaws when gang mounting vises and space for a workstop does not exist. These work stops permit fast, accurate position on repetitive work. Teams up with your precision vise for accurate parts production. Prices are pulled from our database in real time. Press Add button to see product price.
| Vise Model | Part Number |
| 3-4" Vises | KURT-D30-45 |
| 5-6" Vises | KURT-360PWS |
| 8" Vises | KURT-D80WS |
- Does not interfere with parts or spindle
- Single bolt design used for tightening workstop
| See Fig. | Description | Part Number |
| 1 | Workstop assembly suitable for 2-6” jaw plates | KURT-WSRL46 |
| 2 | Extended length workstop assembly suitable to use with 4-6” jaw on outside. | KURT-WSRLE46 |
| 3 | 6” GrooveLock Jawplate (not reversible) | KURT-D60-315 |
| 4 | 4” GrooveLock Jawplate (not reversible) | KURT-D40-315 |
| 5 | Replacement Clamp Assembly | KURT-WSRL4686SA |

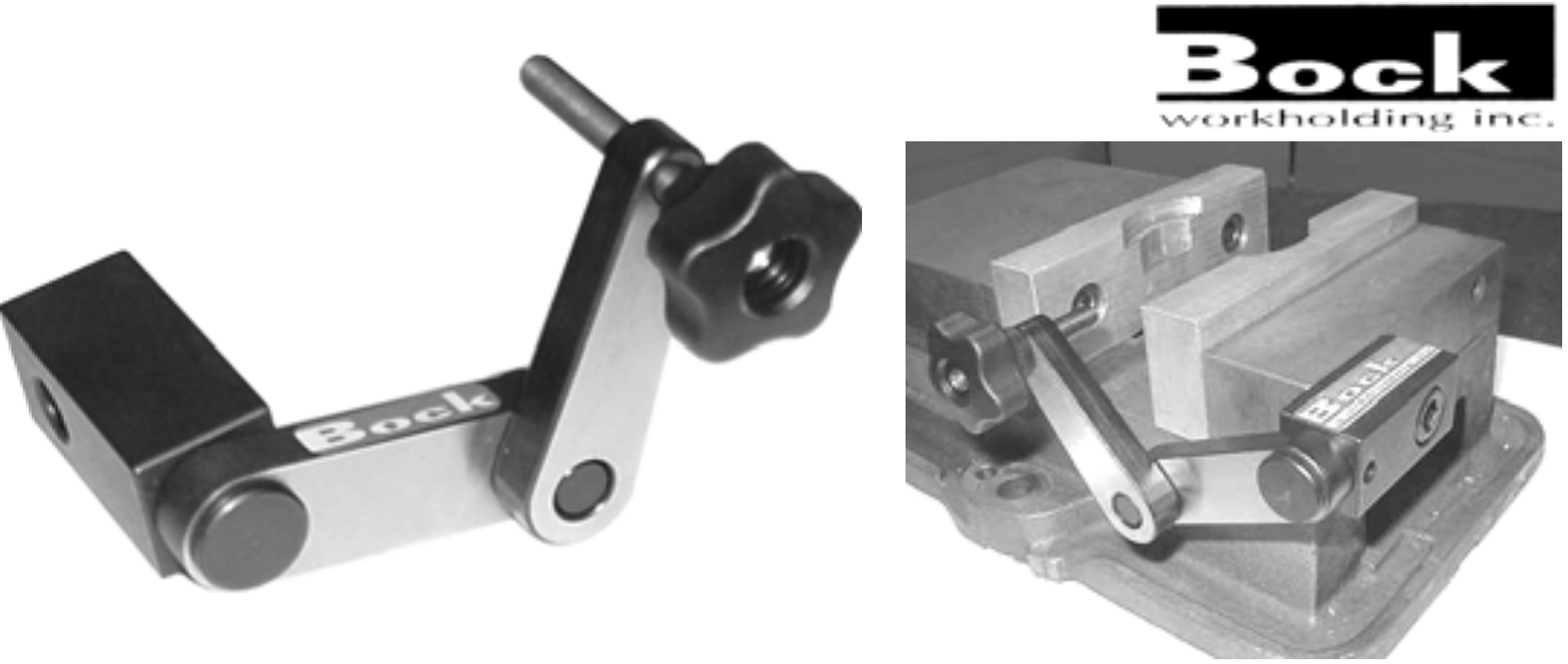

For easy & accurate repeat set-ups! Prices are pulled from our database in real time. Press Add button to see product price.
| Description | Part Number |
| Single Station | BOCK-49459 |
| Dual Station | BOCK-49444 |
FEATURES:
- Body clamp has 2” adjustment
- 3” long stop pin for fast set-ups
- Versatile and economical!
- Black oxide finish
- Fast accurate positioning of parts
- Short & long spacers available
| Description | Part Number |
| Workstop | KURT-6AWS |
| Short Spacer | KURT-6AWS-288 |
| Long Spacer | KURT-6AWS-289 |

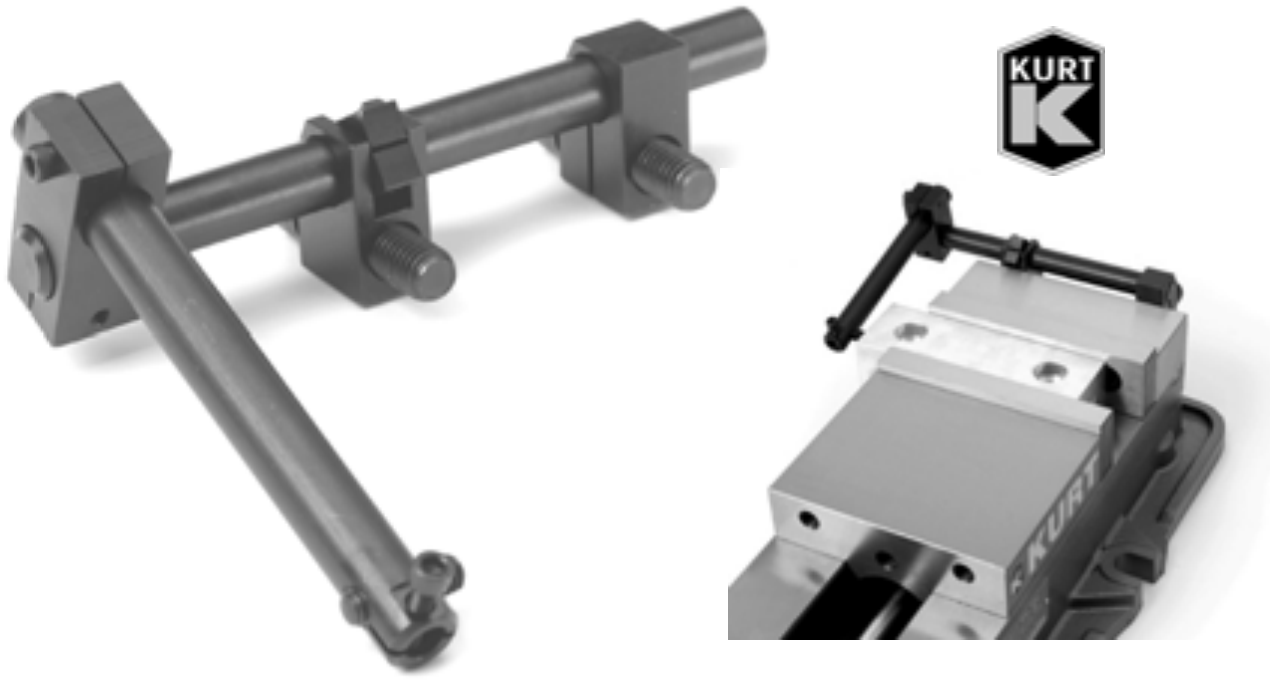

Fits Anglock type vises
- Single thumb screw tightens clamp to vise jaw.
- Two ground pins on both sides of clamp.
- Easily mounts to the top of most vise jaws.
- 1 piece clamping screws.
| Capacity | Part Number |
| 3/4” | VWS-750 |
| 7/8” | VWS-875 |
Fits 6” Anglock type vises
FEATURES:
- Permits Fast, completely accurate positioning of repetitive work.
- Fits 6” vises
- Weight: 0.18 lbs.
| Part Number | Code |
| MVS-600 | F |
- Serves as a rigid stop for milling setups.
- For use with vises, angle plates and jigs.
- Usable as a versatile holder, as well as a workstop.
Column: 3/4” x 6-1/4”
Base: 3/4” x 2” x 4-1/2”
Rod: 3/8” x 10”
Weight: 3.4 lbs Prices are pulled from our database in real time. Press Add button to see product price.
| Description | Part Number |
| Universal Workstop | AUS-600 |

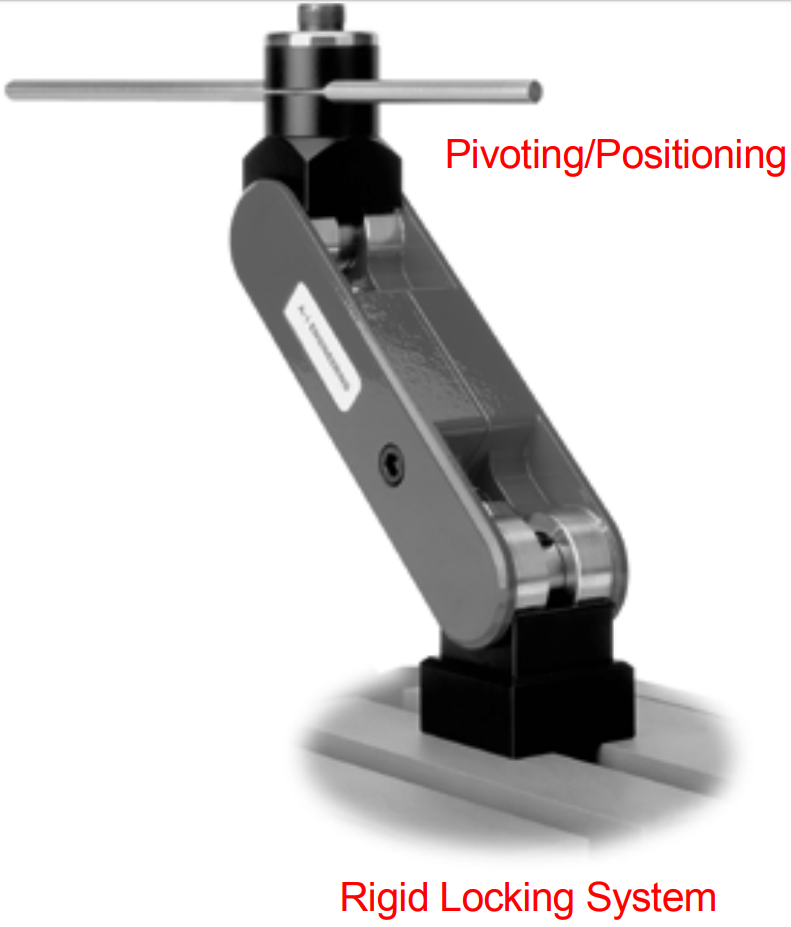

New advanced single mount, swivel-action work stop tool for cnc machine centers, milling machines and drill presses.
FEATURES:
- Saves time and increases efficiency.
- Fast set-up time.
- Quick and accurate repetitive positioning.
- Locks in rigid.
- Quick/universal machine installation.
- Versatile job applications.
| Size | Color | Part Number |
| 6” | Purple | A-1-P6-5A |
| 8” | Red | A-1-R8-5A |
| 10” | Yellow | A-1-Y10-5A |
