DYNA-FORCE CLAMP

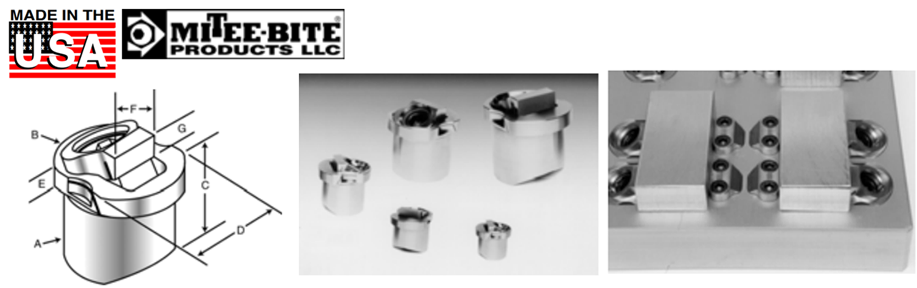

The majority of the Dyna-Force Clamp is below the surface of the fixture which provides excellent clamp support and makes for a very low profile. The clamp jaw, which is relief cut for maximum contact with the workpiece, slides on an angle for positive downforce. Clamp jaw is available with smooth or serrated faces. Prices are pulled from our database in real time. Press Add button to see product price.

A*	B	C	D	E	F	Min. G	Recom. G	Max G	Clamp Travel	Drive Screw	Key Size	Clamp Jaw & Hardiness	Part Number
20.00	24.90	19.00	19.90	4.50	13.50	3.25	5.00	6.75	2.0	6mm	5mm	Smooth 34RC	MITEE-28314 Add
												Serrated 44RC	MITEE-28318 Add
25.00	29.90	24.00	24.90	5.00	15.00	4.50	6.50	8.35	2.2	8mm	6mm	Smooth 34RC	MITEE-28320 Add
												Serrated 44RC	MITEE-28322 Add
30.00	37.90	29.00	29.90	7.00	20.00	4.50	7.50	10.75	3.8	10mm	8mm	Smooth 34RC	MITEE-28324 Add
												Serrated 44RC	MITEE-28328 Add
* ”A” is body diameter					†Smooth jaw only will have relief cut.
