Fixture Clamps

FIXTURE CLAMPS

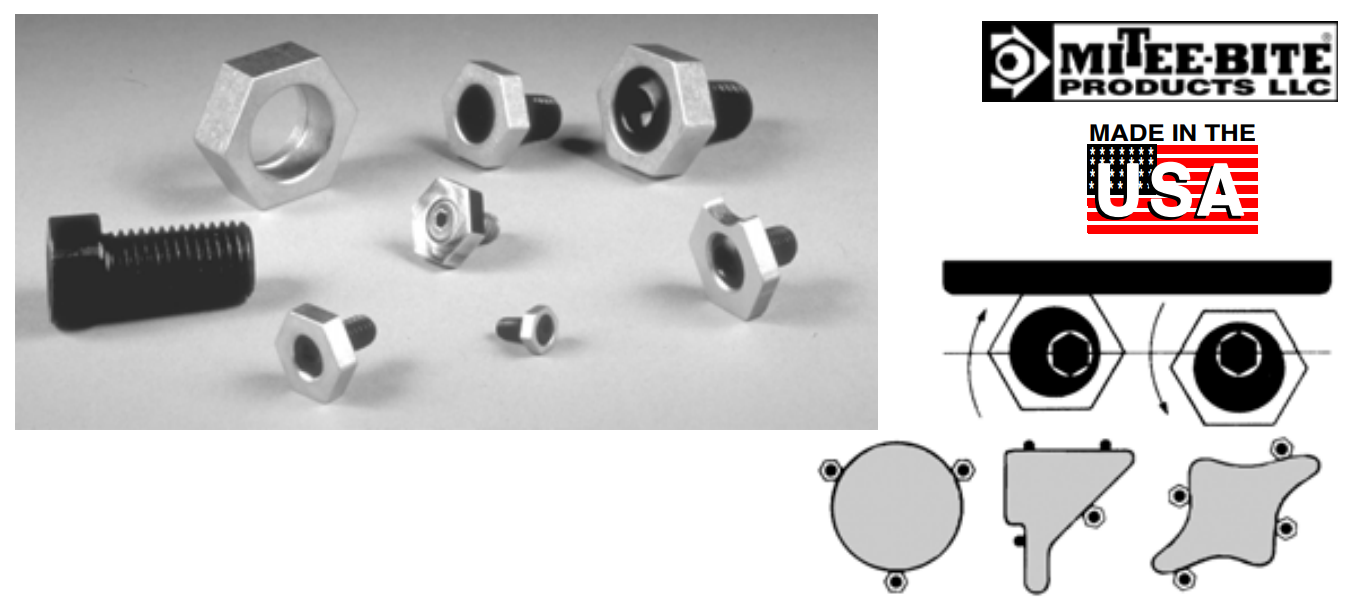

The Cam Action Mitee-Bite Fixture Clamp is made up of two simple components: a hardened steel socket cap screw with an offset head and a hexagonal washer.

• Low profile makes computer programming easier.
• Small size allows more parts per load.

Prices are pulled from our database in real time. Press Add button to see product price.

Screw Size	Thread Length	Hex Size	Hex Height	Drill & Tap Dist.†	Max Hold. Force	Total Throw	Pkg Qty	Part Number
8-32 10-32 1/4-20	3/8 3/8 1/2	5/16 1/2 5/8	.110 .160 .190	.150 .250 .308	205 lbs 350 lbs. 800 lbs.	.030 .040 .040	10 10 10	MITEE-10202 Add MITEE-10207 Add MITEE-10204 Add
5/16-24 5/16-18	1/2 1/2	13/16 13/16	.190 .190	.400 .400	750 lbs. 750 lbs.	.040 .040	12 12	MITEE-10205 Add MITEE-10201 Add
3/8-16 1/2-13 5/8-11	3/4 1 1 1/4	13/16 1 1 3/16	.250 .375 .500	.400 .500 .590	2000 lbs. 4000 lbs. 6000 lbs.	.050 .100 .100	10 8 4	MITEE-10206 Add MITEE-10208 Add MITEE-10210 Add
