ID Xpansion Clamp
The ideal way to hold multiple parts on an inside diameter for machining on your VMC or HMC. Ideal for secondary operations and easily machined to size on a lathe or mill and allow more parts per workcube or fixture plates.
Heat Treated Cone & Screw For Long Life! Prices are pulled from our database in real time. Press Add button to see product price.

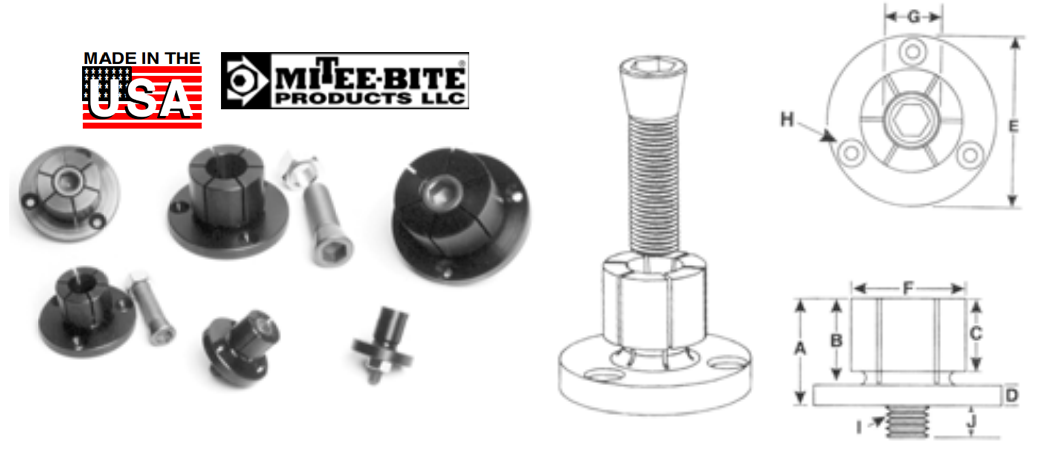

| A | B | C | D | E | F | G† | H* | I | Part Number |
| .86 .98 .98 |
.63 .75 .75 |
.59 .59 .59 |
.23 .23 .23 |
1.170 1.240 1.476 |
.49 .56 .79 |
.28 .48 .53 |
6-32 on .825 BHC 6-32 on .910 BHC 6-32 on 1.140 BHC |
8-32 1/4-20 5/16-18 |
MITEE-31050
MITEE-31100 MITEE-31150 |
| 1.13 1.25 |
.88 1.0 |
.69 .81 |
.25 .25 |
1.968 2.205 |
1.06 1.39 |
.79 1.00 |
8-32 on 1.550 BHC 8-32 on 1.790 BHC |
3/8-16 1/2-13 |
MITEE-31200
MITEE-31250 |
| 1.56 1.56 |
1.25 1.25 |
1.06 1.06 |
.31 .31 |
2.736 2.972 |
1.65 2.03 |
1.35 1.35 |
10-32 on 2.200 BHC 10-32 on 2.515 BHC |
5/8-11 5/8-11 |
MITEE-31300
MITEE-31350 |
| 1.79 | 1.48 | 1.27 | .31 | 4.232 | 3.06 | 1.35 | 1/4-20 on 3.646 BHC | 5/8-11 | MITEE-31400 |
| G† - Minimum diameter “F” dimension can be machined H* - (3) Mounting Screws | |||||||||
