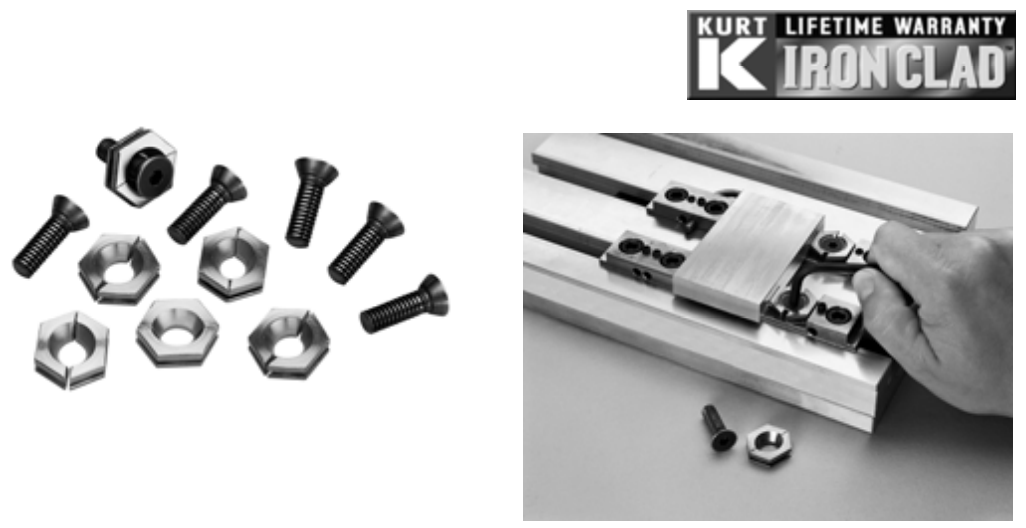

Minilock Cam Action
WORKHOLDING SYSTEM
This product employs the same AngLock concept as the world famous Kurt vises. When a quarter turn is applied to the screw, the split clamp jaw is forced both laterally and down, precisely clamping the part and preventing part lift at the same time. Prices are pulled from our database in real time. Press Add button to see product price.
| Thread | Hex Dia x Thickness | Pkg Qty | Part Number |
| 1/4-20 x .625” | .688 x .188 | 6 | KURT-MT4 |
| 5/16-18 x .750” | .875 x .250 | 6 | KURT-MT5 |
| 3/8-16 x 1.00” | .938 x .312 | 6 | KURT-MT6 |
| 1/2-13 x 1.25” | 1.125 x .375 | 6 | KURT-MT8 |
