PITBULL CLAMPS
The Pitbull™ Clamp is a unique method of holding your workpieces using a low gripping profile, generating both vertical and horizontal clamping forces. For example, the Pitbull™ Clamp which uses a 8-32 screw clamps on only .100 of an inch while generating up to 1500 lbs. of vertical and horizontal clamping forces. It uses a standard cap screw and an oil resistant O-ring, while using only a 1/2" square of your fixture space.
FEATURES:

• Extremely low bite
• Positive down force
• High resistance to rip-out
• Simple, sturdy, high quality design and components

Prices are pulled from our database in real time. Press Add button to see product price.

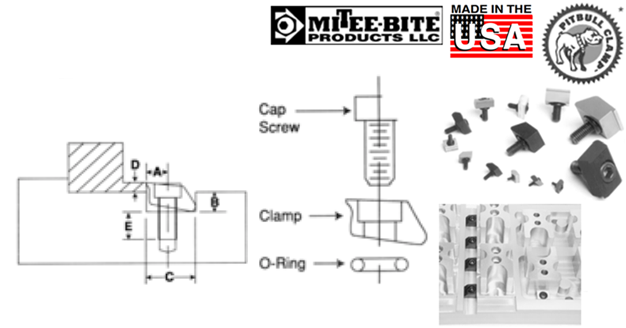

Description	A	B	C	D*	Clamp Width	Screw Size	Max Holding Force (lbs.)	Torque (in./lbs.)	Total Throw	Pkg Qty	Part Number
Tool Steel, Knife Edge Tool Steel, Blunt Edge Brass, Blunt Edge	.150 .150 .150	.140 .140 .140	.375 .375 .375	.075 .075 .075	.375 .375 .375	4-40 4-40 4-40	650 650 200	16 16 5	.0075 .0075 .0075	8 8 8	MITEE-26000 Add MITEE-26010 Add MITEE-26015 Add
Tool Steel, Knife Edge Tool Steel, Blunt Edge Brass, Blunt Edge	.200 .200 .200	.187 .187 .187	.500 .500 .500	.100 .100 .100	.500 .500 .500	8-32 8-32 8-32	1500 1500 400	50 50 25	.016 .016 .016	8 8 8	MITEE-26020 Add MITEE-26030 Add MITEE-26040 Add
Tool Steel, Knife Edge Tool Steel, Blunt Edge Brass, Blunt Edge	.300 .300 .300	.280 .280 .280	.750 .750 .750	.150 .150 .150	.750 .750 .750	1/4-20 1/4-20 1/4-20	3600 3600 950	200 200 50	.024 .024 .024	6 6 6	MITEE-26050 Add MITEE-26060 Add MITEE-26065 Add
Tool Steel, Knife Edge Tool Steel, Blunt Edge	.400 .400	.250 .250	1.00 1.00	.250 .250	1.00 1.00	3/8-16 3/8-16	6000 6000	360 360	.050 .050	4 4	MITEE-26070 Add MITEE-26075 Add
Tool Steel, Knife Edge Tool Steel, Blunt Edge	.600 .600	.375 .375	1.50 1.50	.375 .375	1.50 1.50	1/2-13 1/2-13	12000 12000	1800 1800	.075 .075	2 2	MITEE-26080 Add MITEE-26085 Add

* “D” is clamp height
