Nuzzler Edge Clamps
FEATURES:
- Clamp Material: 1018 Steel
- Black Oxide Finish

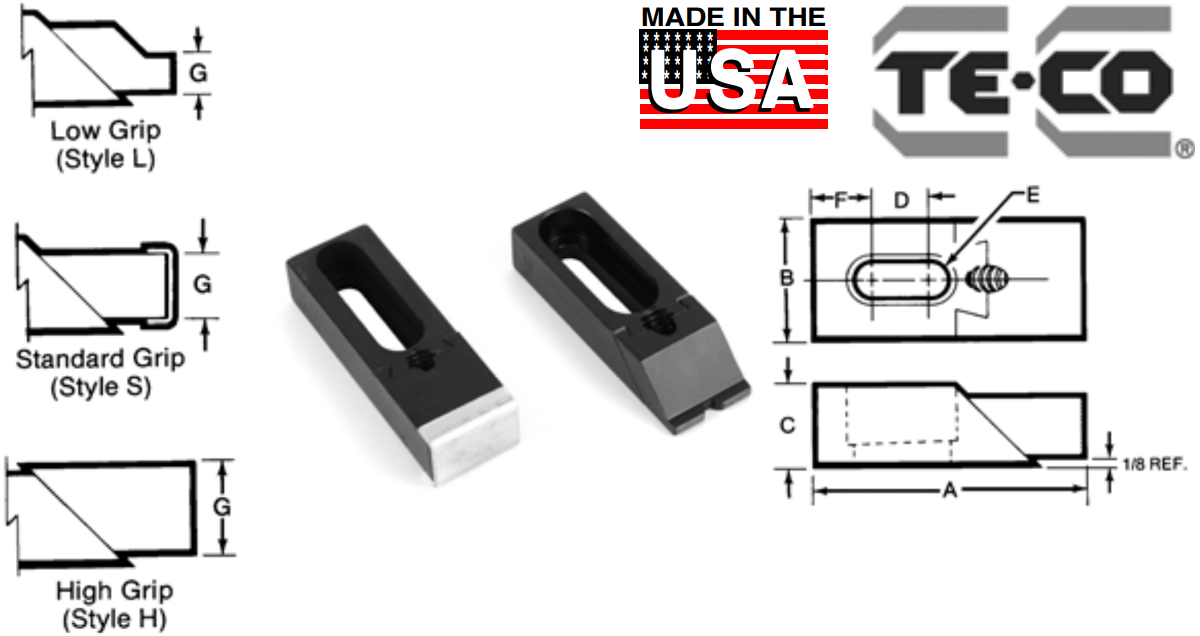

- Edge Clamps feature a double action, adjustable nose which exerts clamping pressures both downward and inward through a 45 degree angle.
- Noses have serrations for better gripping of non-finished or semi-finished workpieces.
- Tapered slots prevent clamp from sliding off the workpiece during tightening.
- Length “A” is calculated with nose raised 1/8”.
- The Low Profile Nose provides a greater machining clearance.
- Clamp Washer is included with each Edge Clamp.
| A | B | C | D | E | F | G | Wrench Size | Nose Style | Part Number |
| 1-7/8 | 1 | 5/8 | 1/4 | 5/16 | 13/32 | 1/8 | 5/32 | L | TECO-33817 |
| 5/8 | 5/32 | S | TECO-33818 | ||||||
| 2-3/8 | 1 | 5/8 | 3/4 | 5/16 | 5/16 | 1/8 | 5/32 | L | TECO-33819 |
| 5/8 | 5/32 | S | TECO-33820 | ||||||
| 2-7/8 | 1 | 5/8 | 1-1/4 | 5/16 | 5/16 | 1/8 | 5/32 | L | TECO-33821 |
| 5/8 | 5/32 | S | TECO-33822 | ||||||
| 2-15/16 | 1-1/4 | 5/8 | 3/8 | 3/8 | 7/16 | 1/4 | 3/16 | L | TECO-33801 |
| 5/8 | 3/16 | S | TECO-33802 | ||||||
| 2-3/4 | 1-1/4 | 5/8 | 13/16 | 3/8 | 1/2 | 1/4 | 3/16 | L | TECO-33890 |
| 5/8 | 3/16 | S | TECO-33891 | ||||||
| 3-5/16 | 1-1/2 | 3/4 | 3/4 | 1/2 | 11/16 | 3/8 | 1/4 | L | TECO-33805 |
| 3/4 | 1/4 | S | TECO-33806 | ||||||
| 5/8 | 5/8 | 11/16 | 3/8 | 1/4 | L | TECO-33710 | |||
| 3/4 | 1/4 | S | TECO-33711 | ||||||
| 3-7/8 | 1-1/2 | 7/8 | 1-1/4 | 1/2 | 1/2 | 1/4 | 1/4 | L | TECO-33823 |
| 7/8 | 1/4 | S | TECO-33824 | ||||||
| 5/8 | 1/2 | 1/4 | 1/4 | L | TECO-33714 | ||||
| 7/8 | 1/4 | S | TECO-33715 | ||||||
| 4-1/8 | 1-1/4 | 5/8 | 2 | 3/8 | 11/16 | 1/4 | 3/16 | L | TECO-33803 |
| 5/8 | 3/16 | S | TECO-33804 | ||||||
| 4-11/16 | 1-1/4 | 5/8 | 2-3/16 | 3/8 | 15/16 | 1/4 | 3/16 | L | TECO-33892 |
| 5/8 | 3/16 | S | TECO-33893 | ||||||
| 5-3/16 | 1-1/2 | 3/4 | 2-1/2 | 1/2 | 5/8 | 3/8 | 1/4 | L | TECO-33807 |
| 3/4 | 1/4 | S | TECO-33808 | ||||||
| 5/8 | 5/8 | 3/8 | 1/4 | L | TECO-33712 | ||||
| 3/4 | 1/4 | S | TECO-33713 |
