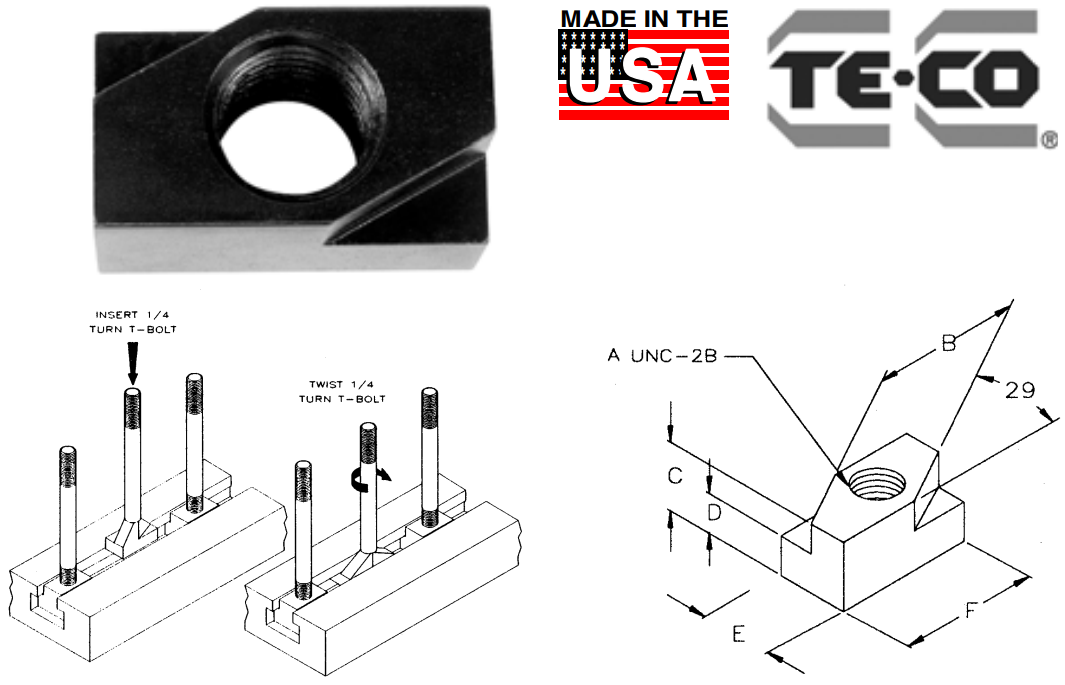

Quarter Turn T-Slot Nuts

FEATURES:
- Sintered Metal
- The last thread is incomplete on T-Slot Nuts to prevent the stud from turning through the bottom of the nut.
- Special sizes quoted upon request
- *Quarter Turn T-Slot Nuts are undersized to fit machine table slot.
Thread A |
Table Slot B |
Metric* Table Slot |
C | D | E | F | Part Number |
3/8-16 | 7/16 | 12MM | 1/2 | 0.208 | 0.438 | 0.75 | TECO-41450 |
1/2 | 12MM | 1/2 | 0.271 | 0.500 | 1 | TECO-41451 | |
1/2-13 | 9/16 | 15MM | 5/8 | 0.333 | 0.563 | 0.94 | TECO-41452 |
5/8 | 16MM | 5/8 | 0.333 | 0.625 | 1.25 | TECO-41453 | |
5/8-11 | 11/16 | 18MM | 3/4 | 0.427 | 0.688 | 1.38 | TECO-41454 |
3/4 | 20MM | 3/4 | 0.458 | 0.750 | 1.50 | TECO-41455 | |
1/2-13 | 11/16 | 18MM | 3/4 | 0.427 | 0.688 | 1.3 | TECO-41456 |
3/4-10 | 1 | 26MM | 1 | 0.615 | 1 | 1.75 | TECO-41457 |
