Aluminum Sub Plates & Mounting Clamps

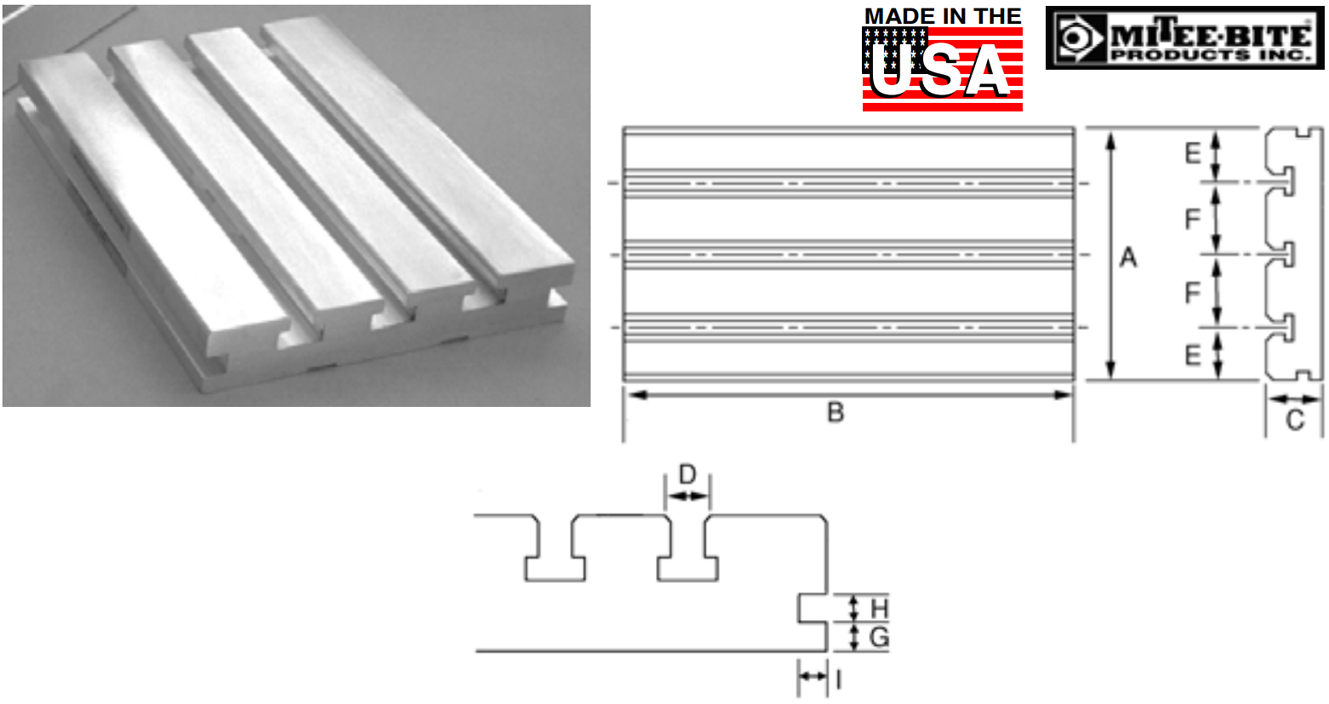

Extruded aluminum sub plates are available in standard sizes as well as special length. Plates up to 24” long are machine top and bottom to .005 flatness and parallelism per foot. Prices are pulled from our database in real time. Press Add button to see product price.
| A x B x C | D | Slots | E | F | G | H | I | Part Number |
| 9.0 x 13.0 x 1.48 9.0 x 18.0 x 1.48 |
5/8 5/8 |
3 3 |
2.00 2.00 |
2.50 2.50 |
.50 .50 |
.50 .50 |
.50 .50 |
MITEE-22913
MITEE-22918 |

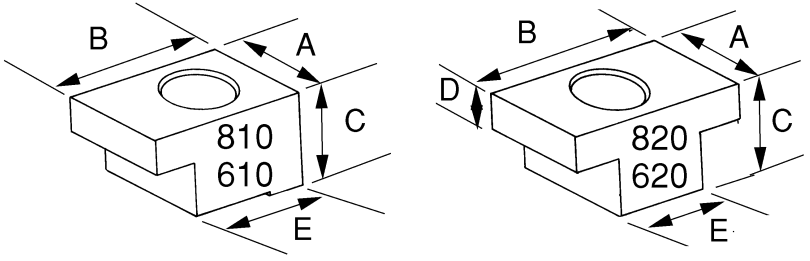

Clamps for mounting sub plates and many types of vises. Prices are pulled from our database in real time. Press Add button to see product price.
| Size | A | B | C | D | E | Part Number |
| 1/2 | 1.25 | 1.50 | .87 | .35 | 1.10 | MITEE-22810 |
