Tombstones / Tooling Columns

TOMBSTONES-CAST IRON

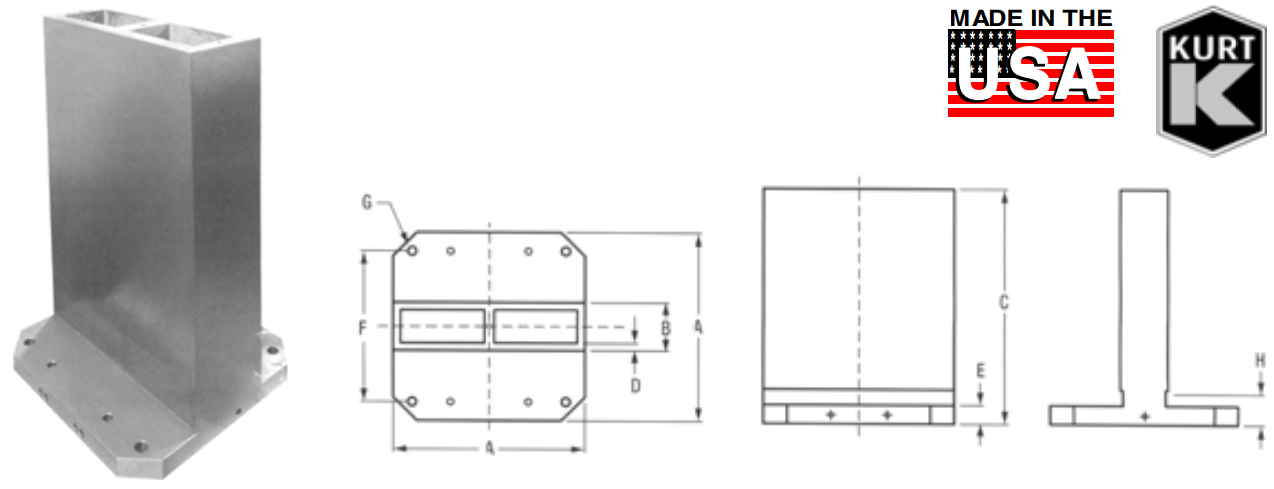

The KURT 2 face ToolBlox is ideal for mounting vises. Sub-plates (also available) may be bolted and dowelled on either side for quick, easy set-up. All vises or collet chucks may be mounted directly on ToolBlox fraces. Made of Class-35 cast iron. Prices are pulled from our database in real time. Press Add button to see product price.
2 Face ToolBlox™

A	B	C	D	E	F	G	H	Wght lbs	Part Number
400mm X 400mm 500mm X 500mm	6 8	26 34	1.50 1.50	1.50 1.75	320mm 400mm	5/8" or M16 5/8" or M16	2.25 2.50	516 908	KURT-TB2C40616 Add KURT-TB2C50820 Add

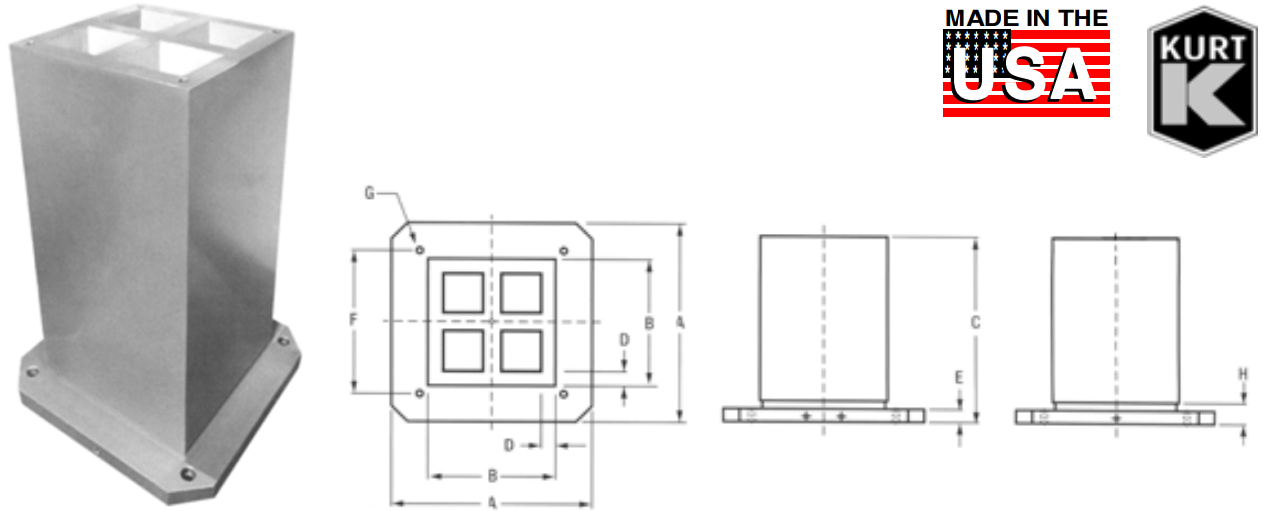

The KURT 4 face ToolBlox is ideal for mounting vises of any size. Made of Class-35 cast iron. Prices are pulled from our database in real time. Press Add button to see product price.
4 Face ToolBlox™

A	B	C	D	E	F	G	H	Wght lbs	Part Number
400mm X 400mm 400mm X 400mm 400mm X 400mm	6 8 10	26 26 26	1.50 1.50 1.50	1.50 1.50 1.50	320mm 320mm 320mm	5/8" or M16 5/8" or M16 5/8" or M16	2.25 2.25 2.25	282 359 436	KURT-TB4C40606 Add KURT-TB4C40808 Add KURT-TB4C41010 Add
500mm X 500mm 500mm X 500mm 500mm X 500mm 500mm X 500mm	8 10 12 14	34 34 34 34	1.50 1.50 1.50 1.50	1.75 1.75 1.75 1.75	400mm 400mm 400mm 400mm	5/8" or M16 5/8" or M16 5/8" or M16 5/8" or M16	2.50 2.50 2.50 2.50	522 626 734 970	KURT-TB4C50808 Add KURT-TB4C51010 Add KURT-TB4C51212 Add KURT-TB4C51414 Add

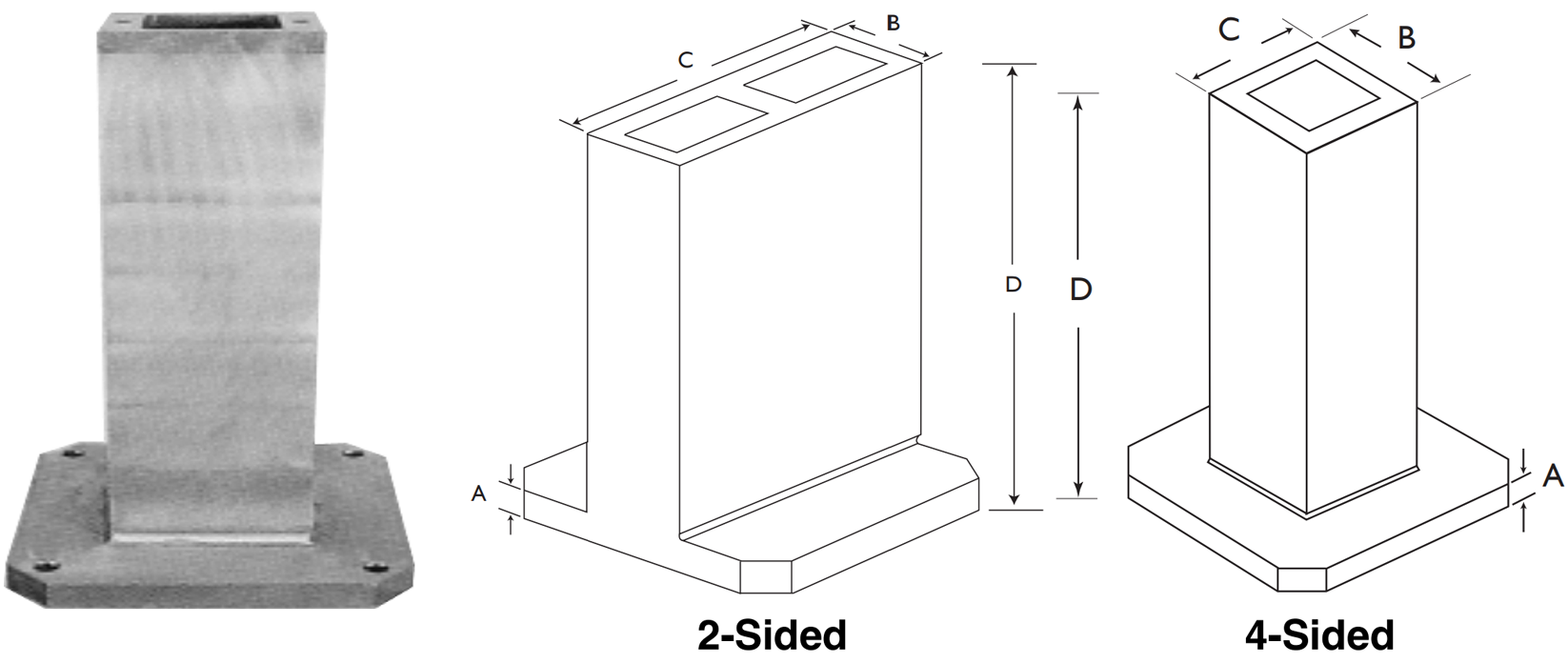

TOMBSTONES-ALUMINUM, CAST IRON & STEEL
We are the best source for top quality tooling columns. For your convenience, we use several excellent vendors throughout the country in order to provide you with the lowest prices and lead time. Let us find you the tombstone you require with less lead time and the right price! Available in Aluminum, Cast Iron and Steel
Styles Available:

• Square
• “T”
• Window
• Square
• Round/Hexagon/Octagon
• Tringle
• “Y” Shaped
• Cross Shaped
• Sub-Plates and Locating Plates

Call Us For A Quote!
We Offer

• The Best Prices
• The Fastest Delivery
• The Best Quality
