BARS FOR INTERNAL GROOVING & THREADING
From either of the two insert tables above match the IC of the insert to the holders in the table below to get matched Inserts and Holders for your needs. Prices are pulled from our database in real time. Press Add button to see product price.
| Left/ Right |
Insert IC |
Min Bore |

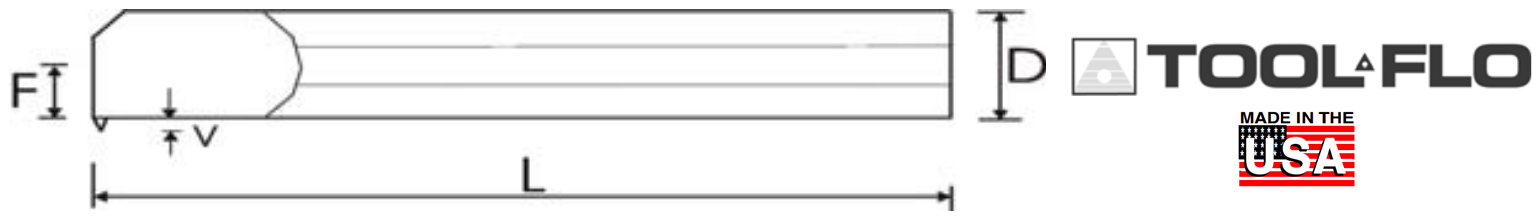

D | L | F | V | Bar Part Number |
| R | 3/8 | 1.383 | 1.000 | 14 | .687 | .120 | T-SIMTHOR163 |
| L | 1.383 | 1.000 | 14 | .687 | .120 | T-SIMTHOL163 | |
| R | 1/2 | 1.815 | 1.25 | 14 | .875 | .190 | T-SIMTHOR204 |
| L | 1.815 | 1.25 | 14 | .875 | .190 | T-SIMTHOL204 | |
| R | 1/2 | 1.892 | 1.50 | 14 | 1.000 | .190 | T-SIMTHOR244 |
| L | 1.892 | 1.50 | 14 | 1.000 | .190 | T-SIMTHOL244 | |
| R | 5/8 | 2.125 | 1.500 | 14 | 1.073 | .220 | T-SIMTHOR245 |
| L | 21.25 | 1.500 | 14 | 1.073 | .220 | T-SIMTHOL245 | |
| R | 2.75 | 2.000 | 14 | 1.323 | .320 | T-SIMTHOR325 |
