CUT-OFF (PART-OFF) BLADES
Dorian and Newcomer Blades and Inserts are interchangeable with Iscar® _GTN type holders. NS is the original Iscar design of blades, while PS is the newer Iscar design. Inserts interchangeable with other industry standard blades Prices are pulled from our database in real time. Press Add button to see product price.

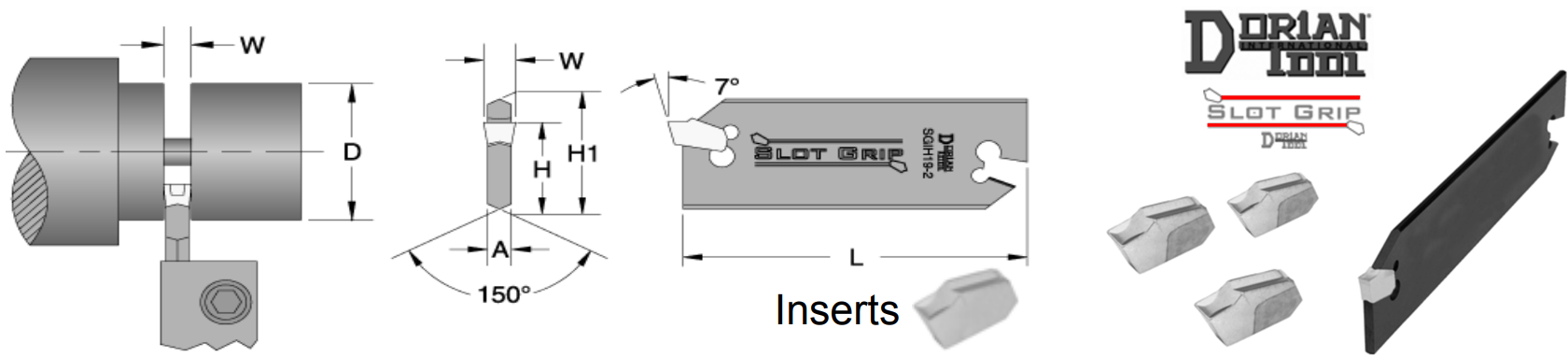

Industry Standard Number	Positive Stop Blade Part Number	Max work Dia	Insert Reference Number	W Inches	W mm	A	L	H	H1
_GIH19-2	DN62950 Add	1.57”	_GT(N/R/L)-2	0.087	2	0.063	3.38	0.618	0.75
_GIH26-2	DN62951 Add	2.0”	_GT(N/R/L)-2	0.087	2	0.063	4.33	0.842	1.02
_GIH26-3	DN62952 Add	3.0”	_GT(N/R/L)-3	0.122	3	0.094	4.33	0.842	1.02
_GIH26-4	DN62953 Add	3.15”	_GT(N/R/L)-4	0.161	4	0.125	4.33	0.842	1.02
_GIH26-5	DN62954 Add	3.15”	_GT(N/R/L)-5	0.201	5	0.156	4.33	0.842	1.02
_GIH26-6	DN62955 Add	3.15”	_GT(N/R/L)-6	0.252	6	0.203	4.33	0.842	1.02
_GIH32-3	DN62956 Add	3.94”	_GT(N/R/L)-3	0.122	3	0.094	5.9	0.984	1.25
_GIH32-4	DN62957 Add	3.94”	_GT(N/R/L)-4	0.161	4	0.125	5.9	0.984	1.25
_GIH32-5	DN62958 Add	4.71”	_GT(N/R/L)-5	0.201	5	0.156	5.9	0.984	1.25
_GIH32-6	DN62959 Add	4.72”	_GT(N/R/L)-6	0.252	6	0.203	5.9	0.984	1.25
_GIH32-8	DN62960 Add	5.51”	_GT(N/R/L)-8	0.315	8	0.268	5.9	0.984	1.25
_GIH32-9	DN62961 Add	5.51”	_GT(N/R/L)-9	0.378	9	0.312	5.9	0.984	1.25

CUT-OFF INSERTS Prices are pulled from our database in real time. Press Add button to see product price.

Insert Ref#	Insert size	W width ±.004”	W width mm.	L Lead Angle	Uncoated C2	Uncoated C5	Coated C5-C6
_GTN-2	2	0.087	2mm	0°	DN82220 Add	DN82221 Add	DN82222 Add
_GTR-2-8	2	0.087	2mm	8°	DN82248 Add	DN82249 Add	DN82250 Add
_GTL-2-8	2	0.087	2mm	8°	DN82276 Add	DN82277 Add	DN82278 Add
_GTN-2.4	2	0.093	2mm	0°	-	-	-
_GTR-2.4-8	2	0.093	2mm	8°	-	-	-
_GTL-2.4-8	2	0.093	2mm	8°	-	-	-
_GTN-3	3	0.12	3mm	0°	DN82224 Add	DN82225 Add	DN82226 Add
_GTR-3-8	3	0.12	3mm	8°	DN82252 Add	DN82253 Add	DN82254 Add
_GTL-3-8	3	0.12	3mm	8°	DN82280 Add	DN82281 Add	DN82282 Add
_GTN-4	4	0.16	4mm	0°	DN82228 Add	DN82229 Add	DN82230 Add
_GTR-4-8	4	0.16	4mm	8°	DN82256 Add	DN82257 Add	DN82258 Add
_GTL-4-8	4	0.16	4mm	8°	DN82284 Add	DN82285 Add	DN82286 Add
_GTN-4.8	4	0.187	4mm	0°	-	-	-
_GTR-4.8-8	4	0.187	4mm	8°	-	-	-
_GTL-4.8-8	4	0.187	4mm	8°	-	-	-
_GTN-5	5	0.2	5mm	0°	DN82232 Add	DN82233 Add	DN82234 Add
_GTR-5-8	5	0.2	5mm	8°	DN82260 Add	DN82261 Add	DN82262 Add
_GTL-5-8	5	0.2	5mm	8°	DN82288 Add	DN82289 Add	DN82290 Add
_GTN-6	6	0.25	6mm	0°	DN82236 Add	DN82237 Add	DN82238 Add
_GTR-6-8	6	0.25	6mm	8°	DN82264 Add	DN82265 Add	DN82266 Add
_GTL-6-8	6	0.25	6mm	8°	DN82292 Add	DN82293 Add	DN82294 Add
_GTN-8	8	0.315	8mm	0°	DN82240 Add	DN82241 Add	DN82242 Add
_GTR-8-4	8	0.315	8mm	4°	DN82268 Add	DN82269 Add	DN82270 Add
_GTL-8-4	8	0.315	8mm	4°	DN82296 Add	DN82297 Add	DN82298 Add
_GTN-9	9	0.375	9mm	0°	DN82244 Add	DN82245 Add	DN82246 Add
_GTR-9-4	9	0.375	9mm	4°	DN82272 Add	DN82273 Add	DN82274 Add
_GTL-9-4	9	0.375	9mm	4°	DN82300 Add	DN82301 Add	DN82302 Add
