Spade Drill Bodies - Straight Shank, Straight Flute
Straight Shank, Straight Flute
ALLIED® “TA” Series Compatible!
Prices Are 50% Below Mfg's List! Prices are pulled from our database in real time. Press Add button to see product price.

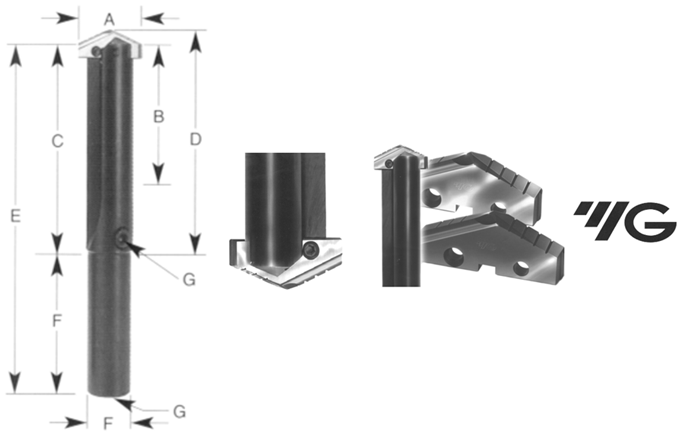

Short Length - Straight Shank Holders, Straight Flute
| A | B | C | D | E | F | F | G | ||
| Series | Drill Insert Range (inches) |
Max Drill Depth |
Flute Length |
Ref Length |
OAL | Shank Dia |
Shank Length |
Pipe Tap |
Part Number |
| Y | 3/8 to 27/64 | 1 1/4 | 2-1/32 | 2 1/8 | 4 13/32 | 3/4 | 2 3/8 | 1/8 | YG-P13Y01 |
| Z | 7/16 to 1/2 | 1 1/4 | 2-1/32 | 2 1/8 | 4 13/32 | 3/4 | 2 3/8 | 1/8 | YG-P13Z01 |
| 0 | 33/64 to 11/16 | 1 3/8 | 2-3/16 | 2 19/64 | 4 9/16 | 3/4 | 2 3/8 | 1/8 | YG-P13001 |
| 0.5 | 39/64 to 11/16 | 1 3/8 | 2-3/16 | 2 19/64 | 4 9/16 | 3/4 | 2 3/8 | 1/8 | YG-P13051 |
| 1 | 45/64 to 15/16 | 2 5/8 | 3-7/8 | 4 1/64 | 6 7/8 | 3/4 | 3 | 1/8 | YG-P13101 |
| 1 | 3 | 1/8 | YG-P13102 | ||||||
| 1.5 | 66/64 to 15/16 | 2 5/8 | 3-7/8 | 4 1/64 | 6 7/8 | 3/4 | 3 | 1/8 | YG-P13151 |
| 1 | 3 | 1/8 | YG-P13152 | ||||||
| 2 | 31/32 to 1 3/8 | 3 3/8 | 4-1/2 | 4 41/64 | 8 | 1 | 3 1/2 | 1/8 | YG-P13202 |
| 1-1/4 | 3 1/2 | 1/8 | YG-P13203 | ||||||
| 2.5 | 1 3/16 to 1 3/8 | 3 3/8 | 4-1/2 | 4 41/64 | 8 | 1 | 3 1/2 | 1/8 | YG-P13252 |
| 1-1/4 | 3 1/2 | 1/8 | YG-P13253 | ||||||
| 3 | 1 13/32 to 1 7/8 | 4 3/4 | 6 | 6 3/16 | 10 | 1-1/4 | 4 | 1/4 | YG-P13303 |
| 1-1/2 | 4 | 1/4 | YG-P13304 | ||||||
| 4 | 1 29/32 to 2 9/16 | 5 1/8 | 6-1/2 | 6 11/16 | 10 1/2 | 1-1/2 | 4 | 1/4 | YG-P13404 |
| 1-3/4 | 4 | 1/4 | YG-P13405 | ||||||
| 5 | 2 1/2 to 3 1/2 | 6 3/4 | 8-1/2 | 8 3/4 | 12 1/2 | 2 | 4 | 1/2 | YG-P13506 |
| 7-8 | 3 17/32 to 4 1/2 | 6 3/4 | 8-7/8 | 9 1/8 | 13 7/8 | 3 | 5 | 1/2 | YG-P13708 |

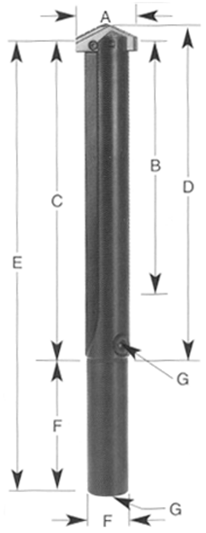

Standard Length - Straight Shank Holders, Straight Flute
| A | B | C | D | E | F | F | G | ||
| Series | Drill Insert Range (inches) |
Max Drill Depth |
Flute Length |
Ref Length |
OAL | Shank Dia |
Shank Length |
Pipe Tap |
Part Number |
| Y | 3/8 to 27/64 | 2 3/8 | 3-5/32 | 3 1/4 | 5 17/32 | 3/4 | 2 3/8 | 1/8 | YG-P15Y01 |
| Z | 7/16 to 1/2 | 2 3/8 | 3-5/32 | 3 1/4 | 5 17/32 | 3/4 | 2 3/8 | 1/8 | YG-P15Z01 |
| 0 | 33/64 to 11/16 | 2 1/2 | 3-5/16 | 3 27/64 | 5 11/16 | 3/4 | 2 3/8 | 1/8 | YG-P15001 |
| 0.5 | 39/64 to 11/16 | 2 1/2 | 3 5/16 | 3 27/64 | 5 11/16 | 3/4 | 2 3/8 | 1/8 | YG-P15051 |
| 1 | 45/64 to 15/16 | 6 5/8 | 7-7/8 | 8 1/64 | 10 7/8 | 3/4 | 3 | 1/8 | YG-P15101 |
| 1 | 3 | 1/8 | YG-P15102 | ||||||
| 1.5 | 55/64 to 15/16 | 6 5/8 | 7-7/8 | 8 1/64 | 10 7/8 | 3/4 | 3 | 1/8 | YG-P15151 |
| 1 | 3 | 1/8 | YG-P15152 | ||||||
| 2 | 31/32 to 1 3/8 | 7 3/8 | 8-1/2 | 8 41/64 | 12 | 1 | 3 1/2 | 1/8 | YG-P15202 |
| 1-1/4 | 3 1/2 | 1/8 | YG-P15203 | ||||||
| 2.5 | 1 3/16 to 1 3/8 | 7 3/8 | 8-1/2 | 8 41/64 | 12 | 1 | 3 1/2 | 1/8 | YG-P15252 |
| 1-1/4 | 3 1/2 | 1/8 | YG-P15253 | ||||||
| 3 | 1 13/32 to 1 7/8 | 8 1/4 | 9-1/2 | 9 11/16 | 13 1/2 | 1-1/4 | 4 | 1/4 | YG-P15303 |
| 1-1/2 | 4 | 1/4 | YG-P15304 | ||||||
| 4 | 1 29/32 to 2 9/16 | 9 1/8 | 10-1/2 | 10 11/16 | 14 1/2 | 1-1/2 | 4 | 1/4 | YG-P15404 |
| 1-3/4 | 4 | 1/4 | YG-P15405 | ||||||
| 5 | 2 1/2 to 3 1/2 | 10 3/4 | 12-1/2 | 12 3/4 | 16 1/2 | 2 | 4 | 1/2 | YG-P15506 |
| 7-8 | 3 17/32 to 4 1/2 | 10 3/4 | 12-7/8 | 13 1/8 | 17 7/8 | 3 | 5 | 1/2 | YG-P15708 |
