Spade Drill Bodies - Morse Taper Shank, Straight Flute & Intermediate Lenth Holders
Morse Taper Shank, Straight Flute
ALLIED® “TA” Series Compatible!
Prices are pulled from our database in real time. Press Add button to see product price.

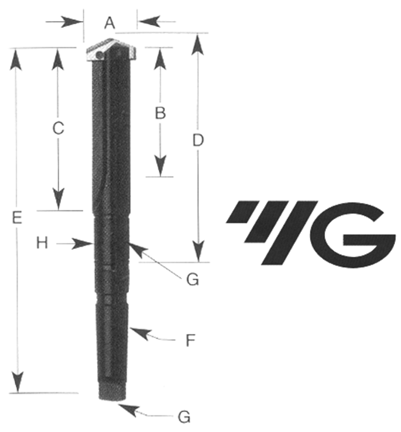

Short Length- Morse Taper Shank, Straight Flute
| A | B | C | D | E | F | G | |||
| Insert Series | Drill Insert Range (inches) |
Max Drill Depth |
Flute Length |
Ref Length |
OAL | MT | Pipe Tap |
Part Number | Coolant Inducer |
| Y | 3/8 -27/64 | 1-1/4 | 2-1/32 | 3-15/32 | 6-5/16 | #2 | 1/16 | YG-P01Y02 | YG-PR1030 |
| Z | 7/16 -1/2 | 1-1/4 | 2-1/32 | 3-15/32 | 6-5/16 | #2 | 1/16 | YG-P01Z02 | |
| 0 | 33/64 -11/16 | 1-3/8 | 2-3/16 | 3-41/64 | 6-15/32 | #2 | 1/16 | YG-P01002 | |
| 0.5 | 39/64 -11/16 | 1-3/8 | 2-3/16 | 3-41/64 | 6-15/32 | #2 | 1/16 | YG-P01052 | |
| 1 | 45/64 -15/16 | 2-3/4 | 3-7/8 | 5-39/64 | 9-5/32 | #3 | 1/8 | YG-P01103 | YG-PR1031 |
| 5-43/64 | 10-5/32 | #4 | 1/8 | YG-P01104 | |||||
| 1.5 | 55/64 -15/16 | 2-3/4 | 3-7/8 | 5-39/64 | 9-5/32 | #3 | 1/8 | YG-P01153 | YG-PR1031 |
| 5-43/64 | 10-5/32 | #4 | 1/8 | YG-P01154 | |||||
| 2 | 31/32 -1-3/8 | 3-3/8 | 4-1/2 | 6-15/64 | 9-25/32 | #3 | 1/8 | YG-P01203 | YG-PR1031 |
| 6-19/64 | 10-25/32 | #4 | 1/8 | YG-P01204 | |||||
| 2.5 | 1-3/16 -1-3/8 | 3-3/8 | 4-1/2 | 6-15/64 | 9-25/32 | #3 | 1/8 | YG-P01253 | YG-PR1031 |
| 6-37/64 | 11-1/16 | #4 | 1/4 | YG-P01254 | YG-PR1042 | ||||
| 3 | 1-13/32 -1-7/8 | 4-3/4 | 6 | 8-1/8 | 12-9/16 | #4 | 1/4 | YG-P01304 | YG-PR1042 |
| 8-1/8 | 13-13/16 | #5 | 1/4 | YG-P01305 | YG-PR1043 | ||||
| 4 | 1-29/32 -2-9/16 | 5-1/8 | 6-1/2 | 8-5/8 | 13-1/16 | #4 | 1/4 | YG-P01404 | YG-PR1042 |
| 8-5/8 | 14-5/16 | #5 | 1/4 | YG-P01405 | YG-PR1043 | ||||
| 5 | 2-1/2 -3-1/2 | 6-3/4 | 8-1/2 | 11-5/16 | 16-15/16 | #5 | 1/2 | YG-P01505 | YG-PR1054 |
| 7 | 3-17/32 -4-1/2 | 6-3/4 | 8-7/8 | 11-11/16 | 17-5/16 | #5 | 1/2 | YG-P01705 | YG-PR1054 |

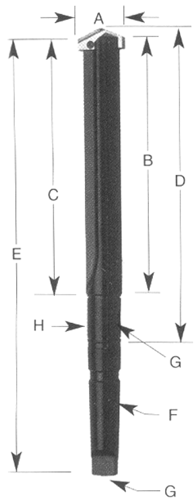

Standard Length- Morse Taper Shank, Straight Flute
| A | B | C | D | E | F | G | |||
| Insert Series | Drill Insert Range |
Max Drill Depth |
Flute Length |
Ref Length |
OAL | MT | Pipe Tap |
Part Number | Coolant Inducer |
| Y | 3/8 - 27/64 | 2-3/8 | 3-5/32 | 4-19/32 | 7-716 | #2 | 1/16 | YG-P03Y02 | YG-PR1030 |
| Z | 7/16 - 1/2 | 2-3/8 | 3-5/32 | 4-19/32 | 7-7/16 | #2 | 1/16 | YG-P03Z02 | |
| 0 | 33/64 - 11/16 | 2-1/2 | 3-5/16 | 4-49/64 | 7-19/32 | #2 | 1/16 | YG-P03002 | |
| 0.5 | 39/64 -11/16 | 2-1/2 | 3-5/16 | 4-49/64 | 7-19/32 | #2 | 1/16 | YG-P03052 | |
| 1 | 45/64 - 15/16 | 6-3/4 | 7-7/8 | 9-39/64 | 13-5/32 | #3 | 1/8 | YG-P03103 | YG-PR1031 |
| 9-43/64 | 14-5/32 | #4 | 1/8 | YG-P03104 | |||||
| 1.5 | 55/64 - 15/16 | 6-3/4 | 7-7/8 | 9-39/64 | 13-5/32 | #3 | 1/8 | YG-P03153 | YG-PR1031 |
| 9-43/64 | 14-5/32 | #4 | 1/8 | YG-P03154 | |||||
| 2 | 31/32 - 1-3/8 | 7-3/8 | 8-1/2 | 10-15/64 | 13-25/32 | #3 | 1/8 | YG-P03203 | YG-PR1031 |
| 10-19/64 | 14-25/32 | #4 | 1/8 | YG-P03204 | |||||
| 2.5 | 1-3/16 - 1-3/8 | 7-3/8 | 8-1/2 | 10-15/64 | 13-25/32 | #3 | 1/8 | YG-P03253 | YG-PR1031 |
| 10-37/64 | 15-1/16 | #4 | 1/4 | YG-P03254 | YG-PR1042 | ||||
| 3 | 1-13/32 - 1-7/8 | 8-1/4 | 9-1/2 | 11-5/8 | 16-1/16 | #4 | 1/4 | YG-P03304 | YG-PR1042 |
| 11-5/8 | 17-5/16 | #5 | 1/4 | YG-P03305 | YG-PR1043 | ||||
| 4 | 1-29/32 - 2-9/16 | 9-1/8 | 10-1/2 | 12-5/8 | 17-1/16 | #4 | 1/4 | YG-P03404 | YG-PR1042 |
| 12-5/8 | 18-5/16 | #5 | 1/4 | YG-P03405 | YG-PR1043 | ||||
| 5 | 2-1/2 - 3-1/2 | 10-3/4 | 12-1/2 | 15-5/16 | 20-5/16 | #5 | 1/2 | YG-P03505 | YG-PR1054 |
| 7 | 3-17/32 - 4-1/2 | 10-3/4 | 12-7/8 | 15-11/16 | 21-5/16 | #5 | 1/2 | YG-P03705 | |
Prices are pulled from our database in real time. Press Add button to see product price.
Intermediate Length Straight Shank Holder- Straight Flute
| A | B | C | D | E | Shank | |||||
| Series | Allied Ref. Number |
Drill Insert Range |
Max. Drill Depth |
Flute Length |
Ref. Length |
OAL | Dia. | Length | Pipe Tap |
Part Number |
| 1 | 23010S - 100L | 45/64" - 15/16 | 4-5/8 | 5-7/8 | 6-1/64 | 8-7/8 | 1 | 3 | 1/8 | YG-P14102 |
| 1.5 | 23015S - 100L | 55/64" - 15/16 | 4-5/8 | 5-7/8 | 6-1/64 | 8-7/8 | 1 | 3 | 1/8 | YG-P14152 |
| 2 | 23020S - 125L | 31/32" - 1-3/8 | 5-3/8 | 6-1/2 | 6-41/64 | 10 | 1-1/4 | 3-1/2 | 1/8 | YG-P14203 |
| 2.5 | 23025S - 125L | 1-3/16" - 1-3/8 | 5-3/8 | 6-1/2 | 6-41/64 | 10 | 1-1/4 | 3-1/2 | 1/8 | YG-P14253 |
| 3 | 23030S - 150L | 1-13/32" - 1-7/8 | 6-1/2 | 7-3/4 | 7-15/16 | 11-3/4 | 1-1/2 | 4 | 1/4 | YG-P14304 |
