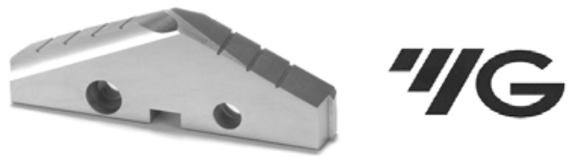

Spade Drill Inserts - Carbide

“THROW AWAY” SPADE DRILL INSERTS
Carbide
Grade Information:

C-5- Steel Cutting
C-3- Cast Iron
C-2- Ductile Iron, Stainless Steel, Aluminum, Exotic Alloys

ALLIED® “TA” Series Compatible!
Prices Are 50% Below Mfg’s List!

Prices are pulled from our database in real time. Press Add button to see product price.

Series Min-Max	Inch Dia	Metric Dia	Dec Dia	TiN C2 Part Number	TIALN C2 Part Number	TIN C5 Part Number	TIALN C5 Part Number
Series Y Carbide Inserts
Y 9.5mm (.374") to 11.07mm (.436") 3/32 Thick		9.5	.3740	YG-S21Y01	YG-S23Y01	YG-S26Y01	YG-S28Y01
	3/8	9.53	.3750	YG-S21Y02	YG-S23Y02	YG-S26Y02	YG-S28Y02
		9.8	.3860	YG-S21Y03	YG-S23Y03	YG-S26Y03	YG-S28Y03
	25/64	9.92	.3906	YG-S21Y04	YG-S23Y04	YG-S26Y04	YG-S28Y04
		10	.3937	YG-S21Y05	YG-S23Y05	YG-S26Y05	YG-S28Y05
		10.2	.4016	YG-S21Y06	YG-S23Y06	YG-S26Y06	YG-S28Y06
	13/32	10.32	.4063	YG-S21Y07	YG-S23Y07	YG-S26Y07	YG-S28Y07
		10.5	.4134	YG-S21Y08	YG-S23Y08	YG-S26Y08	YG-S28Y08
	27/64	10.72	.4219	YG-S21Y09	YG-S23Y09	YG-S26Y09	YG-S28Y09
		10.8	.4252	YG-S21Y10	YG-S23Y10	YG-S26Y10	YG-S28Y10
		11	.4331	YG-S21Y11	YG-S23Y11	YG-S26Y11	YG-S28Y11
Series Z Carbide Inserts
Z 11.11mm (.437") to 12.95 (.510) 3/32 Thick	7/16	11.11	.4375	YG-S21Z01	YG-S23Z01	YG-S26Z01	YG-S28Z01
		11.5	.4528	YG-S21Z02	YG-S23Z02	YG-S26Z02	YG-S28Z02
	29/64	11.51	.4531	YG-S21Z03	YG-S23Z03	YG-S26Z03	YG-S28Z03
	15/32	11.91	.4688	YG-S21Z04	YG-S23Z04	YG-S26Z04	YG-S28Z04
		12	.4724	YG-S21Z05	YG-S23Z05	YG-S26Z05	YG-S28Z05
	31/64	12.3	.4844	YG-S21Z06	YG-S23Z06	YG-S26Z06	YG-S28Z06
		12.5	.4921	YG-S21Z07	YG-S23Z07	YG-S26Z07	YG-S28Z07
	1/2	12.7	.5000	YG-S21Z08	YG-S23Z08	YG-S26Z08	YG-S28Z08
Series 0 Carbide Inserts
0 12.98 (.511") to 17.65 (.695") 1/8 Thick		13	.5118	YG-S21001	YG-S23001	YG-S26001	YG-S28001
	33/64	13.1	.5156	YG-S21002	YG-S23002	YG-S26002	YG-S28002
	17/32	13.49	.5313	YG-S21003	YG-S23003	YG-S26003	YG-S28003
		13.5	.5315	YG-S21004	YG-S23004	YG-S26004	YG-S28004
	35/64	13.89	.5469	YG-S21060	YG-S23060	YG-S26060	YG-S28060
		14	.5512	YG-S21005	YG-S23005	YG-S26005	YG-S28005
	9/16	14.29	.5625	YG-S21006	YG-S23006	YG-S26006	YG-S28006
		14.5	.5709	YG-S21007	YG-S23007	YG-S26007	YG-S28007
	37/64	14.68	.5781	YG-S21008	YG-S23008	YG-S26008	YG-S28008
		15	.5906	YG-S21009	YG-S23009	YG-S26009	YG-S28009
	19/32	15.08	.5938	YG-S21010	YG-S23010	YG-S26010	YG-S28010
	39/64	15.48	.6094	YG-S21061	YG-S23061	YG-S26061	YG-S28061
		15.5	.6102	YG-S21011	YG-S23011	YG-S26011	YG-S28011
		15.7	.6181	YG-S21064	YG-S23064	YG-S26064	YG-S28064
	5/8	15.88	.6250	YG-S21012	YG-S23012	YG-S26012	YG-S28012
		16	.6299	YG-S21013	YG-S23013	YG-S26013	YG-S28013
	41/64	16.27	.6406	YG-S21062	YG-S23062	YG-S26062	YG-S28062
		16.5	.6496	YG-S21014	YG-S23014	YG-S26014	YG-S28014
	21/32	16.67	.6563	YG-S21015	YG-S23015	YG-S26015	YG-S28015
		17	.6693	YG-S21016	YG-S23016	YG-S26016	YG-S28016
	43/64	17.07	.6719	YG-S21063	YG-S23063	YG-S26063	YG-S28063
	11/16	17.46	.6875	YG-S21017	YG-S23017	YG-S26017	YG-S28017
		17.5	.6890	YG-S21018	YG-S23018	YG-S26018	YG-S28018
Series 1 Carbide Inserts
1 17.53 (.690") to 24.38 (.960") 5/32 Thick	45/64	17.68	.7031	YG-S21101	YG-S23101	YG-S26101	YG-S28101
		18	.7087	YG-S21102	YG-S23102	YG-S26102	YG-S28102
	23/32	18.26	.7188	YG-S21103	YG-S23103	YG-S26103	YG-S28103
		18.5	.7283	YG-S21104	YG-S23104	YG-S26104	YG-S28104
	47/64	18.65	.7344	YG-S21105	YG-S23105	YG-S26105	YG-S28105
		19	.7480	YG-S21106	YG-S23106	YG-S26106	YG-S28106
	3/4	19.05	.7500	YG-S21107	YG-S23107	YG-S26107	YG-S28107
	49/64	19.45	.7656	YG-S21108	YG-S23108	YG-S26108	YG-S28108
		19.5	.7677	YG-S21109	YG-S23109	YG-S26109	YG-S28109
	25/32	19.84	.7813	YG-S21110	YG-S23110	YG-S26110	YG-S28110
		20	.7874	YG-S21111	YG-S23111	YG-S26111	YG-S28111
	51/64	20.24	.7969	YG-S21160	YG-S23160	YG-S26160	YG-S28160
		20.5	.8071	YG-S21112	YG-S23112	YG-S26112	YG-S28112
	13/16	20.64	.8125	YG-S21113	YG-S23113	YG-S26113	YG-S28113
		21	.8268	YG-S21114	YG-S23114	YG-S26114	YG-S28114
	27/32	21.43	.8438	YG-S21115	YG-S23115	YG-S26115	YG-S28115
	55/64	21.83	.8594	YG-S21161	YG-S23161	YG-S26161	YG-S28161
		22	.8661	YG-S21116	YG-S23116	YG-S26116	YG-S28116
	7/8	22.23	.8750	YG-S21117	YG-S23117	YG-S26117	YG-S28117
	57/64	22.62	.8906	YG-S21162	YG-S23162	YG-S26162	YG-S28162
		23	.9055	YG-S21118	YG-S23118	YG-S26118	YG-S28118
	29/32	23.02	.9063	YG-S21119	YG-S23119	YG-S26119	YG-S28119
	59/64	23.42	.9219	YG-S21120	YG-S23120	YG-S26120	YG-S28120
	15/16	23.81	.9375	YG-S21121	YG-S23121	YG-S26121	YG-S28121
		24	.9449	YG-S21122	YG-S23122	YG-S26122	YG-S28122
Series 2 Carbide Inserts
2 24.41 (.961") to 35.05 (1.380") 3/16 Thick	31/32	24.61	.9688	YG-S21201	YG-S23201	YG-S26201	YG-S28201
	63/64	25	.9843	YG-S21202	YG-S23202	YG-S26202	YG-S28202
	1	25.4	1.000	YG-S21203	YG-S23203	YG-S26203	YG-S28203
	1-1/64	25.8	1.0156	YG-S21204	YG-S23204	YG-S26204	YG-S28204
		26	1.0236	YG-S21205	YG-S23205	YG-S26205	YG-S28205
	1-1/32	26.19	1.0313	YG-S21206	YG-S23206	YG-S26206	YG-S28206
	1-3/64	26.59	1.0469	YG-S21260	YG-S23260	YG-S26260	YG-S28260
	1-1/16	26.99	1.0625	YG-S21207	YG-S23207	YG-S26207	YG-S28207
		27	1.0630	YG-S21208	YG-S23208	YG-S26208	YG-S28208
	1-3/32	27.78	1.0938	YG-S21209	YG-S23209	YG-S26209	YG-S28209
		28	1.1024	YG-S21210	YG-S23210	YG-S26210	YG-S28210
	1-7/64	28.18	1.1094	YG-S21261	YG-S23261	YG-S26261	YG-S28261
	1-1/8	28.58	1.1250	YG-S21211	YG-S23211	YG-S26211	YG-S28211
		29	1.1417	YG-S21212	YG-S23212	YG-S26212	YG-S28212
	1-5/32	29.37	1.1563	YG-S21213	YG-S23213	YG-S26213	YG-S28213
		30	1.1811	YG-S21214	YG-S23214	YG-S26214	YG-S28214
	1-3/16	30.16	1.1875	YG-S21215	YG-S23215	YG-S26215	YG-S28215
	1-7/32	30.96	1.2188	YG-S21216	YG-S23216	YG-S26216	YG-S28216
		31	1.2205	YG-S21217	YG-S23217	YG-S26217	YG-S28217
	1-1/4	31.75	1.2500	YG-S21218	YG-S23218	YG-S26218	YG-S28218
		32	1.2598	YG-S21219	YG-S23219	YG-S26219	YG-S28219
	1-9/32	32.54	1.2813	YG-S21220	YG-S23220	YG-S26220	YG-S28220
		33	1.2992	YG-S21221	YG-S23221	YG-S26221	YG-S28221
	1-5/16	33.34	1.3125	YG-S21222	YG-S23222	YG-S26222	YG-S28222
		34	1.3386	YG-S21223	YG-S23223	YG-S26223	YG-S28223
	1-11/32	34.13	1.3438	YG-S21224	YG-S23224	YG-S26224	YG-S28224
	1-3/8	34.93	1.3750	YG-S21225	YG-S23225	YG-S26225	YG-S28225
		35	1.3780	YG-S21226	YG-S23226	YG-S26226	YG-S28226
Series 3 Carbide Inserts
3 1.353 to 1.882 1/4 Thick	1-13/32	35.72	1.4063	YG-S21301	YG-S23301	YG-S26301	YG-S28301
		36	1.4173	YG-S21302	YG-S23302	YG-S26302	YG-S28302
	1-7/16	36.51	1.4375	YG-S21303	YG-S23303	YG-S26303	YG-S28303
		37	1.4567	YG-S21304	YG-S23304	YG-S26304	YG-S28304
	"1-15/32	37.31	1.4688	YG-S21305	YG-S23305	YG-S26305	YG-S28305
		38	1.4961	YG-S21306	YG-S23306	YG-S26306	YG-S28306
	1-1/2	38.1	1.5000	YG-S21307	YG-S23307	YG-S26307	YG-S28307
	1-17/32	38.89	1.5313	YG-S21308	YG-S23308	YG-S26308	YG-S28308
		39	1.5354	YG-S21309	YG-S23309	YG-S26309	YG-S28309
	1-9/16	40.48	1.5938	YG-S21310	YG-S23310	YG-S26310	YG-S28310
		40	1.5748	YG-S21311	YG-S23311	YG-S26311	YG-S28311
	1-19/32	40.48	1.5938	YG-S21312	YG-S23312	YG-S26312	YG-S28312
		41	1.6142	YG-S21313	YG-S23313	YG-S26313	YG-S28313
	1-5/8	41.28	1.6250	YG-S21314	YG-S23314	YG-S26314	YG-S28314
		42	1.6535	YG-S21315	YG-S23315	YG-S26315	YG-S28315
	1-21/32	42.07	1.6563	YG-S21316	YG-S23316	YG-S26316	YG-S28316
	1-11/16	42.86	1.6875	YG-S21317	YG-S23317	YG-S26317	YG-S28317
		43	1.6929	YG-S21318	YG-S23318	YG-S26318	YG-S28318
	1-23/32	43.66	1.7188	YG-S21319	YG-S23319	YG-S26319	YG-S28319
		44	1.7323	YG-S21320	YG-S23320	YG-S26320	YG-S28320
	1-3/4	44.45	1.7500	YG-S21321	YG-S23321	YG-S26321	YG-S28321
		45	1.7717	YG-S21322	YG-S23322	YG-S26322	YG-S28322
	1-25/32	45.24	1.7813	YG-S21323	YG-S23323	YG-S26323	YG-S28323
		46	1.8110	YG-S21324	YG-S23324	YG-S26324	YG-S28324
	1-13/16	4.04	1.8125	YG-S21325	YG-S23325	YG-S26325	YG-S28325
	1-27/32	46.83	1.8438	YG-S21326	YG-S23326	YG-S26326	YG-S28326
		47	1.8504	YG-S21327	YG-S23327	YG-S26327	YG-S28327
	1-7/8	47.63	1.8750	YG-S21328	YG-S23328	YG-S26328	YG-S28328
