Tool Blocks for Part-Off Blades

CUT-OFF TOOL BLOCKS
Slot Grip block toolholders are designed to hold Slot Grip and competitive cut-off blades firm and secure using a wedge locking system. Center height of the cutting edge and shank height are equal to allow easy set-up. Block toolholders are available in a wide range of sizes and are available in either a two piece design for versatility or one piece design for economy.

• For manual lathes
• For CNC turning centers
• Wedge locking system

Blade and Inserts Sold Separately Prices are pulled from our database in real time. Press Add button to see product price.

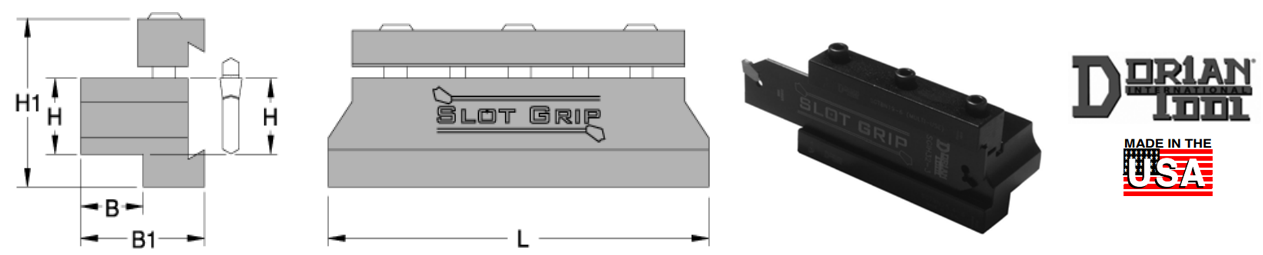

Description	H	H1	B	B1	L	Part Number	Blade Used	Screw Used
INCH
SGTBN12,7-2	0.5	1.375	0.5	1	3	DN62970 Add	_GIH19-2	A40467 10-24 x 1.0
SGTBN16-2	0.625	1.375	0.625	1	3	DN62971 Add
SGTBN16-5	0.625	1.75	0.625	1.25	3.5	DN62972 Add	_GIH26-2 Thru SGIH26-6	A40468 1/4-20 x 1-1/4
SGTBN19-5	0.75	2	0.75	1.375	3.5	DN62973 Add
SGTBN19-6	0.75	2	0.75	1.375	4.5	DN62974 Add	_GIH32-3 Thru SGIH32-9	A40469 1/4-20 x 1-1/2
SGTBN25,4-6	1	2.125	0.875	1.5	4.5	DN62975 Add
SGTBN31,8-6	1.25	2.375	1.125	1.75	4.5	DN62976 Add
SGTBN38,1-6	1.5	2.875	1.625	2.25	4.5	DN62977 Add
METRIC
SGTBN12-2	12,0	34,9	12,7	25,4	76,20	DN62978 Add	_GIH32-3 Thru SGIH32-9	A40469 1/4-20 x 1-1/2
SGTBN16-2	16,0	34,9	15,9	25,4	76,20	DN62971 Add
SGTBN16-5	16,0	44,5	15,9	31,8	88,90	DN62972 Add	_GIH26-2 Thru SGIH26-6	A40468 1/4-20 x 1-1/4
SGTBN20-5	20,0	50,8	19,1	34,9	88,90	DN62979 Add
SGTBN20-6	20,0	50,8	19,1	34,9	114,3	DN62980 Add	_GIH32-3 Thru SGIH32-9	A40469 1/4-20 x 1-1/2
SGTBN25-6	25,0	54,0	22,2	38,1	114,3	DN62981 Add
SGTBN32-6	32,0	60,3	28,6	44,5	114,3	DN62982 Add
SGTBN40-6	40,0	73,0	41,3	57,2	114,3	DN62983 Add

CUT-OFF TOOL BLOCKS

• Compatible with blades from Dorian, Newcomer and other industry standard _GIH type blades

Prices are pulled from our database in real time. Press Add button to see product price.
NGTBN

A	B	C	D	L	Use Blade	Brand	Part Number
5/8”	1-1/2”	1-5/16”	5/8”	3-7/16”	_GIH 26-2,3,4,5,6	CERATIZIT	NGTBN-16-5 Add
3/4”	1-1/2”	1-7/16”	3/4”	3-7/16”	_GIH 26-2,3,4,5,6	USST	UGTBN-19-5 Add
1”	1-7/8”	1-15/32”	25/32”	4-5/16”	_GIH 32-3,4,5,6	USST	UGTBN-25-6 Add
1-1/4”	1-7/8”	1-13/16”	1-1/8”	4-5/16”	_GIH 32-3,4,5,6,R/L-9	CERATIZIT	NGTBN-32-6 Add
1-1/2”	1-7/8”	2-27/64”	1-5/8”	4-5/16”	_GIH 32-9	CERATIZIT	NGTBN-38-6 Add

NGTBR/L

A	B	C	D	L	Use Blade	Right or Left	Brand	Part Number
1”	3/4”	3/4”	43/64”	3-7/16”	_GIH 19-2	Right	CERATIZIT	NGTBR-19-2 Add
						Left	CERATIZIT	NGTBL-19-2 Add
1-1/4”	25/32”	1”	19/32”	4-3/4”	_GIH 26- 2,3,4,5,6	Right	CERATIZIT	NGTBR-25-6 Add
						Left	CERATIZIT	NGTBL-25-6 Add
