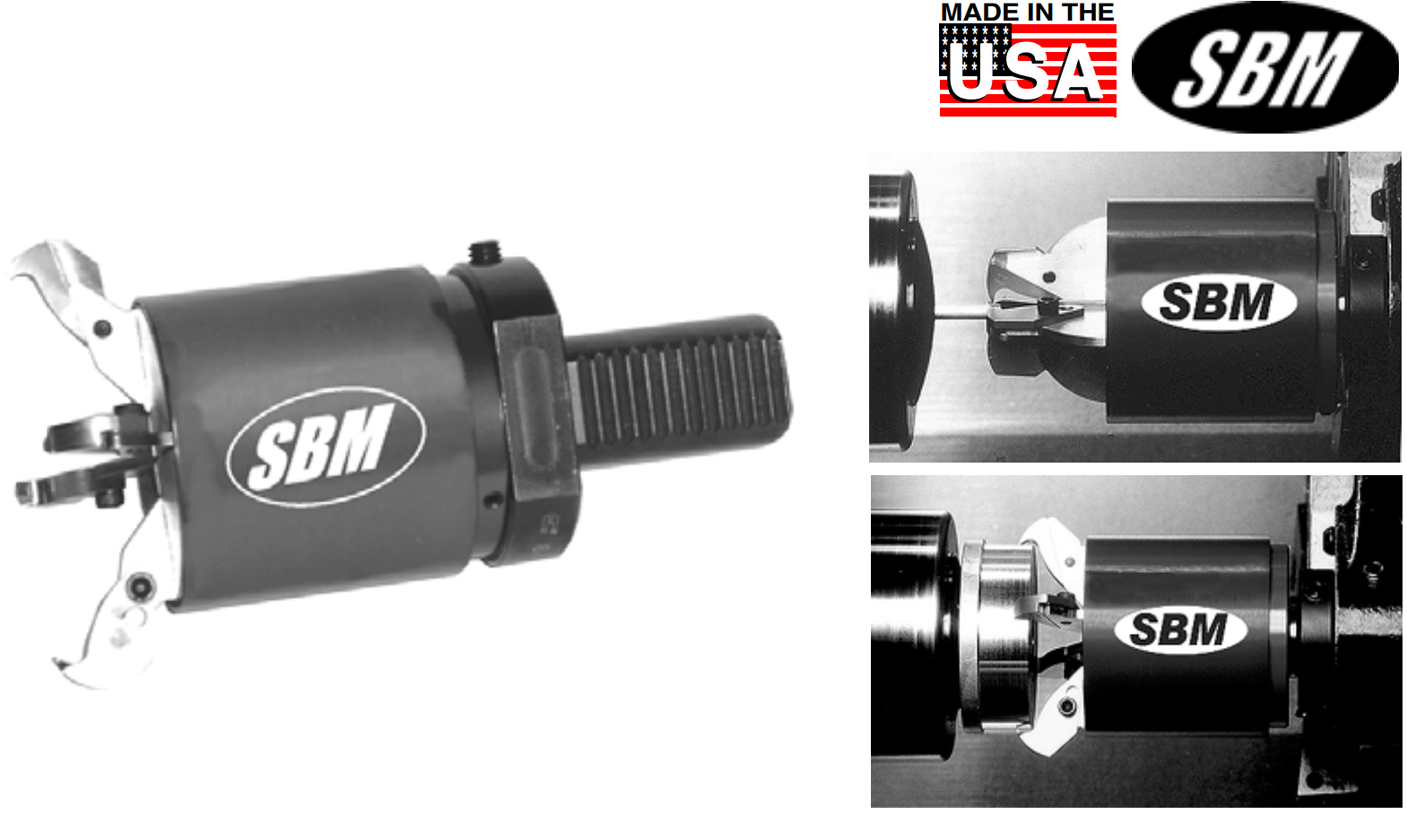

VDI Shank Bar Pullers

VDI SHANK BAR PULLERS
Coolant or Air Actuated
An Inexpensive And Simple Way To Automate Your CNC LatheAutomatically Pulls And Precisely Positions Bar Stock Through The Chuck, Eliminating Manual Loading And Unloading Of Each And Every Part!
No Down Time-machine continues to run, freeing operator to work other jobs.
Self Adjusting & Self Releasing-After initial setting, no adjustment required for different sizes, and needs only 1/4” of bar length to pull bar!
4 Fingers-Holds round and square parts. Can also hold hex and flat parts with just 2 fingers.
Pull Threaded or Delicate Material-Simply use the optional soft steel, aluminum, brass or delrin fingers.
Bar Can Be Pulled and Positioned Multiple Times for machining various sections of the part before cutoff.
Great for Sub-Spindle Lathes- use as a “pick and place” device for finished parts.
Quick Installation- comes complete with fingers and bar support collar...be “up and running” within 1 hour!
Increase your PROFITS and PRODUCTION!
RISK FREE GUARANTEE!
Use the SBM Bar Puller for 30 Days, and if you are not Completely Satisfied, you can return it for your money back...No Questions Asked!
Large Bar Puller
Description Part Number Price
VDI 30 BU-GA1000VDI-30
$599.00
VDI 40 BU-GA1000VDI-40
$599.00

SBM Bar Pullers are shipped complete with 1 set of hard steel fingers and 1 bar support collar

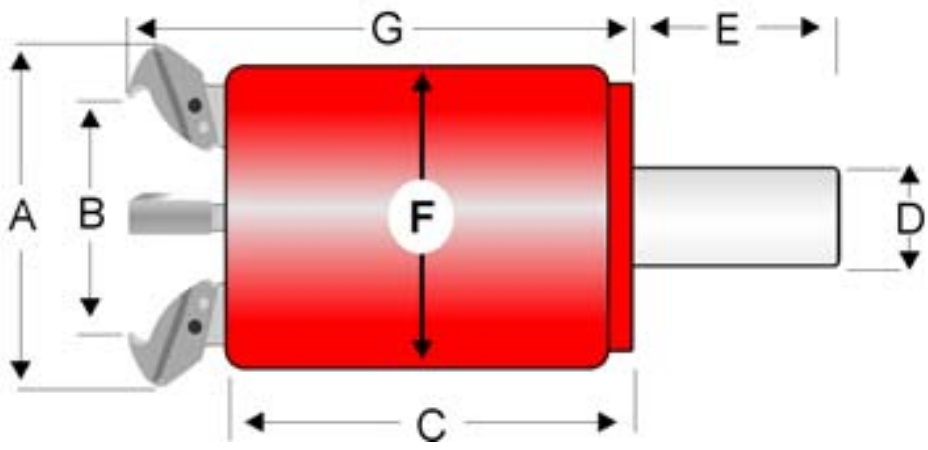

CLEARANCE DIMENSIONS
Clearance Dimensions
Size A B C D E F
VDI 30 3 5/8” 2 1/2” 2 7/8” Shank 1 3/4” 2 3/4”
VDI 40 4” 3 1/8” 2 7/8” Shank 1 3/4” 2 3/4”
