OD Turning Holders - MDJNR/L, ADJNR/L, MTANR/L

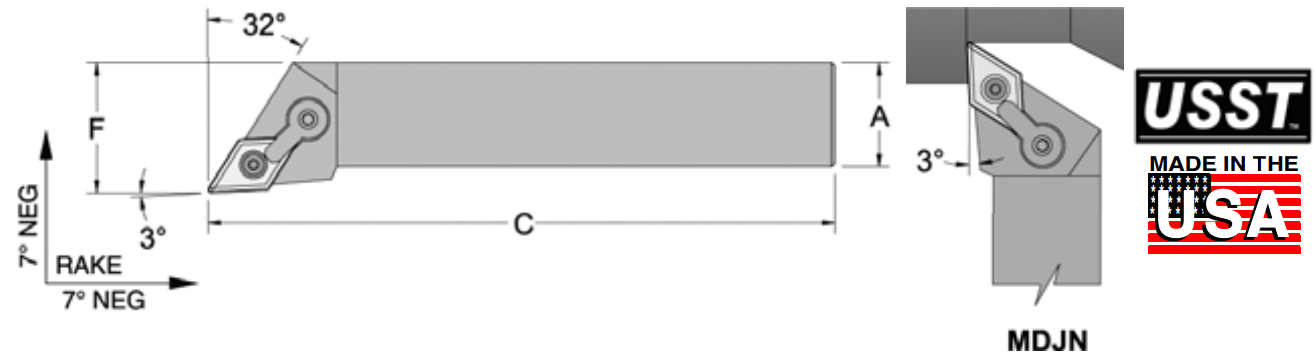

MDJNR/L
  • -3° Side Cutting
  • Offset Shank
  • Negative Rake
  • Using DNMG, DNMA, DNG_ & DNM_ type inserts
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for DNMG Inserts
EXTRA HARDWARE
Industry
Reference		 Shank
A		 OAL
C		 Right Hand
Model		 Left Hand
Model		 Inserts Seat Lock Pin Clamp Clamp Screw
MDJNR/L-124B 3/4” SQ 5 TH-1150
TH-2150
DNMG-43 IDSN-433
NL-46
CL-6
XNS-36
MDJNR/L-164D 1 “ SQ 6 TH-1155
TH-2155
DNMG-43 IDSN-433
NL-46
CL-20
XNS-48
MDJNR/L-204D 1-1/4” SQ 6 TH-1160
TH-2160
DNMG-43 IDSN-433
NL-46
CL-20
XNS-48
MDJNR/L-854D 1” X 1-1/4” 6 TH-1165
TH-2165
DNMG-43 IDSN-433
NL-46
CL-20
XNS-48

A-TYPE TOOLHOLDERS

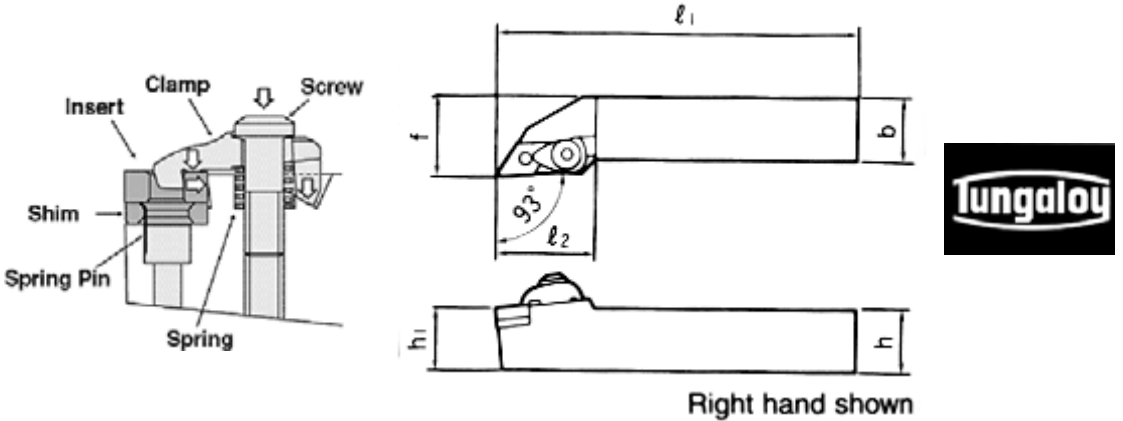

ADJNR/L
  • One action double clamping
  • Strong and positive clamping power
  • Fewer parts
  • High accuracy
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for DNMG Inserts
Right Hand
Model		 Left Hand
Model		 b h h1 r1 f Applicable
Insert		 Shim or Seat Spring Pin Spring Clamp Clamp Screw Wrench
TO-ADJNR12-3
TO-ADJNL12-3
0.75 0.75 0.75 4.5 1 DN _ _ 33 _ TO-ELSD32
TO-LSP3
TO-BP-7
TO-APS3
TO-ACS3
TO-P-3
TO-ADJNR16-3
TO-ADJNL16-3
1 1 1 6 1.25 DN _ _ 33 _ TO-ELSD32
TO-LSP3
TO-BP-7
TO-APS3
TO-ACS3
TO-P-3
TO-ADJNR12-4
TO-ADJNL12-4
0.75 0.75 0.75 4.5 1 DN _ _ 43 _ TO-LSD42
TO-LSP4
TO-BP-9
TO-ACP4
TO-ACS4
TO-P-4
TO-ADJNR16-4
TO-ADJNL16-4
1 1 1 6 1.25 DN _ _ 43 _ TO-LSD42
TO-LSP4
TO-BP-9
TO-ACP4
TO-ACS4
TO-P-4

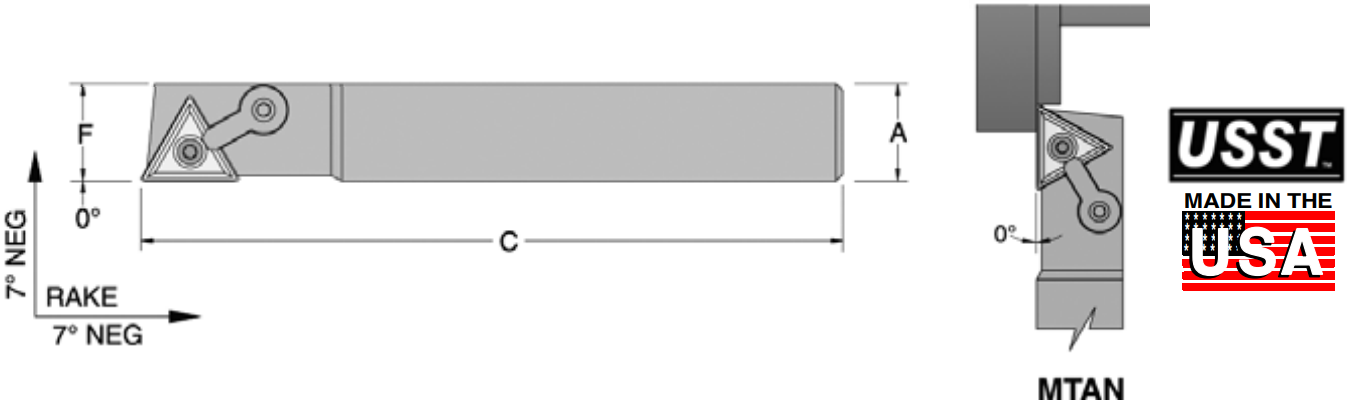

MTANR/L
  • 0° Side Cutting
  • Straight Shank
  • Negative Rake
  • Using TNMG, TNMP, TNG_ & TNM_ type inserts
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for TNMG Inserts
EXTRA HARDWARE
Industry
Reference		 Shank
A		 OAL
C		 Right Hand
Model		 Left Hand
Model		 Inserts Seat Lock Pin Clamp Clamp Screw
MTANR/L-123B 3/4” SQ 4 TH-1220
TH-2220
TNMG-33 ITSN-322
NL-34L
CL-6
XNS-36
MTANR/L-164D 1” SQ 6 TH-1225
TH-2225
TNMG-43 ITSN-433
NL-34
CL-9
XNS-59
