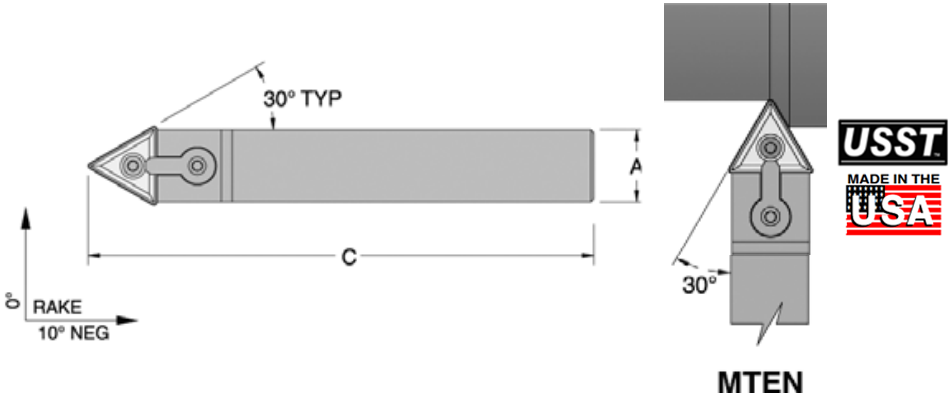

OD Turning Holders - MTENNS, MTFNR/L, MTGNR/L
- 30° Side Cutting
- Straight Shank
- Negative Rake
- Using TNMG, TNMA, TNG_ & TNM_ type inserts
Click here for TNMG Inserts
| EXTRA HARDWARE | ||||||||
 |
 |
 |
 |
 |
||||
| Industry Reference |
Shank A |
OAL C |
Neutral Hand Model |
Inserts | Seat | Lock Pin | Clamp | Clamp Screw |
| MTENN-103B | 5/8” SQ | 4 | TH-1230 | TNMG-33 | ITSN-323 | NL-34L | CL-6 | XNS-36 |
| MTENN-123B | 3/4” SQ | 4 | TH-1235 | TNMG-33 | ITSN-323 | NL-34L | CL-6 | XNS-36 |
| MTENN-124B | 3/4” SQ | 4 | TH-1240 | TNMG-43 | ITSN-433 | NL-46 | CL-9 | XNS-59 |
| MTENN-164D | 1” SQ | 6 | TH-1245 | TNMG-43 | ITSN-433 | NL-46 | CL-9 | XNS-59 |
| MTENN-853C | 1 x 1-1/4” | 6 | TH-1250 | TNMG-33 | ITSN-323 | NL-34L | CL-6 | XNS-36 |
- 0° End Cutting
- Solid Steel Bar
- Negative Rake
- Using TNMG, TNMA, TNG_ & TNM_ type inserts
Click here for TNMG Inserts
| EXTRA HARDWARE | |||||||||
|
|
|
|
|
|||||
| Industry Reference |
Shank A |
OAL C |
Right Hand Model |
Left Hand Model |
Inserts | Seat | Lock Pin | Clamp | Clamp Screw |
| MTFNR/L-123B | 3/4” SQ | 5 | TH-1255 | TH-2255 | TNMG-33 | ITSN-323 | NL-34L | CL-6 | XNS-36 |
| MTFNR/L-163C | 1” SQ | 5 | TH-1260 | TH-2260 | TNMG-33 | ITSN-323 | NL-34L | CL-6 | XNS-36 |
| MTFNR/L-164D | 1” SQ | 6 | TH-1265 | TH-2265 | TNMG-43 | ITSN-433 | NL-46 | CL-9 | XNS-510 |

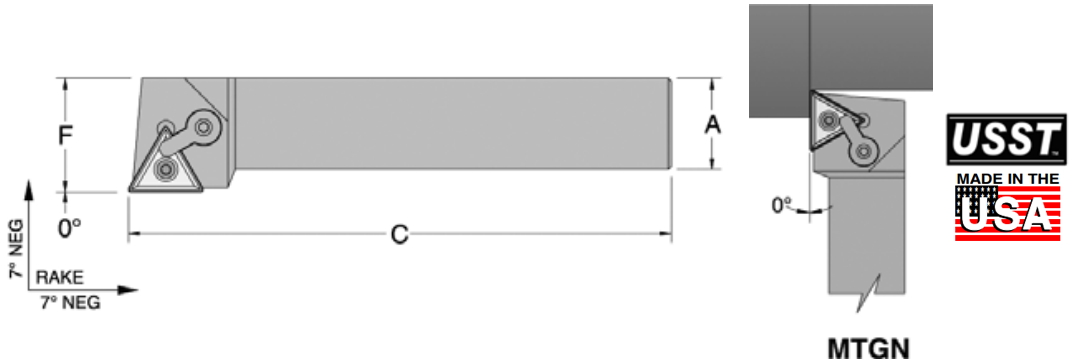

- 0° Side Cutting
- Offset Shank
- Negative Rake
- Using TNMG, TNMA, TNG_ & TNM_ type inserts
Click here for TNMG Inserts
| EXTRA HARDWARE | |||||||||
|
|
|
|
|
|||||
| Industry Reference |
Shank A |
OAL C |
Right Hand Model |
Left Hand Model |
Inserts | Seat | Lock Pin | Clamp | Clamp Screw |
| MTGNR/L-123B | 3/4” SQ | 5 | TH-1270 | TH-2270 | TNMG-33 | ITSN-323 | NL-34L | CL-6 | XNS-36 |
| MTGNR/L-163C | 1” SQ | 5 | TH-1275 | TH-2275 | TNMG-33 | ITSN-323 | NL-34L | CL-6 | XNS-36 |
| MTGNR/L-164D | 1” SQ | 6 | TH-1280 | TH-2280 | TNMG-43 | ITSN-433 | NL-46 | CL-9 | XNS-510 |
