OD Turning Holders - ATGNR/L, MTJNR/L, MVJNR/L

A-Type Toolholders

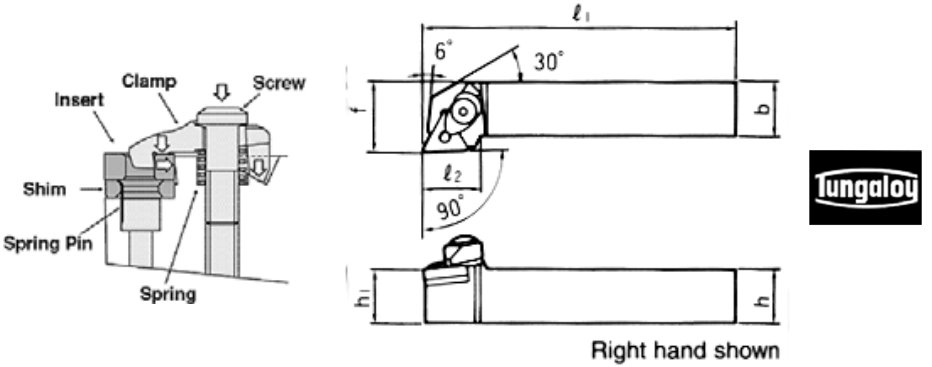

ATGNR/L
  • One action double clamping
  • Strong and positive clamping power
  • Fewer parts
  • High accuracy
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for TNMG Inserts
Right Hand
Model		 Left Hand
Model		 b h h1 r1 f Applicable
Insert		 Shim or Seat Spring Pin Spring Clamp Clamp Screw Wrench
TO-ATGNR12-3
TO-ATGNL12-3
0.75 0.75 0.75 4.5 1 TN _ _ 33 _ TO-LST317
TO-LSP3
TO-BP-7
TO-ACP3
TO-ACS3
TO-P-3
TO-ATGNR16-3
TO-ATGNL16-3
1 1 1 6 1.25 TN _ _ 33 _ TO-LST317
TO-LSP3
TO-BP-7
TO-ACP3
TO-ACS3
TO-P-3
TO-ATGNR16-4
TO-ATGNL16-4
1 1 1 6 1.25 TN _ _ 43 _ TO-LST42
TO-LSP4
TO-BP-4
TO-ACP4
TO-ACS4
TO-P-4

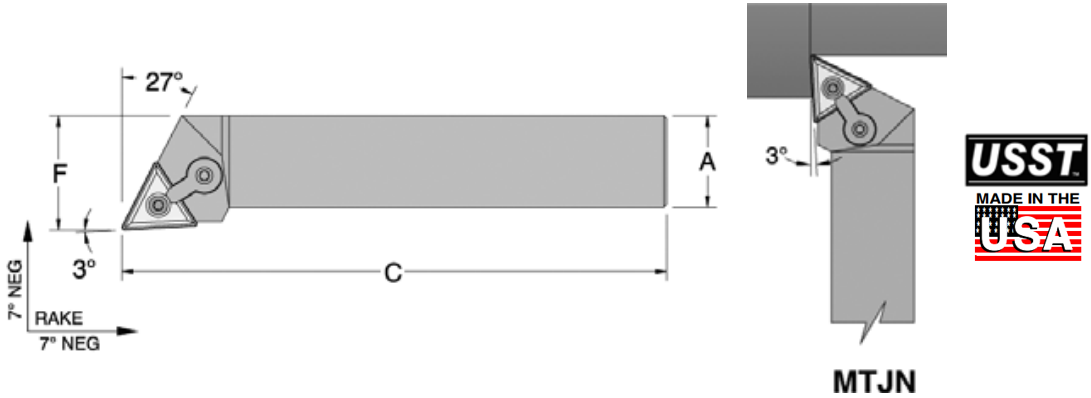

MTJNR/L
  • -3° Side Cutting
  • Offset Shank
  • Negative Rake
  • Using TNMG, TNMA, TNG_ & TNM_ type inserts
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for TNMG Inserts
EXTRA HARDWARE
Industry
Reference		 Shank
A		 OAL
C		 Right Hand
Model		 Left Hand
Model		 Inserts Seat Lock Pin Clamp Clamp Screw
MTJNR/L-123B 3/4” SQ 5 TH-1285
TH-2285
TNMG-33 ITSN-323
NL-34L
CL-6
XNS-36
MTJNR/L-164D 1” SQ 6 TH-1290
TH-2290
TNMG-43 ITSN-433
NL-46
CL-9
XNS-510
MTJNR/L-204D 1-1/4” SQ 7 TH-1295
TH-2295
TNMG-43 ITSN-433
NL-46
CL-9
XNS-510

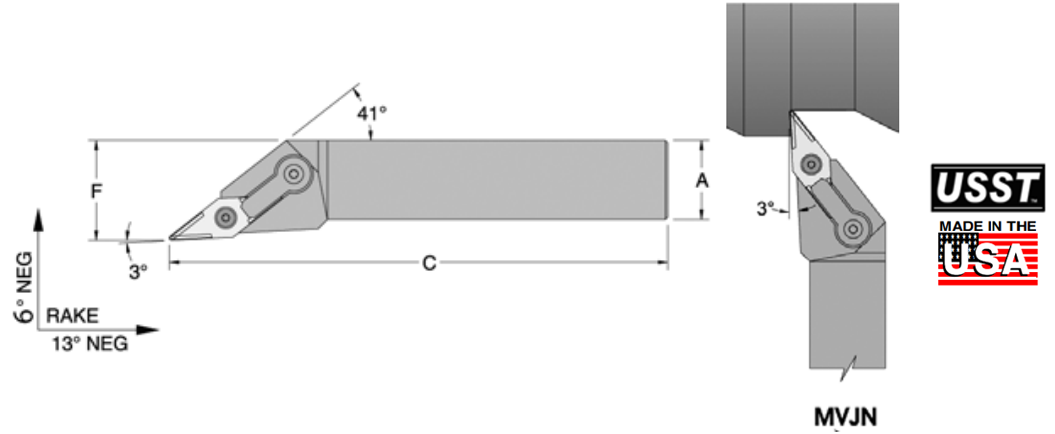

MVJNR/L
  • -3° Side Cutting
  • Offset Shank
  • Negative Rake
  • Using VNMG, VNMA, VNG_ & VNM_ type inserts
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for VNMG Inserts
EXTRA HARDWARE
Industry
Reference		 Shank
A		 OAL
C		 Right Hand
Model		 Left Hand
Model		 Inserts Seat Lock Pin Clamp Clamp Screw
MVJNR/L-123B 3/4” SQ 5 TH-1300
TH-2300
VNMG-33 IVSN-323
NL-34L
CL-30
XNS-510
MVJNR/L-163C 1” SQ 5 TH-1305
TH-2305
VNMG-33 IVSN-323
NL-34L
CL-30
XNS-510
MVJNR/L-164D 1” SQ 6 TH-1310
TH-2310
VNMG-43 IVSN-433
NL-46
CL-30
XNS-510
MVJNR/L-203D 1-1/4” SQ 6 TH-1315
TH-2315
VNMG-33 IVSN-323
NL-34L
CL-30
XNS-510
MVJNR/L-204D 1-1/4” SQ 6 TH-1320
TH-2320
VNMG-43 IVSN-433
NL-46
CL-30
XNS-510
