OD Turning Holders - MWLNR/L, AWLNR/L, SCLCR/L

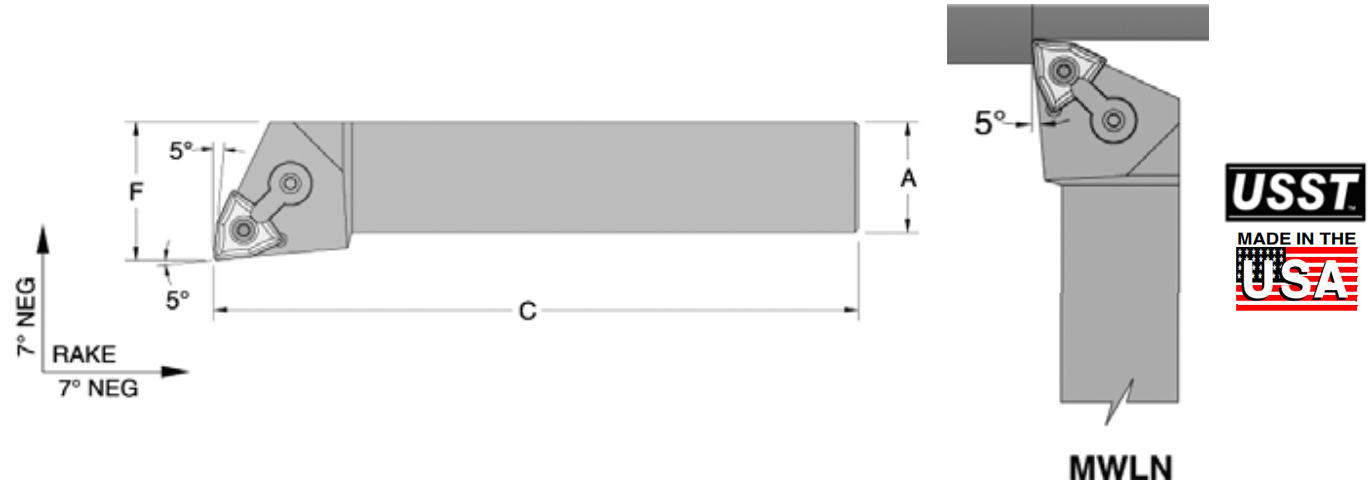

MWLNR/L
  • -5° Side & End Cutting
  • Offset Shank
  • Negative Rake
  • Using WNGG, WNMA, & WNMG type inserts
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for WNMG Inserts
EXTRA HARDWARE
Industry
Reference		 Shank
A		 OAL
C		 Right Hand
Model		 Left Hand
Model		 Inserts Seat Lock Pin Clamp Clamp Screw
MWLNR/L-123B 3/4” SQ 5 TH-1325
TH-2325
WNMG-33 IWSN-323
NL-34L
CL-6
XNS-36
MWLNR/L-124B 3/4” SQ 5 TH-1330
TH-2330
WNMG-43 IWSN-433
NL-46
CL-9
XNS-59
MWLNR/L-163C 1” SQ 6 TH-1335
TH-2335
WNMG-33 IWSN-323
NL-34L
CL-6
XNS-36
MWLNR/L-164D 1” SQ 6 TH-1340
TH-2340
WNMG-43 IWSN-433
NL-46
CL-9
XNS-59
MWLNR/L-204D 1-1/4” SQ 6 TH-1350
TH-2350
WNMG-43 IWSN-433
NL-46
CL-9
XNS-59

A-Type Toolholders

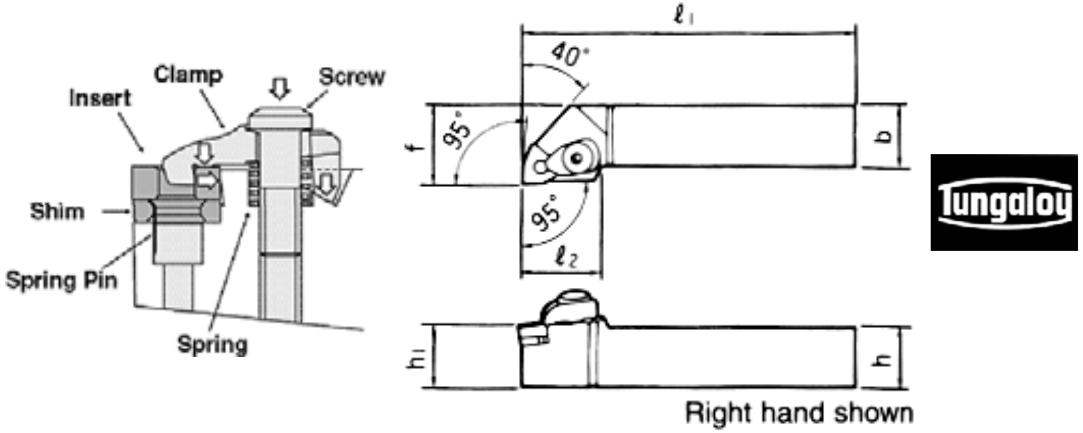

AWLNR/L
  • One action double clamping
  • Strong and positive clamping power
  • Fewer parts
  • High accuracy
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for WNMG Inserts
b h h1 r1 f Right Hand
Model		 Left Hand
Model		 Applicable
Insert		 Shim or Seat Spring Pin Spring Clamp Clamp Screw Wrench
0.75 0.75 0.75 4.5 1 TO-AWLNR12-3
TO-AWLNL12-3
WN _ _ 33 _ TO-LSW312
TO-LSP3
TO-BP-7
TO-ACP3
TO-ACS3
TO-P-3
1 1 1 6 1.25 TO-AWLNR16-3
TO-AWLNL16-3
WN _ _ 33 _ TO-LSW312
TO-LSP3
TO-BP-7
TO-ACP3
TO-ACS3
TO-P-3
0.75 0.75 0.75 4.5 1 TO-AWLNR12-4
TO-AWLNL12-4
WN _ _ 43 _ TO-LSW42
TO-LSP4
TO-BP-9
TO-ACP4
TO-ACS4
TO-P-4
1 1 1 6 1.25 TO-AWLNR16-4
TO-AWLNL16-4
WN _ _ 43 _ TO-LSW42
TO-LSP4
TO-BP-9
TO-ACP4
TO-ACS4
TO-P-4

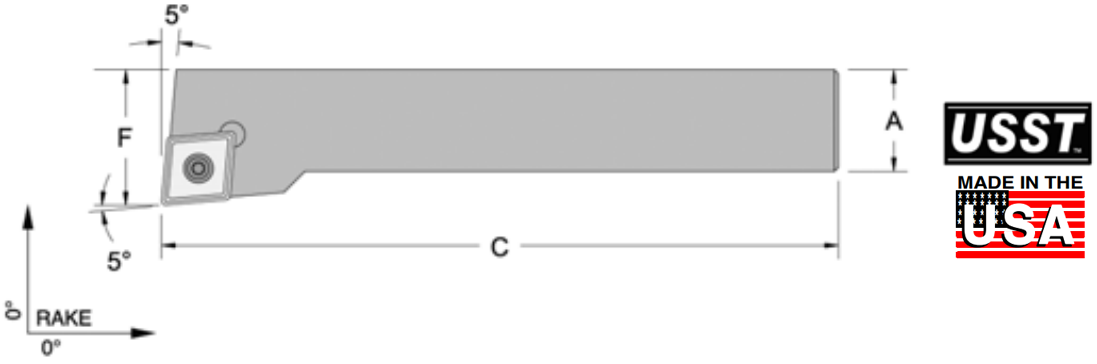

SCLCR/L
  • -5° Side & End Cutting,
  • Offset Shank
  • 7° Relief Angle, S-Lock
  • Using CCMT type inserts
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for CCMT Inserts
Industry
Reference		 Shank
A		 OAL
C		 F Right Hand
Model		 Left Hand
Model		 Uses
Inserts		 Torx Key Insert Screw
SCLCR/L L06-2J 3/8 SQ 3.5 0.500 TH-1505
TH-2505
CCMT-21.5 T-7 TS-25.45-6M1
SCLCR/L L08-3A 1/2 SQ 4.0 0.625 TH-1510
TH-2510
CCMT-32.5 T-15 TS-4.7-10M1
SCLCR/L L10-3B 5/8 SQ 4.5 0.750 TH-1515
TH-2515
CCMT-32.5 T-15 TS-4.7-10M1
SCLCR/L L12-3B 3/4 SQ 4.5 1.000 TH-1520
TH-2520
CCMT-32.5 T-15 TS-4.7-10M1
SCLCR/L L16-3D 1 SQ 6.0 1.250 TH-1525
TH-2525
CCMT-32.5 T-15 TS-4.7-10M1
